DTC C0710: Steering Angle Sensor Faulty Signal: Notes

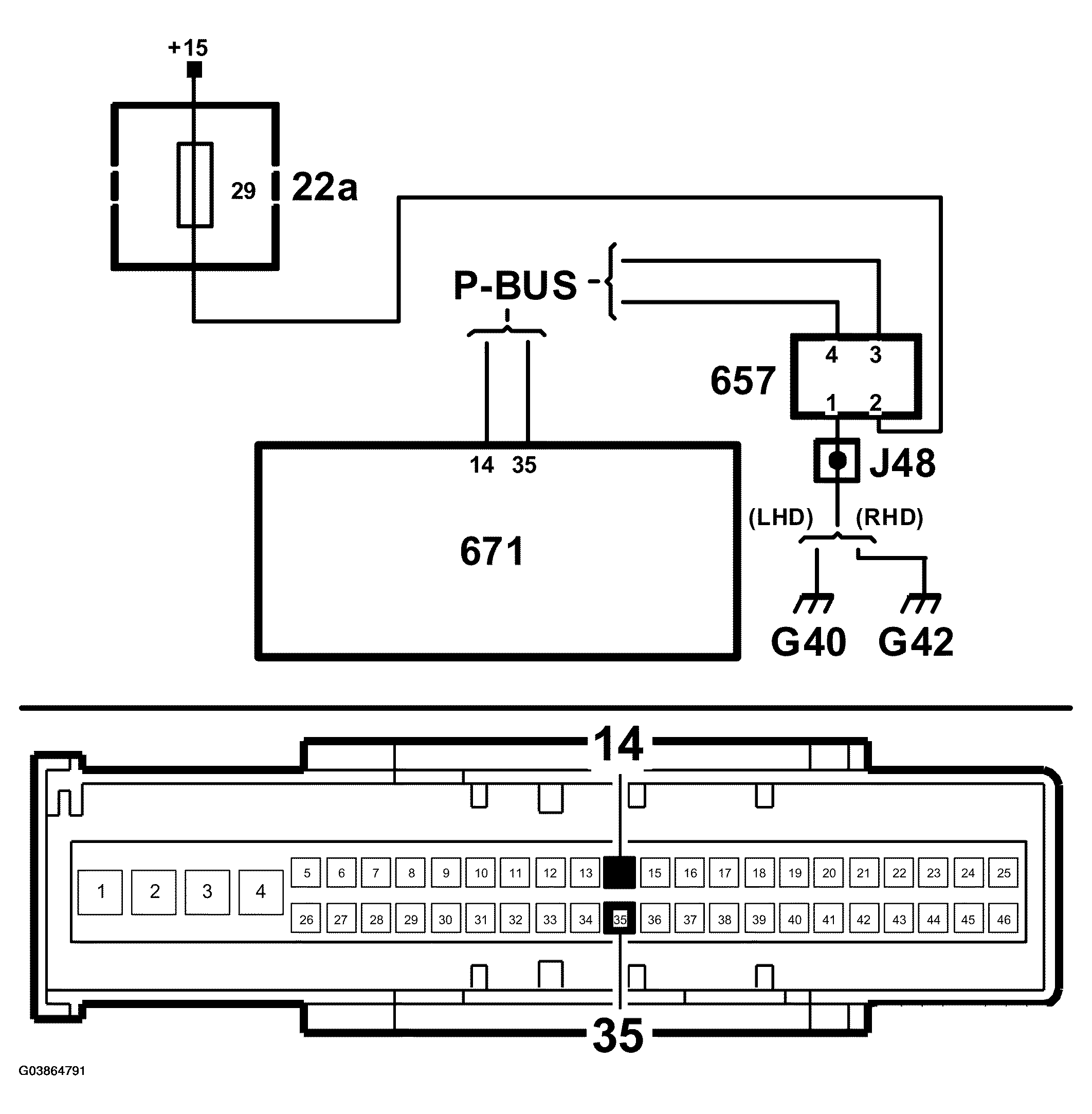

Fig 1: C0710 Steering Angle Sensor Faulty Signal Circuit Diagram
G03864791Courtesy of SAAB-SCANIA OF AMERICA, INC.
