Main Instrument Unit
>>
Technical Description
>>
System overview
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System overview

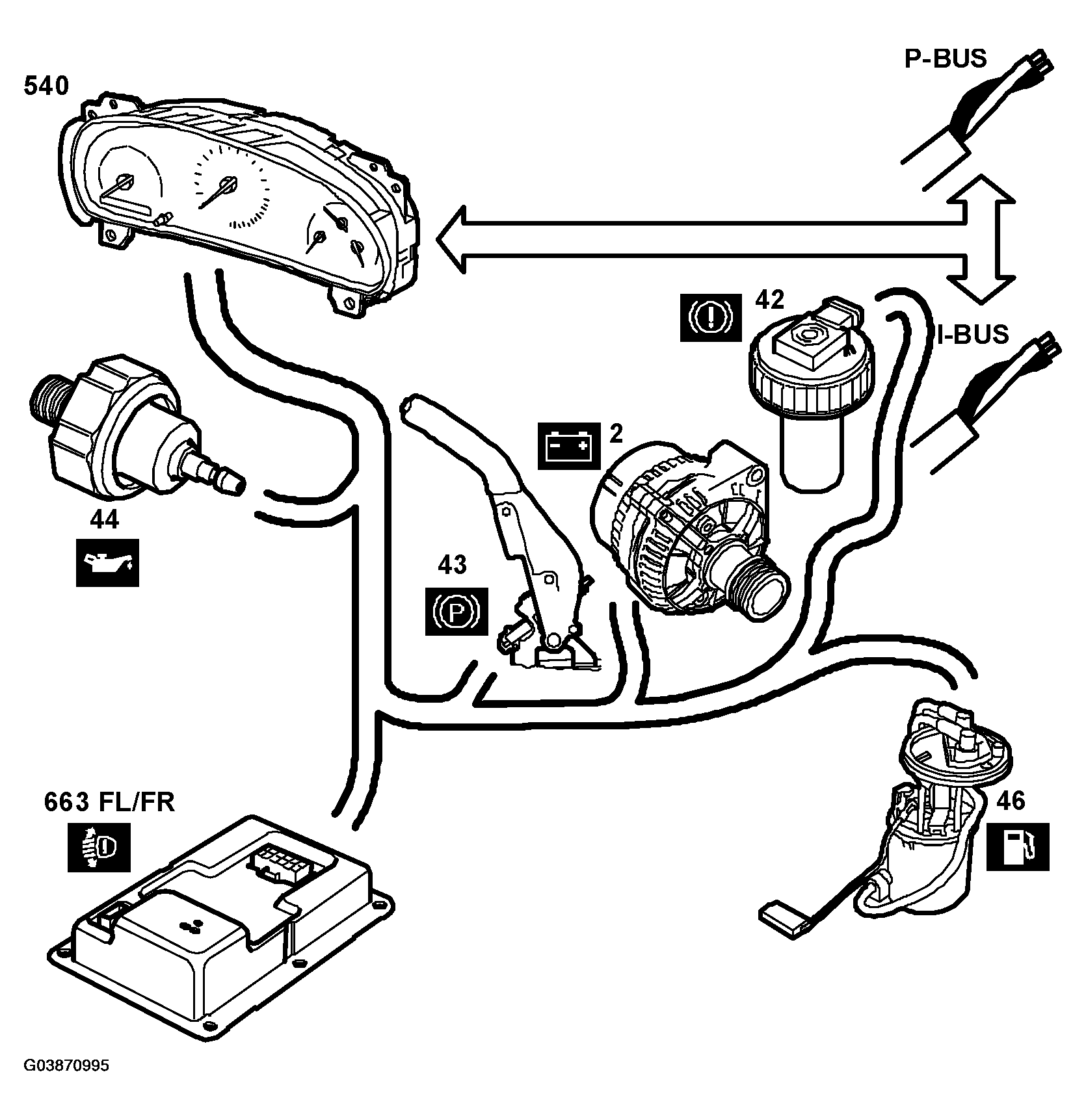

Fig 1: Main Instrument Unit System Overview
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Main instrument panel (540)
Engine oil pressure sensor (44)
Switch, handbrake (43)
Generator (2)
Level switch, brake fluid (42)
Level sensor, fuel (46)
Control module, AHL (Automatic Headlamp Levelling) (664 FL/FR)
