Connector H24-1

4-cyl petrol

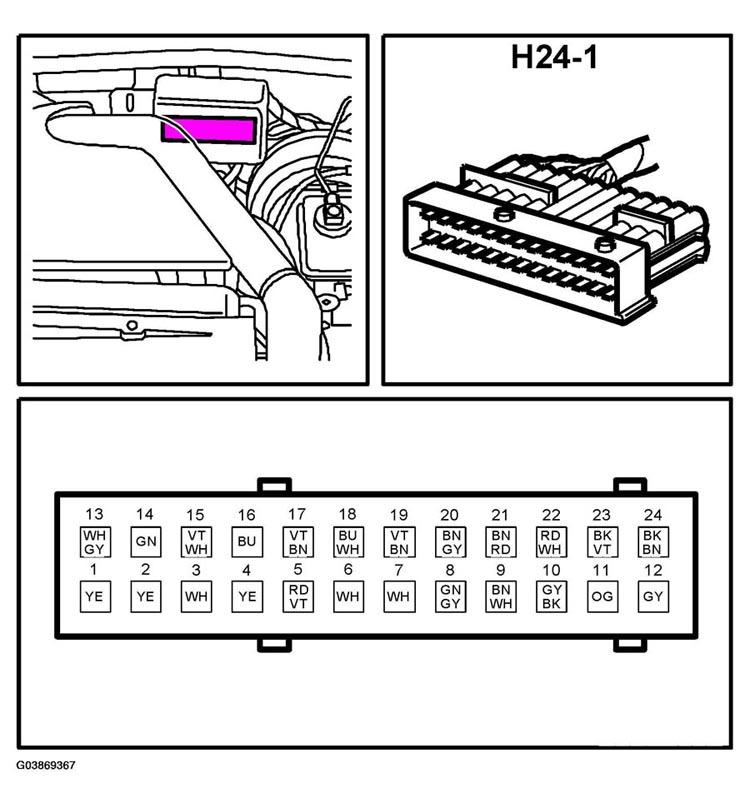

Fig 1: Identifying Connector H24-1 And Location - 4-Cyl Petrol
G03869367Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

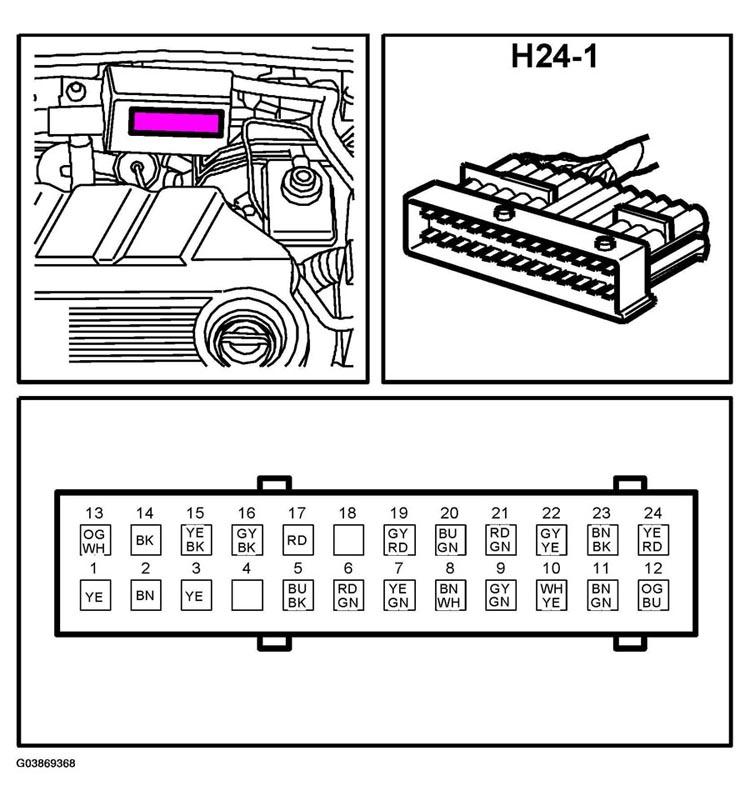

Fig 2: Identifying Connector H24-1 And Location - 4-Cyl Diesel
G03869368Courtesy of SAAB-SCANIA OF AMERICA, INC.
