Grounding Point G2: Notes

Fig 1: Identifying Grounding Point G2
G03869376Courtesy of SAAB-SCANIA OF AMERICA, INC.

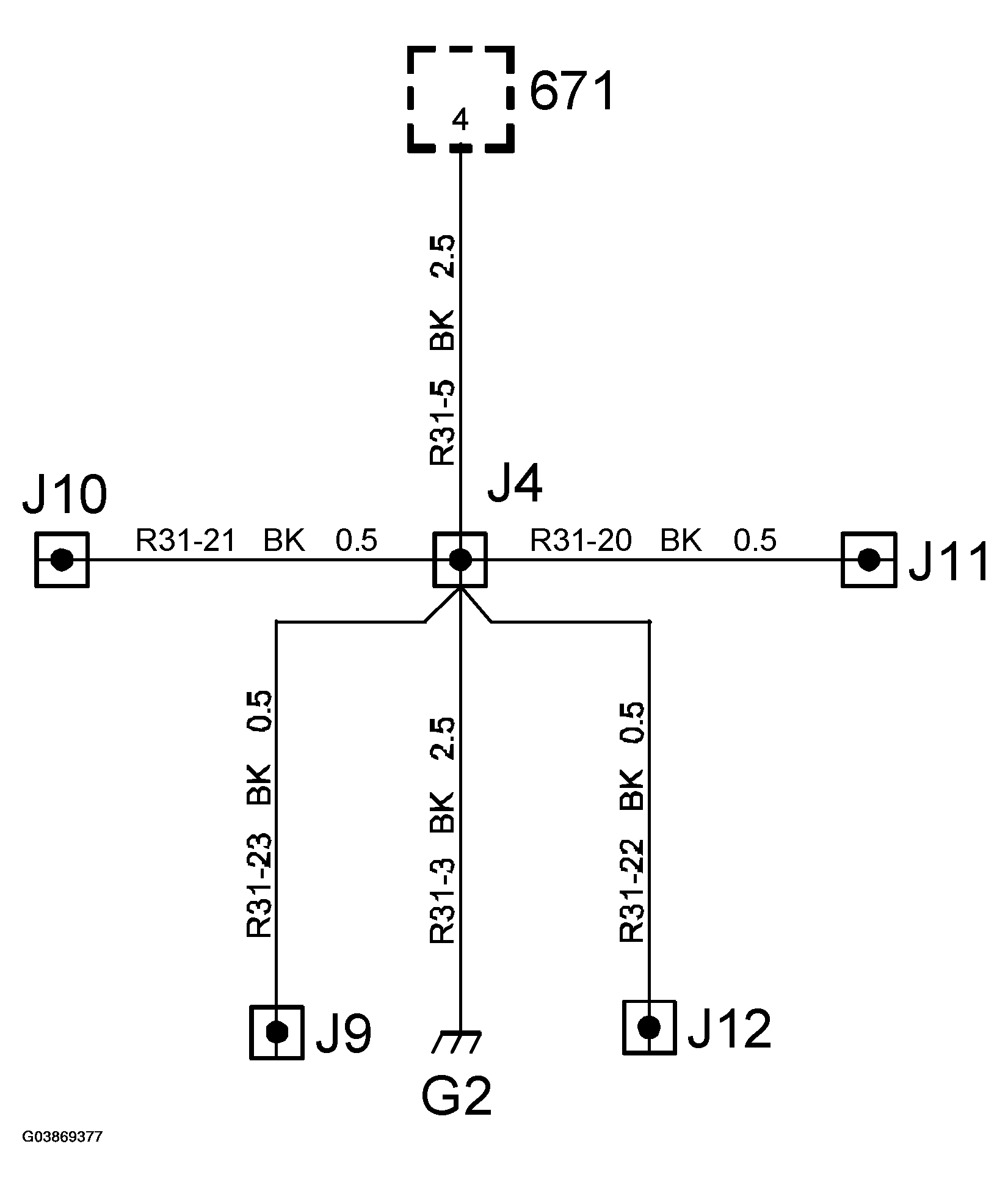

Fig 2: Grounding Point G2 Wiring Diagram
G03869377Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left-hand structural member behind headlamp (battery ground).
