General data

GENERAL DATA

Maximum variation in straightness	mm	0.10
Crankshaft end float	mm	0.08 - 0.34
Maximum journal out-of-round	mm	0.005
Maximum taper of journals	mm	0.005
Radius of main journal fillet	mm	1.65 - 1.85
Main bearing clearance	mm	0.014 - 0.062
Length	mm	539.2

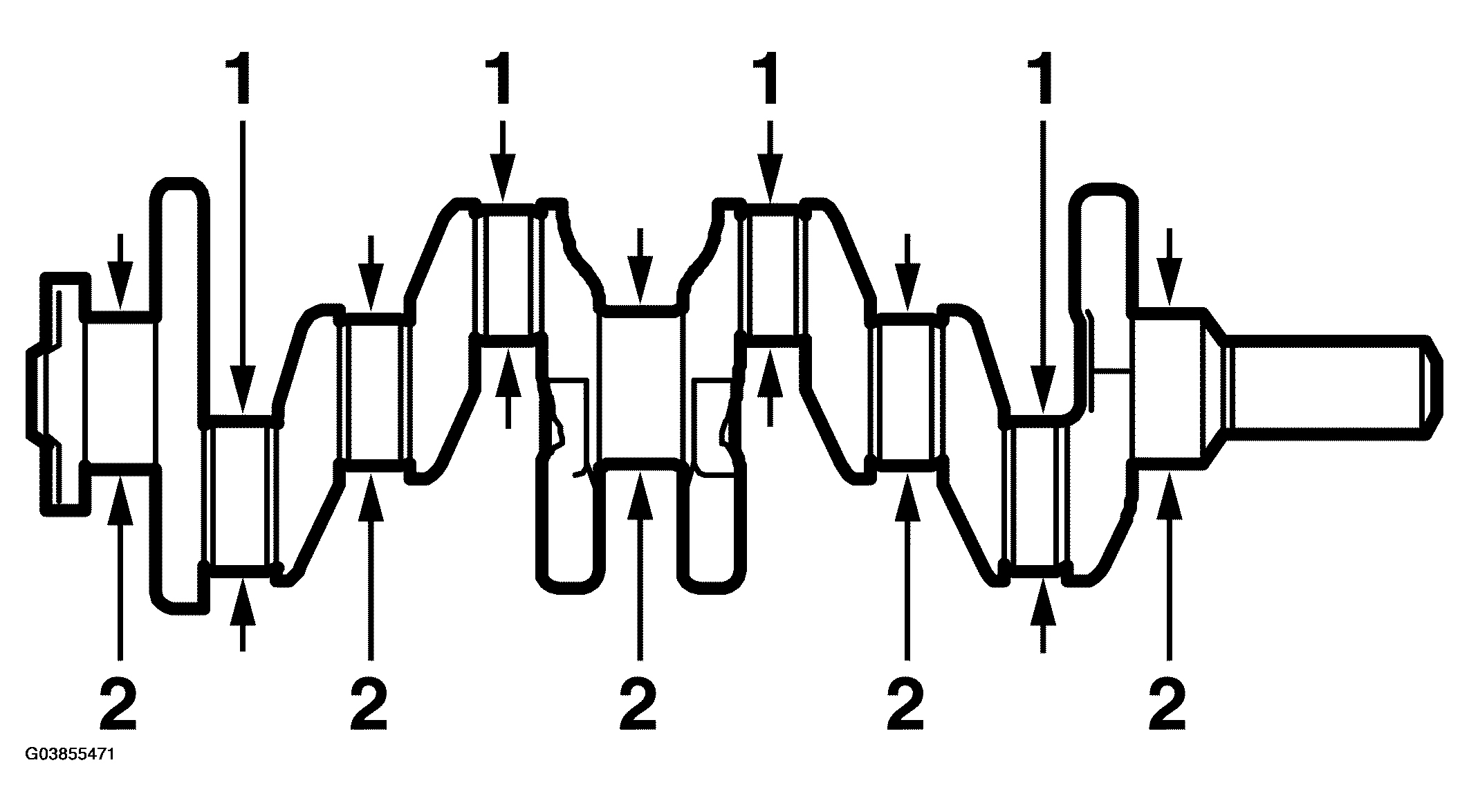

Fig 1: Locating Bearing Shells

Courtesy of SAAB-SCANIA OF AMERICA, INC.
