Injectors, Flow Capacity

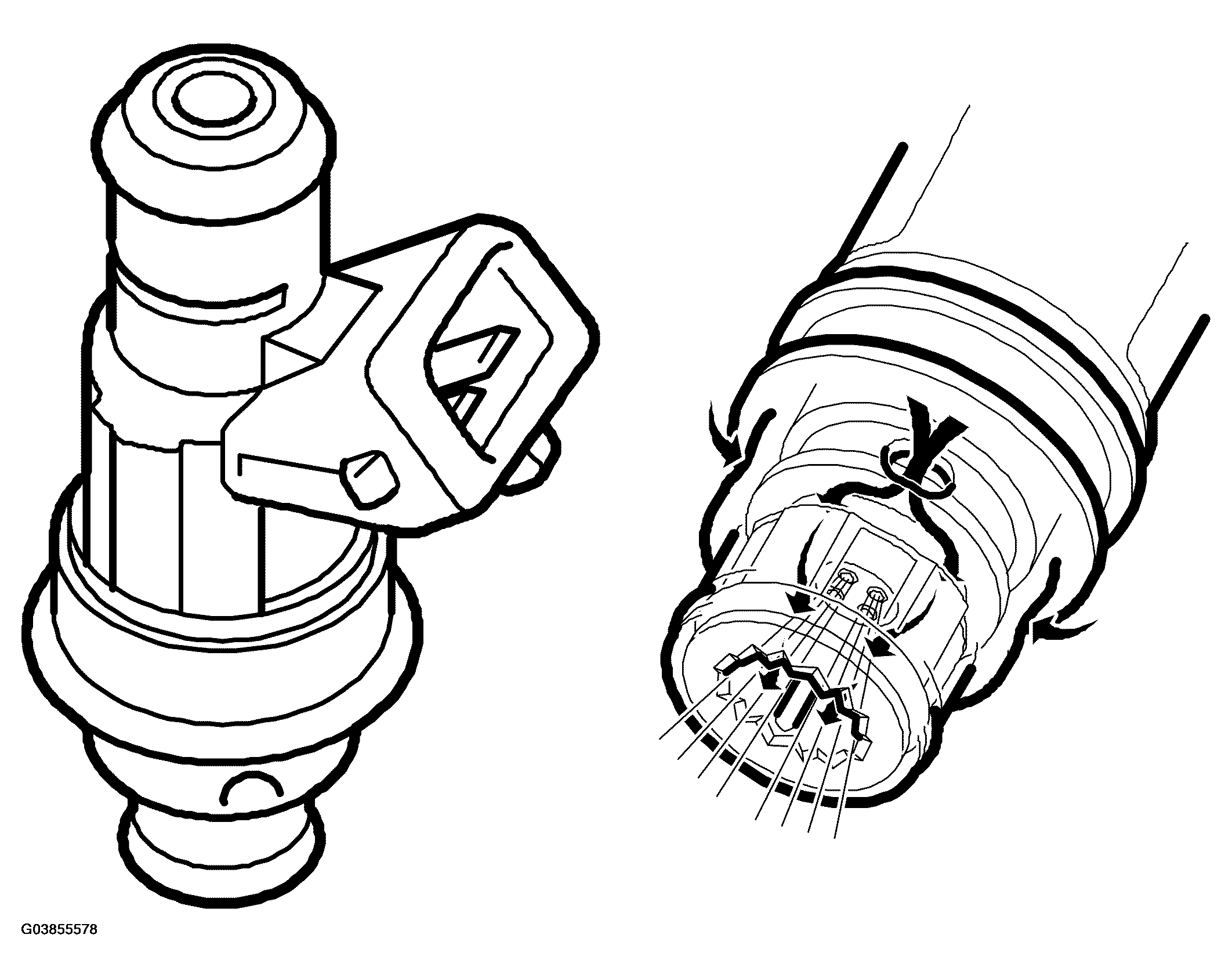

Fig 1: Identifying Injectors, Flow Capacity
G03855578Courtesy of SAAB-SCANIA OF AMERICA, INC.

4 cyl  .

FLOW CAPACITY CHART

Flow capacity ml/30s 176 +/- 7
Maximum permissible difference between injectors. ml 14
