Seat-belt warning: Notes

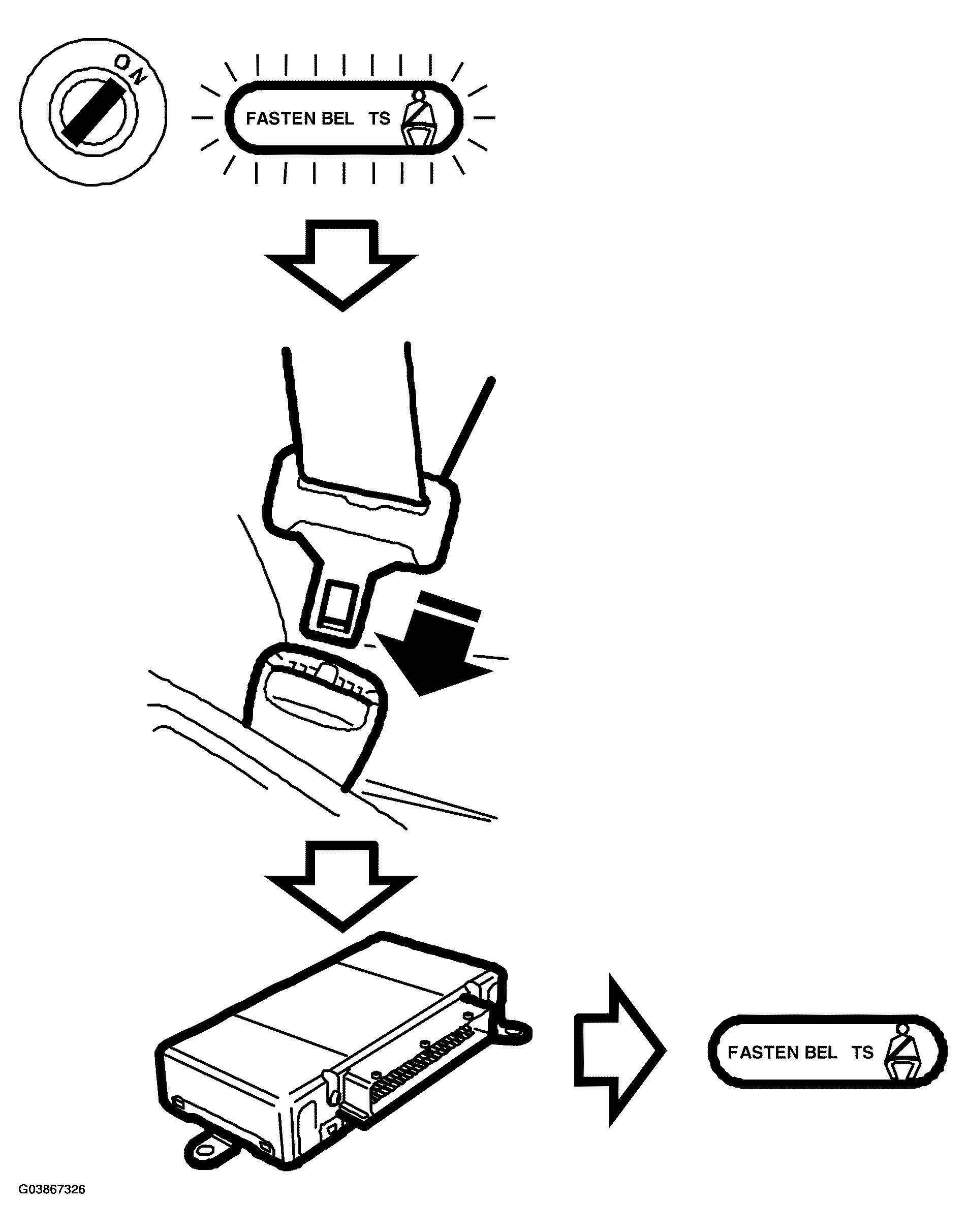

Fig 1: Identifying Seat-Belt Warning
G03867326Courtesy of SAAB-SCANIA OF AMERICA, INC.

The seatbelt reminder system monitors fastening of the driver and front passenger seatbelts.

The passenger seat contains a sensor which detects if the seat is occupied/loaded. Each seatbelt buckle has a switch which is connected to the airbag control module. If the seatbelt is not fastened, the control module sends a reminder that is indicated as follows:

The seatbelt reminder lamp lights each time the ignition is turned ON and remains on until the belts are fastened.
