Master Cylinder

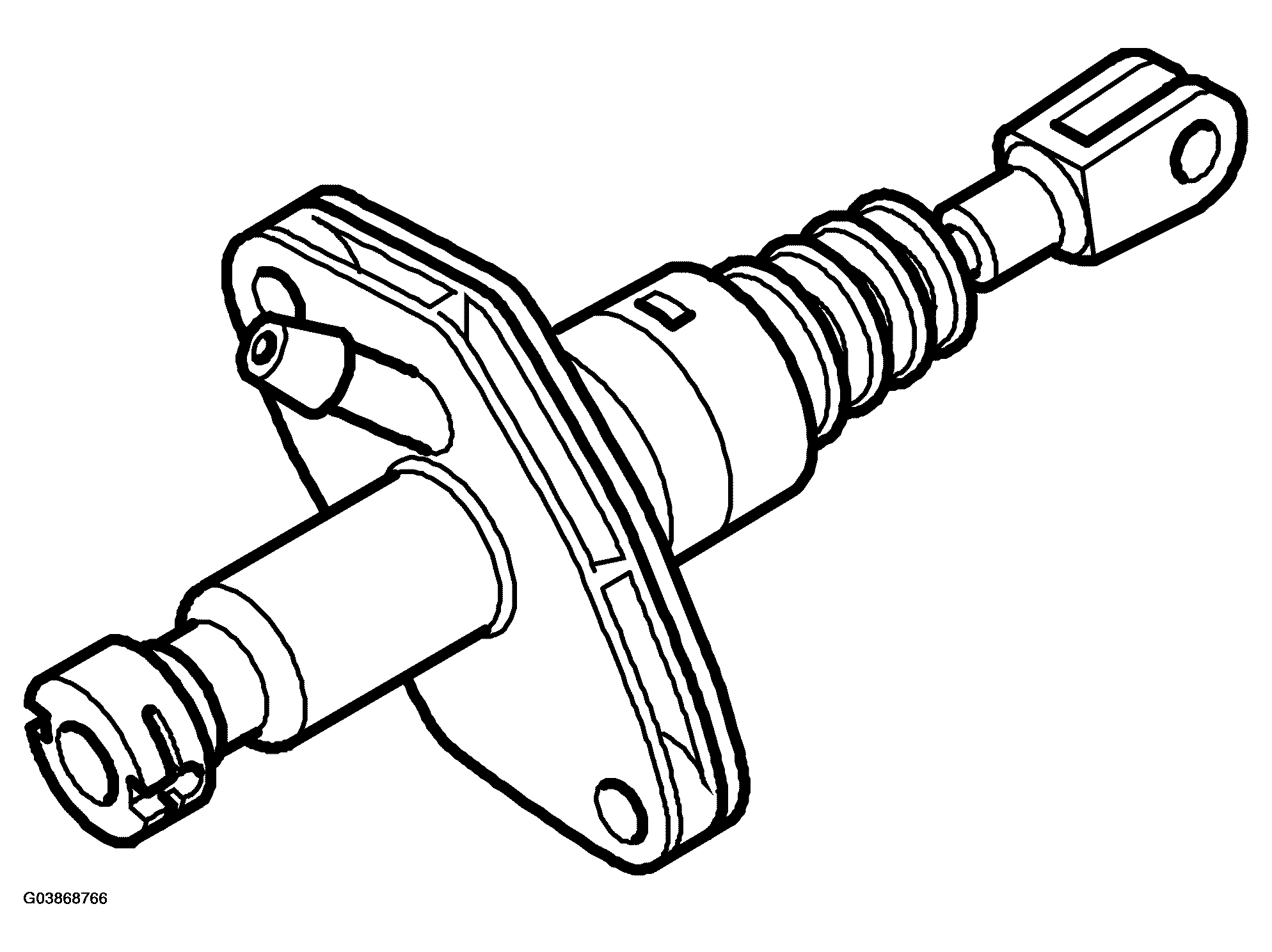

Fig 1: Identifying Master Cylinder
G03868766Courtesy of SAAB-SCANIA OF AMERICA, INC.
MASTER CYLINDER DESCRIPTION

Piston diameter 15.87 mm
