Pressure Plate

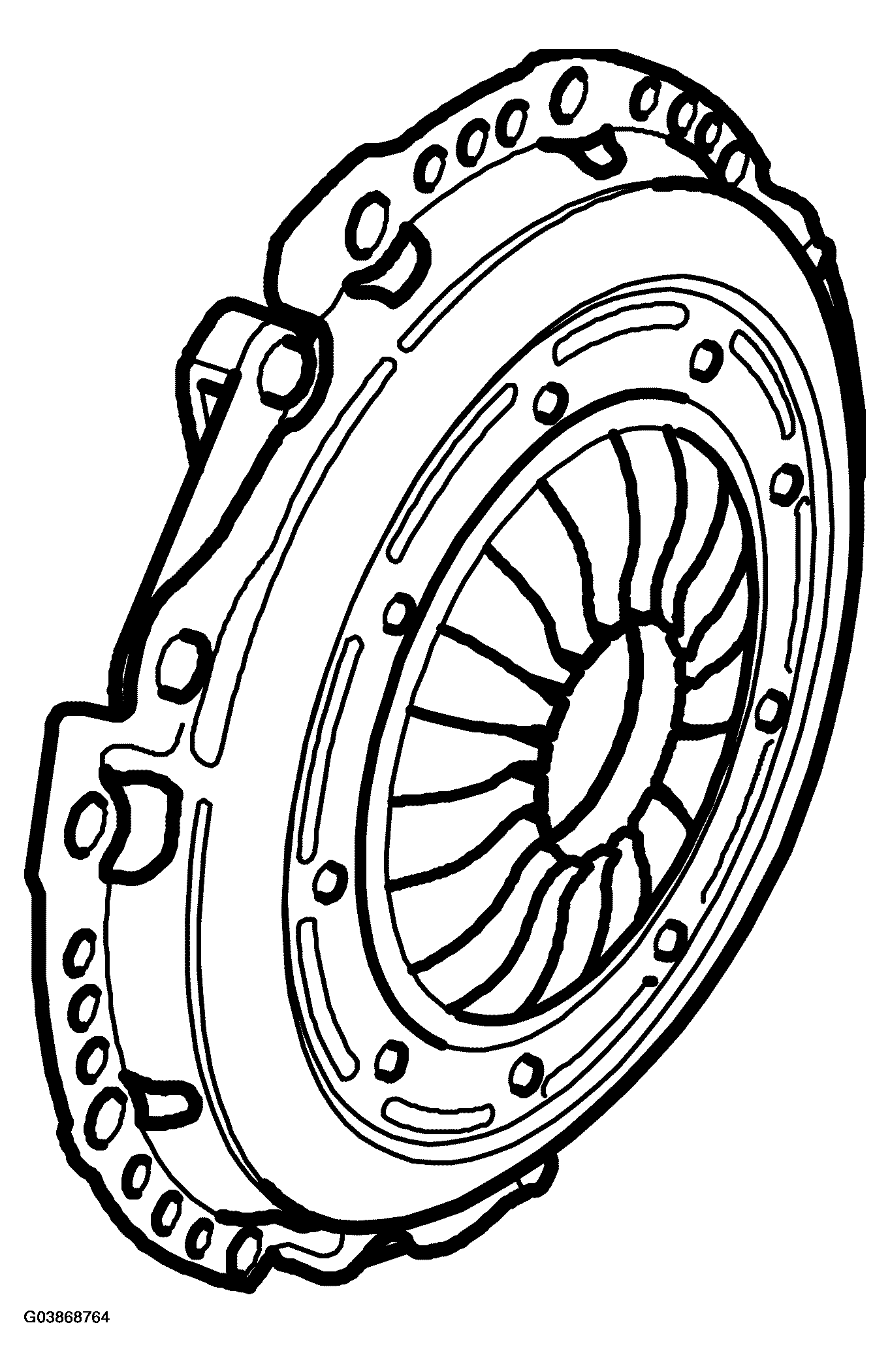

Courtesy of SAAB-SCANIA OF AMERICA, INC. PRESSURE PLATE DESCRIPTION
| Manufacturer |
|
Fichtel & Sachs |
| Type |
|
Diaphragm spring type |
| Diameter |
mm |
228 |
| Diameter, 4-cyl. diesel |
mm |
240 |
| Clamping force, B205E |
N |
6300 |
| Clamping force, B235E |
N |
6300 |
| Clamping force, B235R |
N |
6550 |
