Slave Cylinder

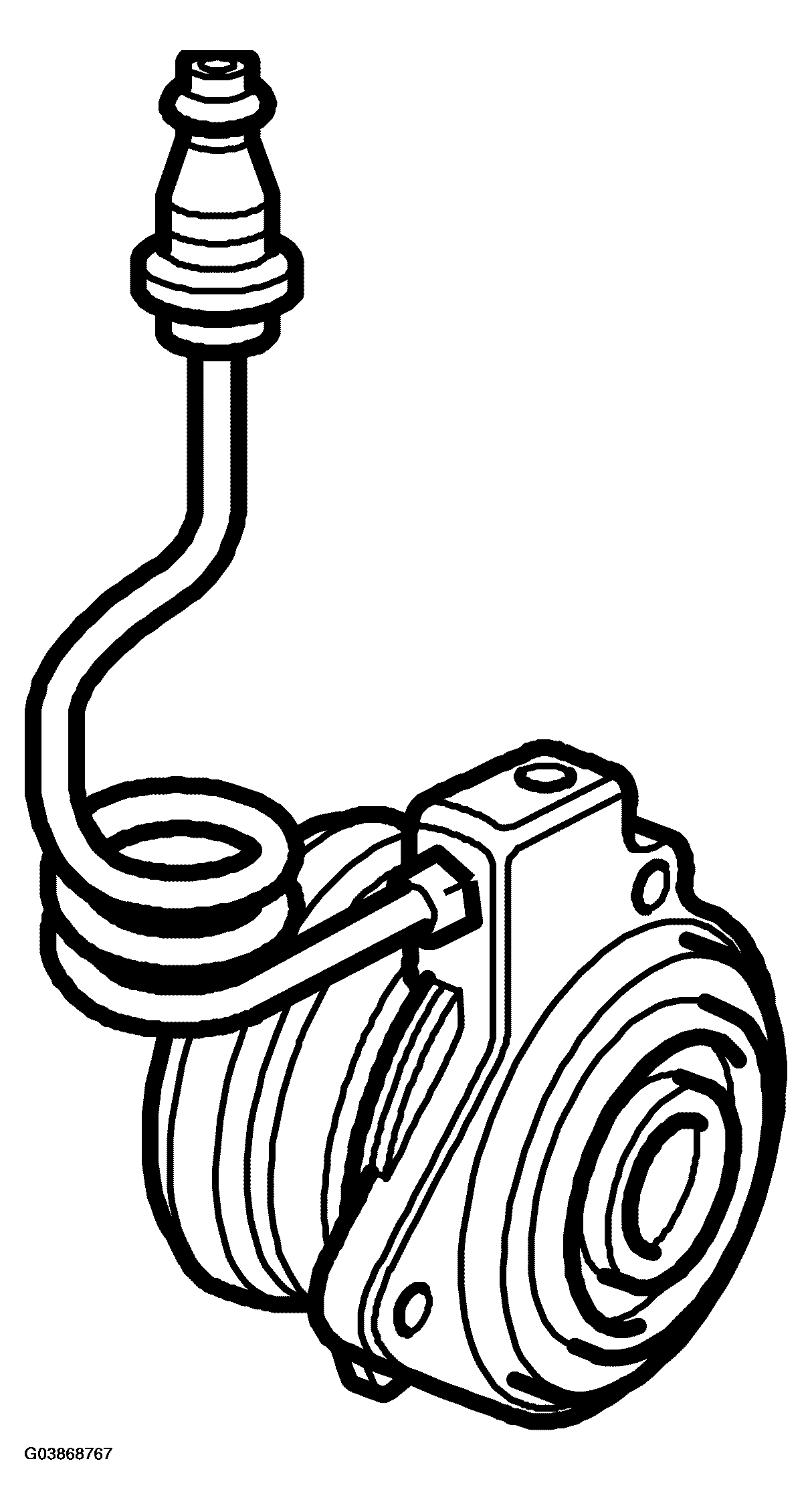

Fig 1: Identifying Slave Cylinder
G03868767Courtesy of SAAB-SCANIA OF AMERICA, INC.
SLAVE CYLINDER DESCRIPTION

Type   CSC (Concentric slave cylinder)
Effective area mm 2 58515
Stroke mm 80.5
