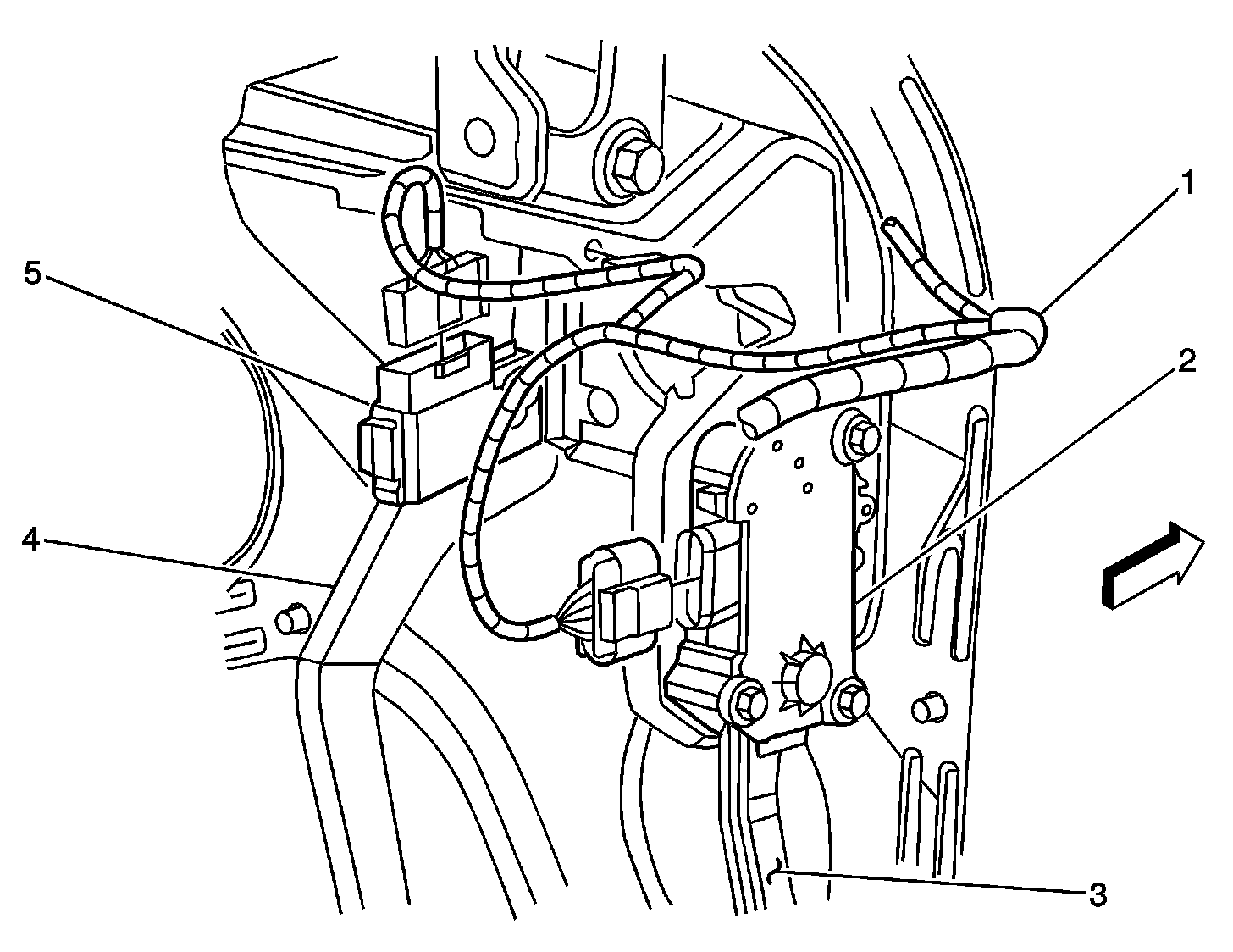

Accelerator and Brake Pedals








(1) Instrument Panel Harness
(2) Accelerator Pedal Position (APP) Sensor
(3) Accelerator Pedal
(4) Brake Pedal
(5) Stop Lamp Switch
