Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode. List of Diagnostic Trouble Code (DTC)

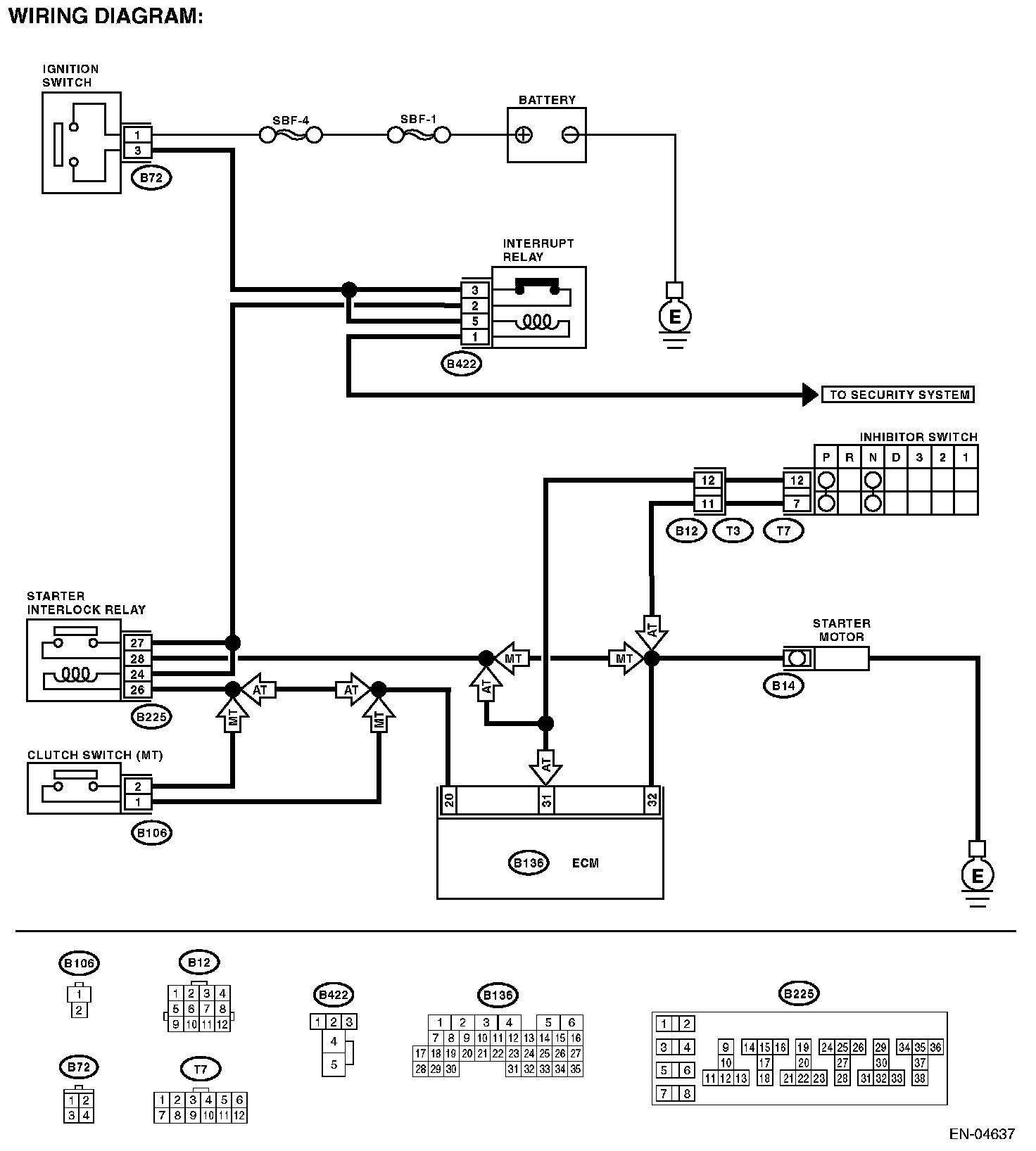

Wiring Diagram:

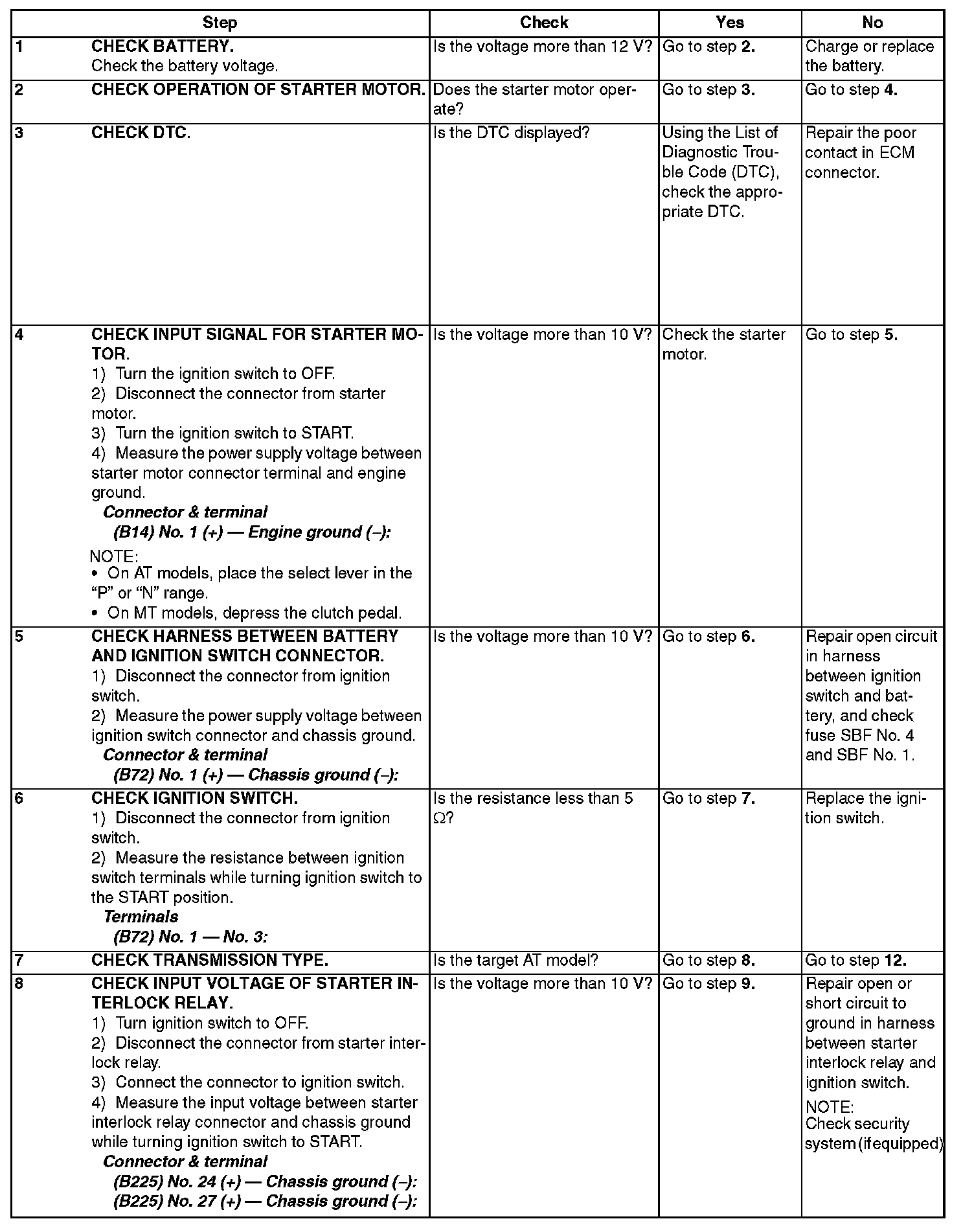

Step 1 - 8:

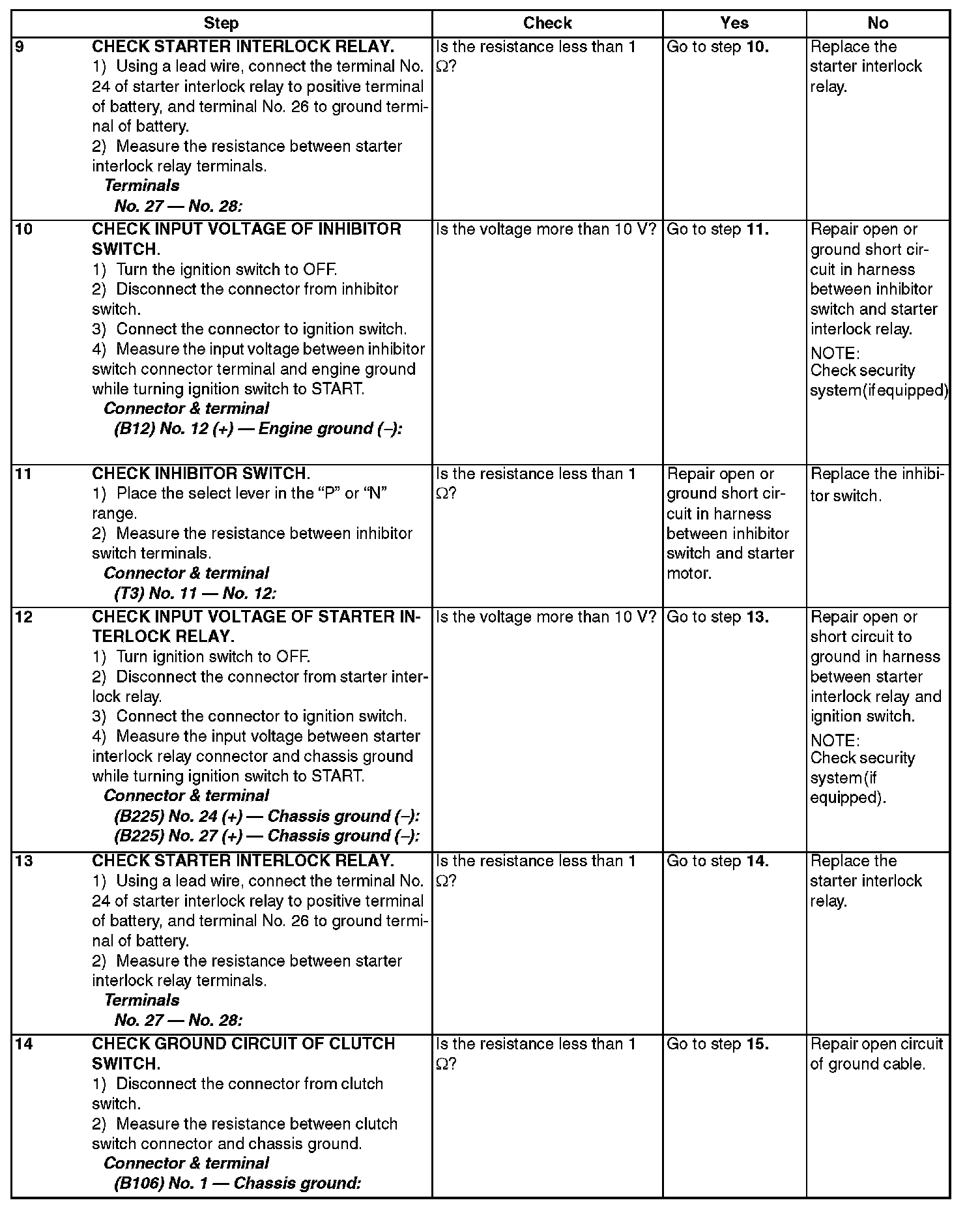

Step 9 - 14:




Step 15 - 16:
