Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch
April 5, 2026: LEMON Manuals is launched! Read the announcement.

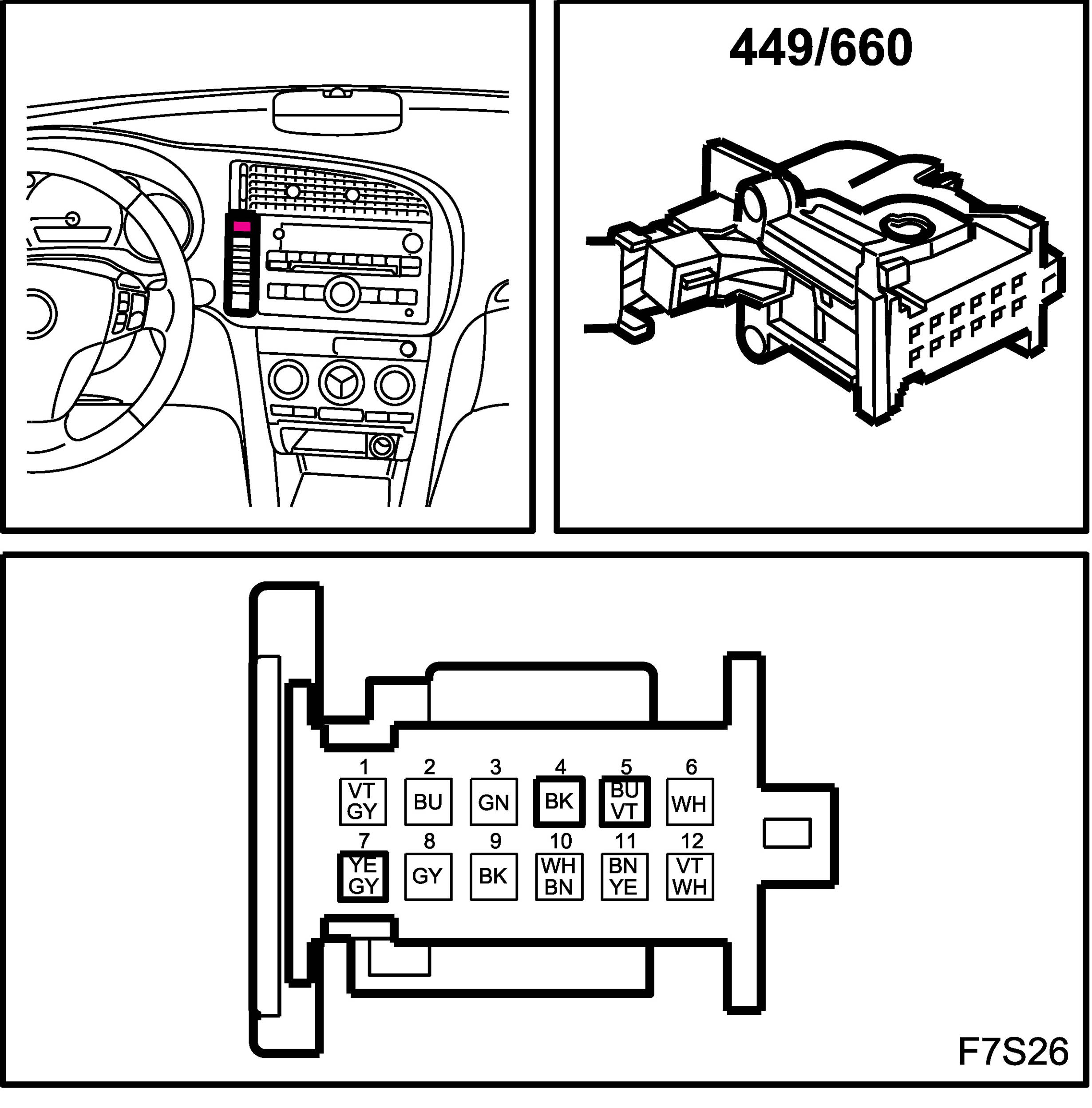

Traction Control Switch

TCS switch (449)
Location: integrated in switch panel (737a), on instrument panel beside main instrument unit
