Connector Views



Location: in the center of the dashboard

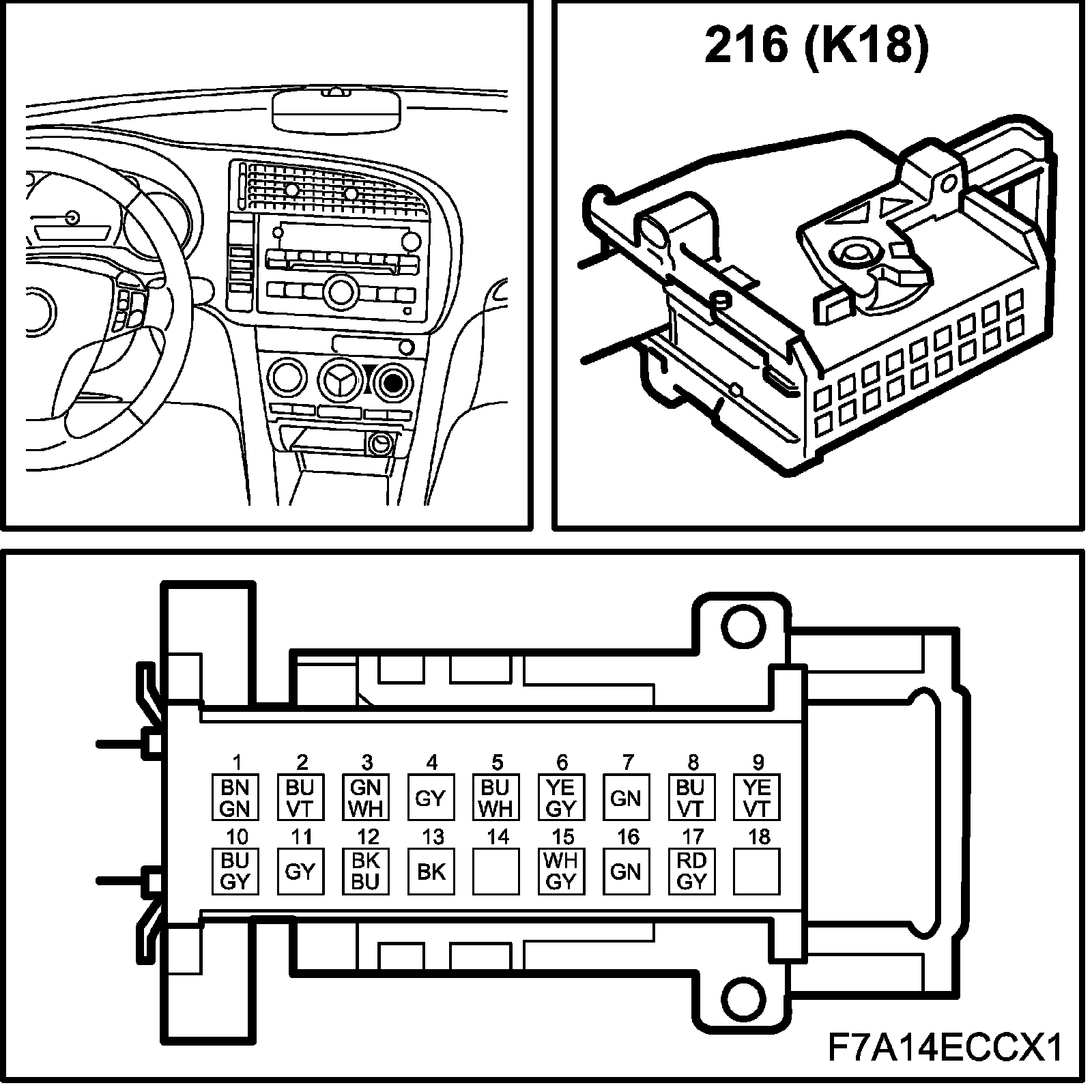

K18

Automatic Climate Control (216):

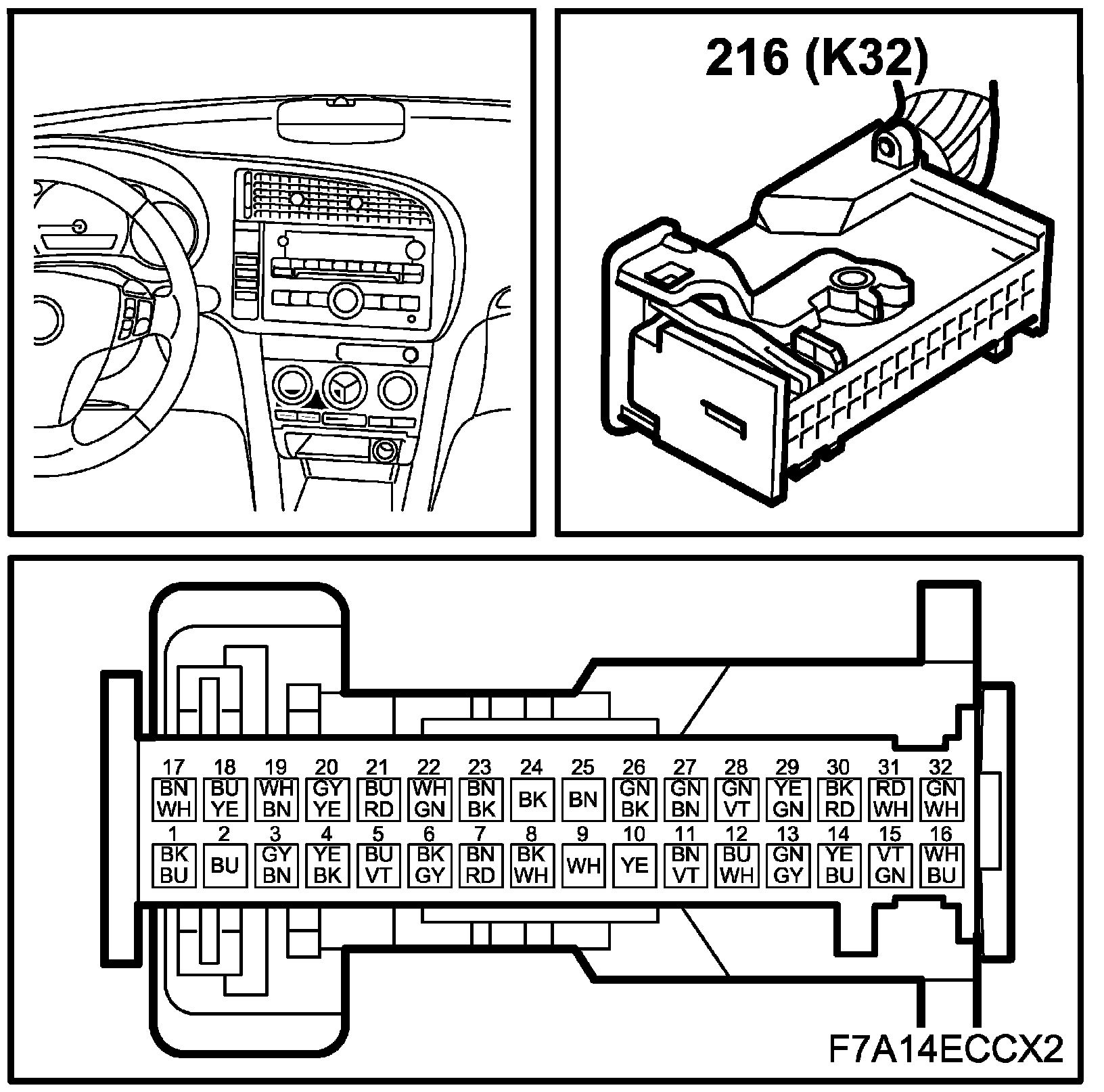

K32

Automatic Climate Control (216):
