Power Window Switch: Service and Repair

Cover, Rear Switch, Window Lift

To remove

1. Remove Rear door trim
2. Remove the door module.

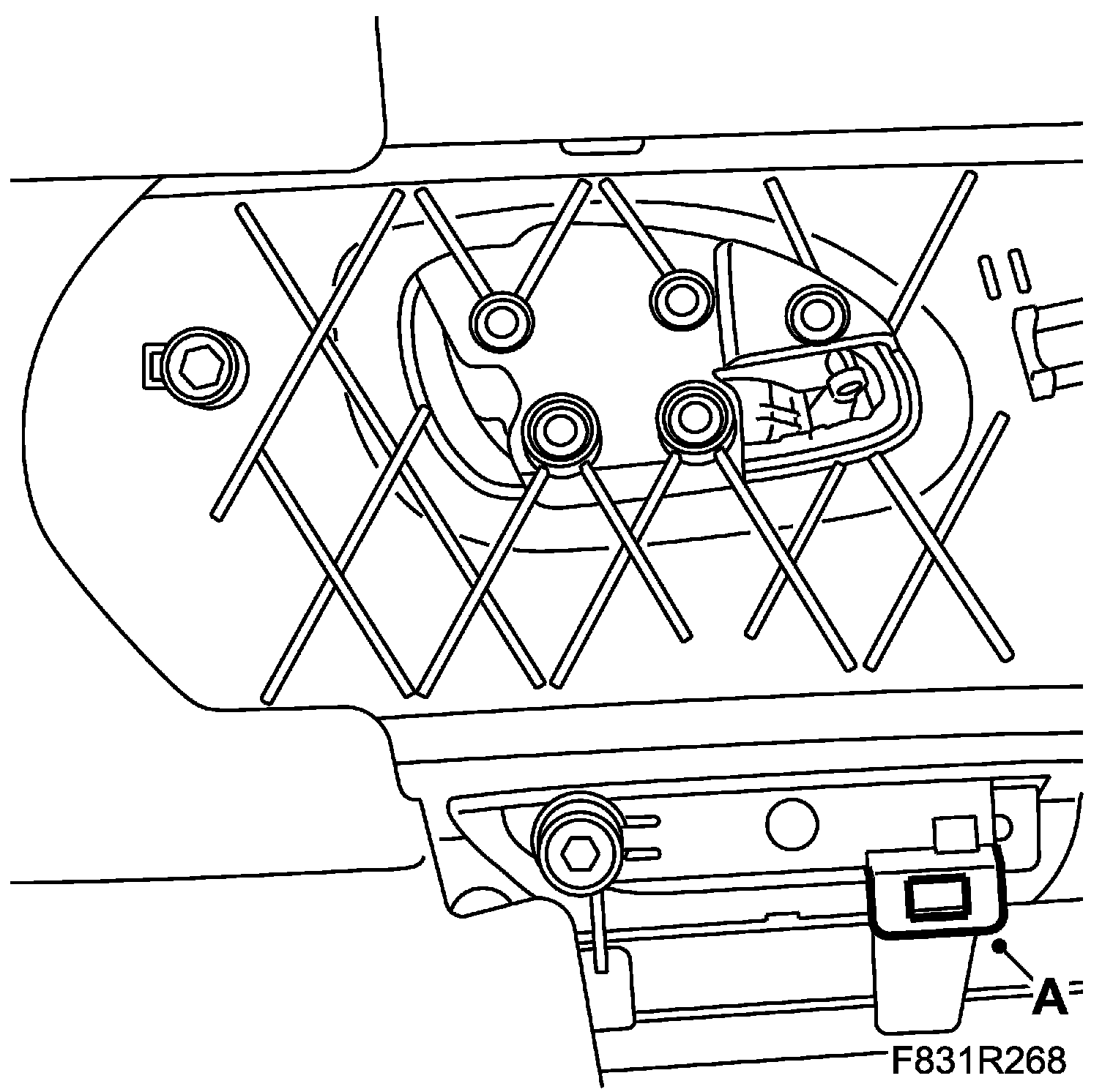

^ First detach the rear clip (A). Use a screwdriver.

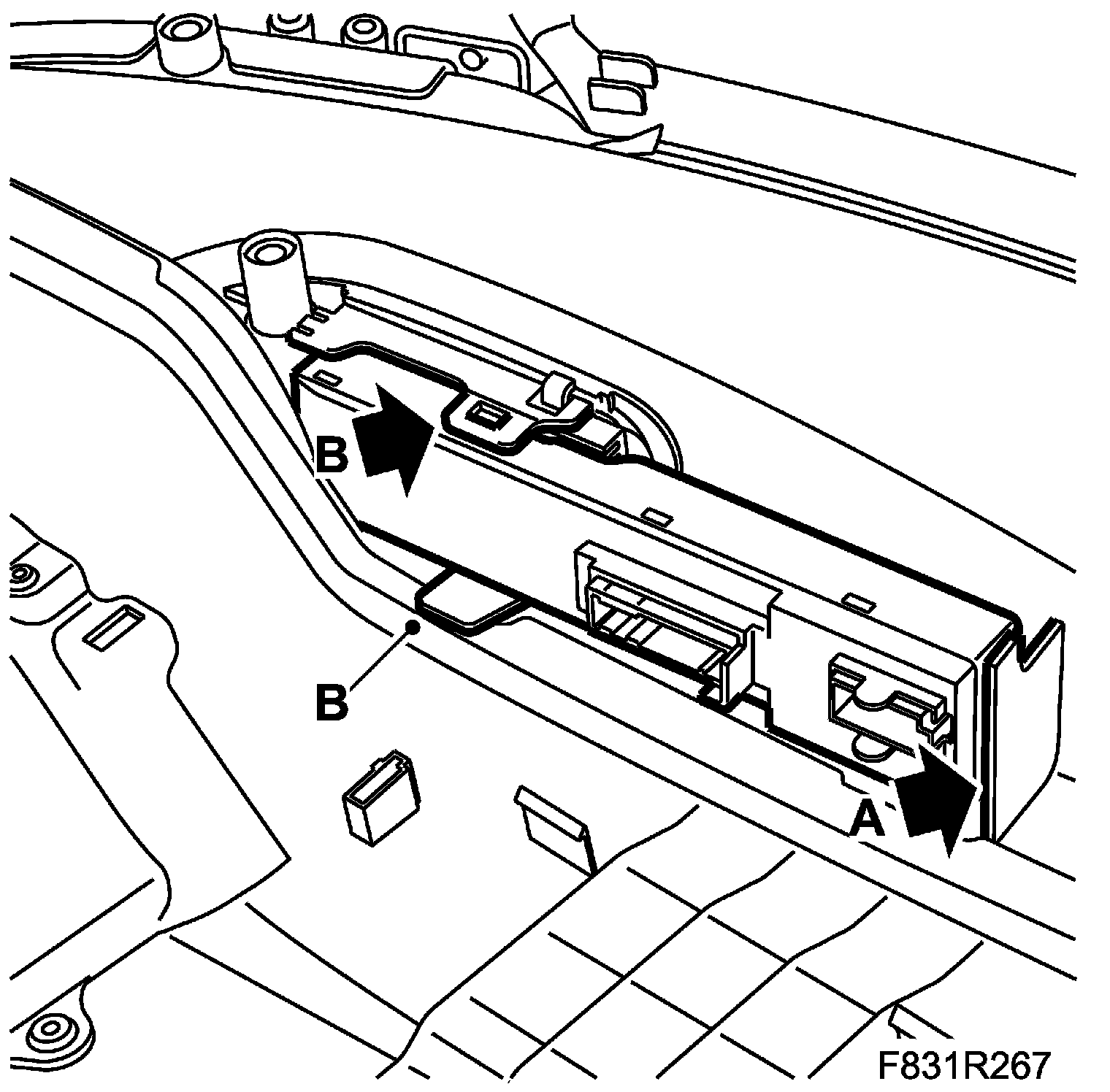

^ Then detach the clips (B) on the sides of the door module.
^ Carefully pull the door module backwards/downwards.

3. Remove the cover.
^ Detach the locking catches (A) from their mountings.





Important: Make sure that the catches do not fasten in the trim.

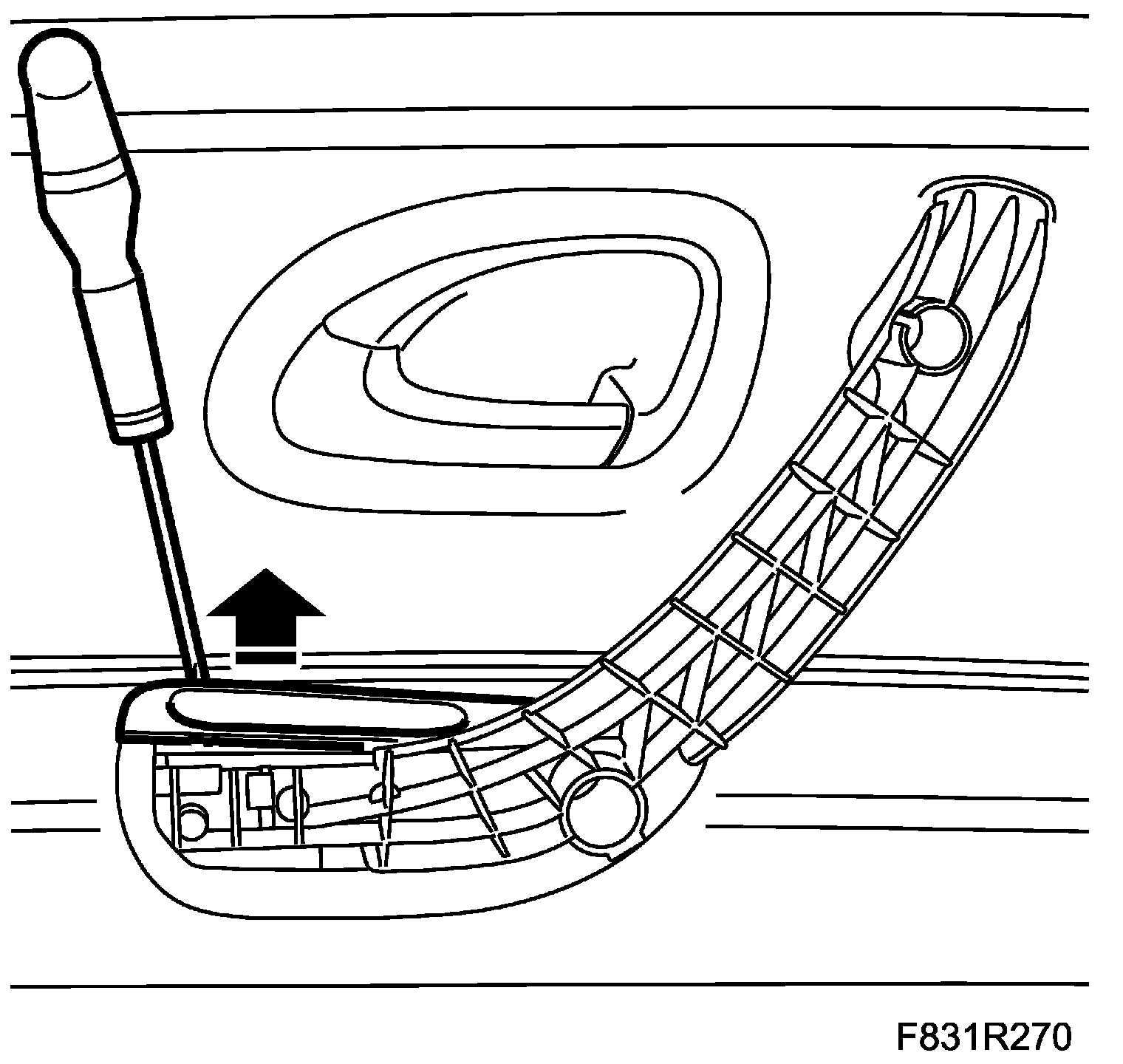

^ Remove the cover by pressing it upwards. Use a screwdriver.





To fit

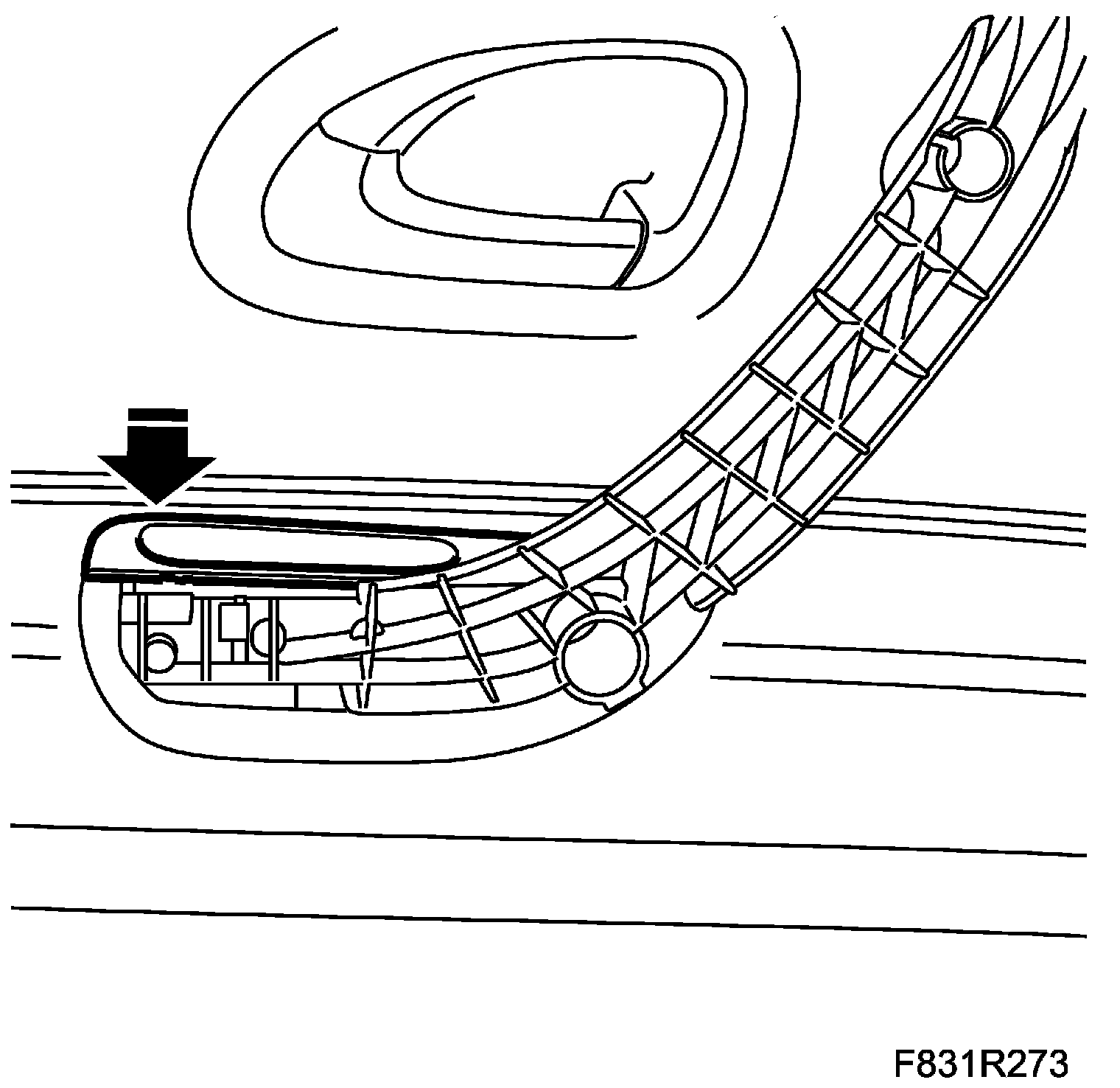

1. Fit the cover.

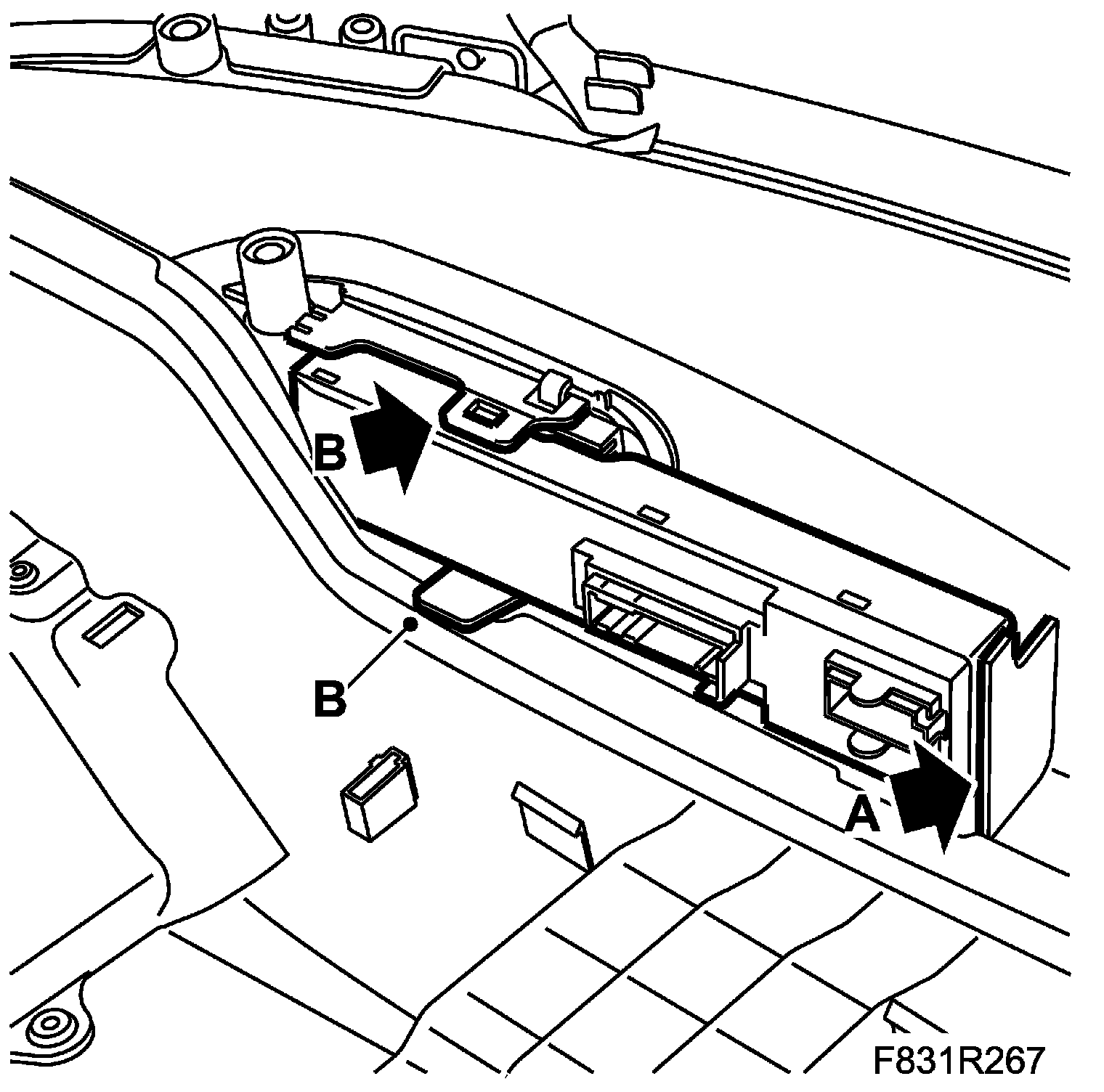

2. Fit the door module. Make sure that the retaining clips lock (A/B).





3. Fit Rear door trim.
