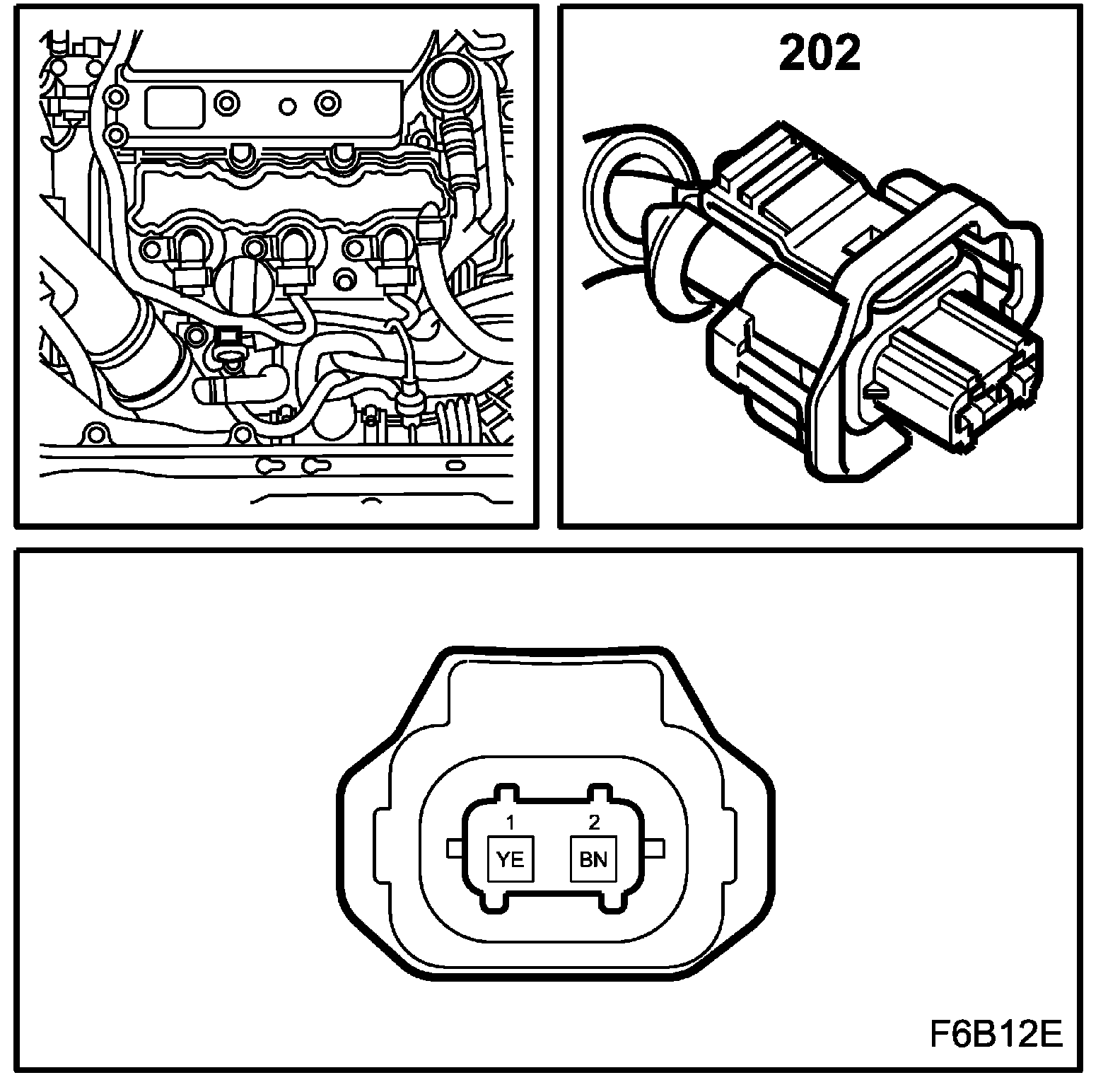

Coolant Temperature Sensor/Switch (For Computer)
Location:
below oil pressure switch
B284
Coolant Temperature Sensor (202):
