Oil Level Sensor For ECM

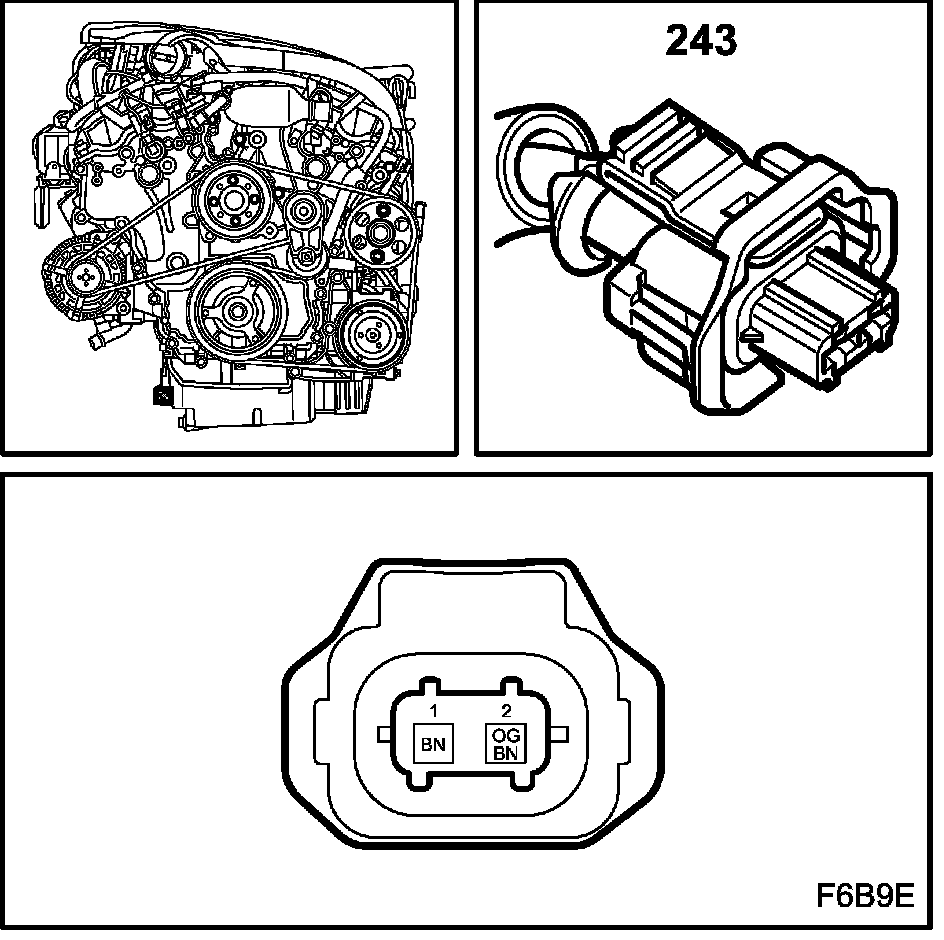

Engine Oil Level Switch (243)

Location:At the bottom of oil pan's rear edge.
