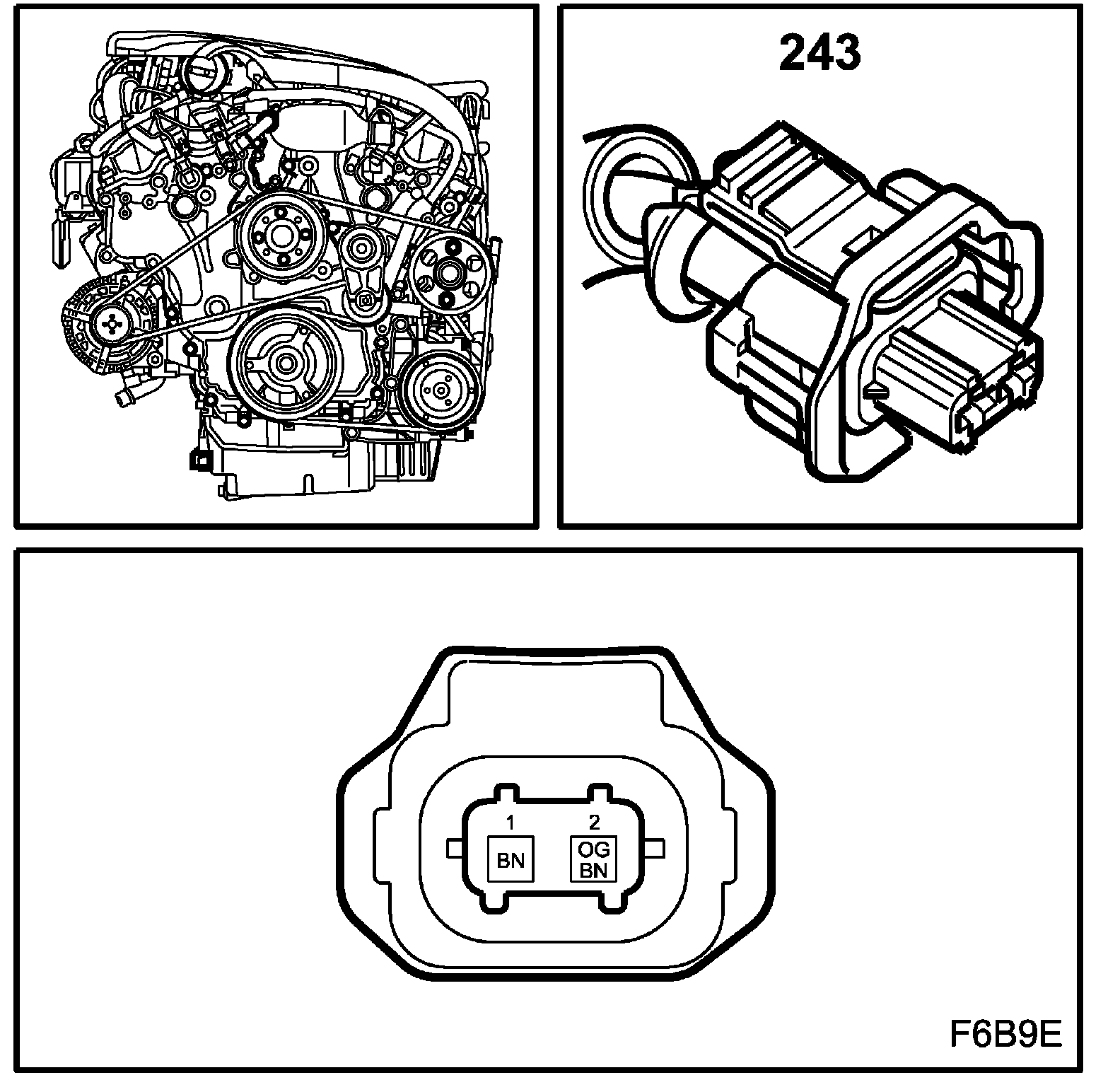

Oil Level Sensor

Location: at the bottom of oil pan's rear edge

B284

Engine Oil Level Switch (243):
