Air Flow Meter/Sensor: Diagrams

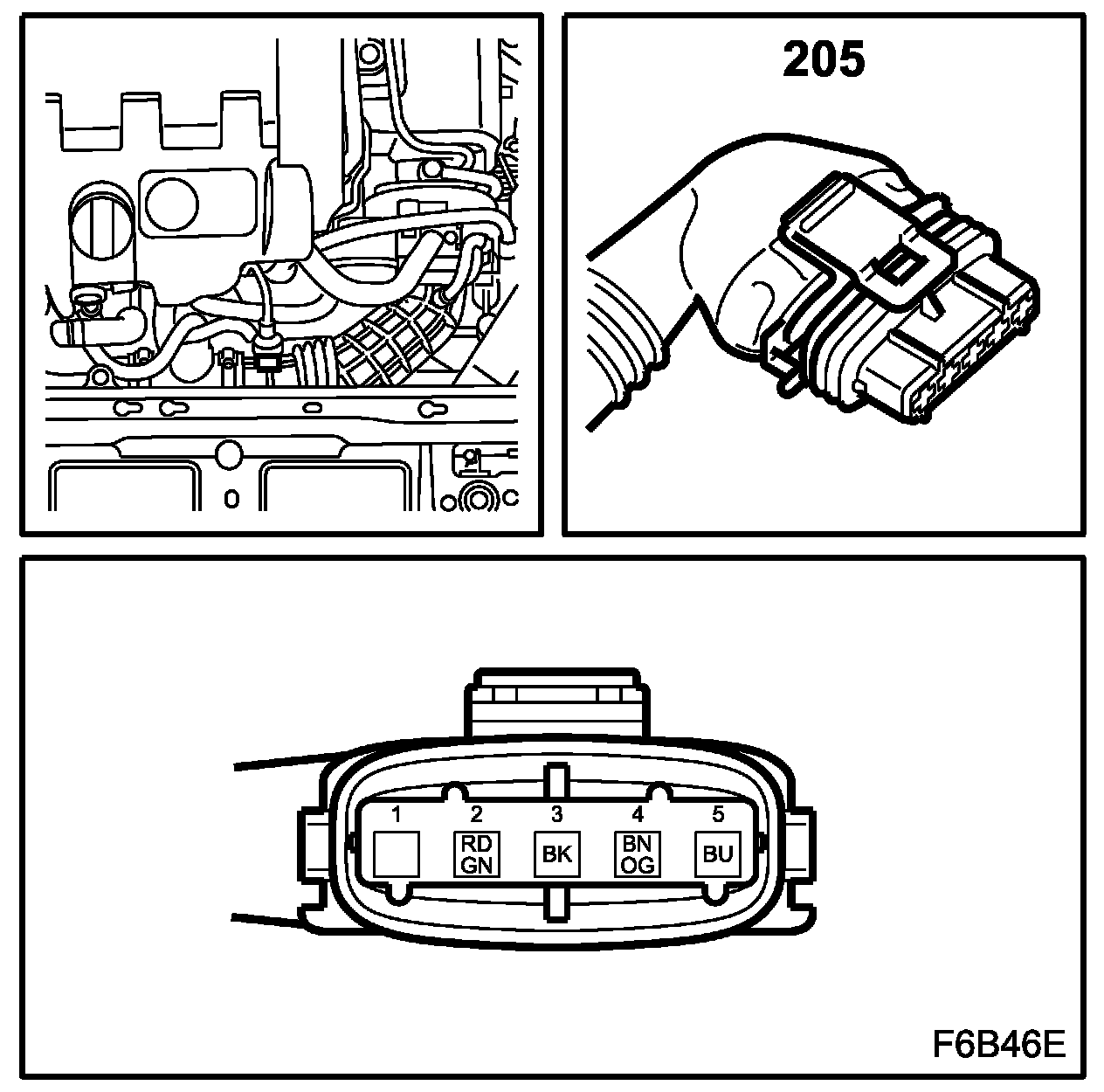

Location:
On right-hand MacPherson strut tower
B284
Mass Air Flow Sensor (205):
