Boost Solenoid: Service and Repair

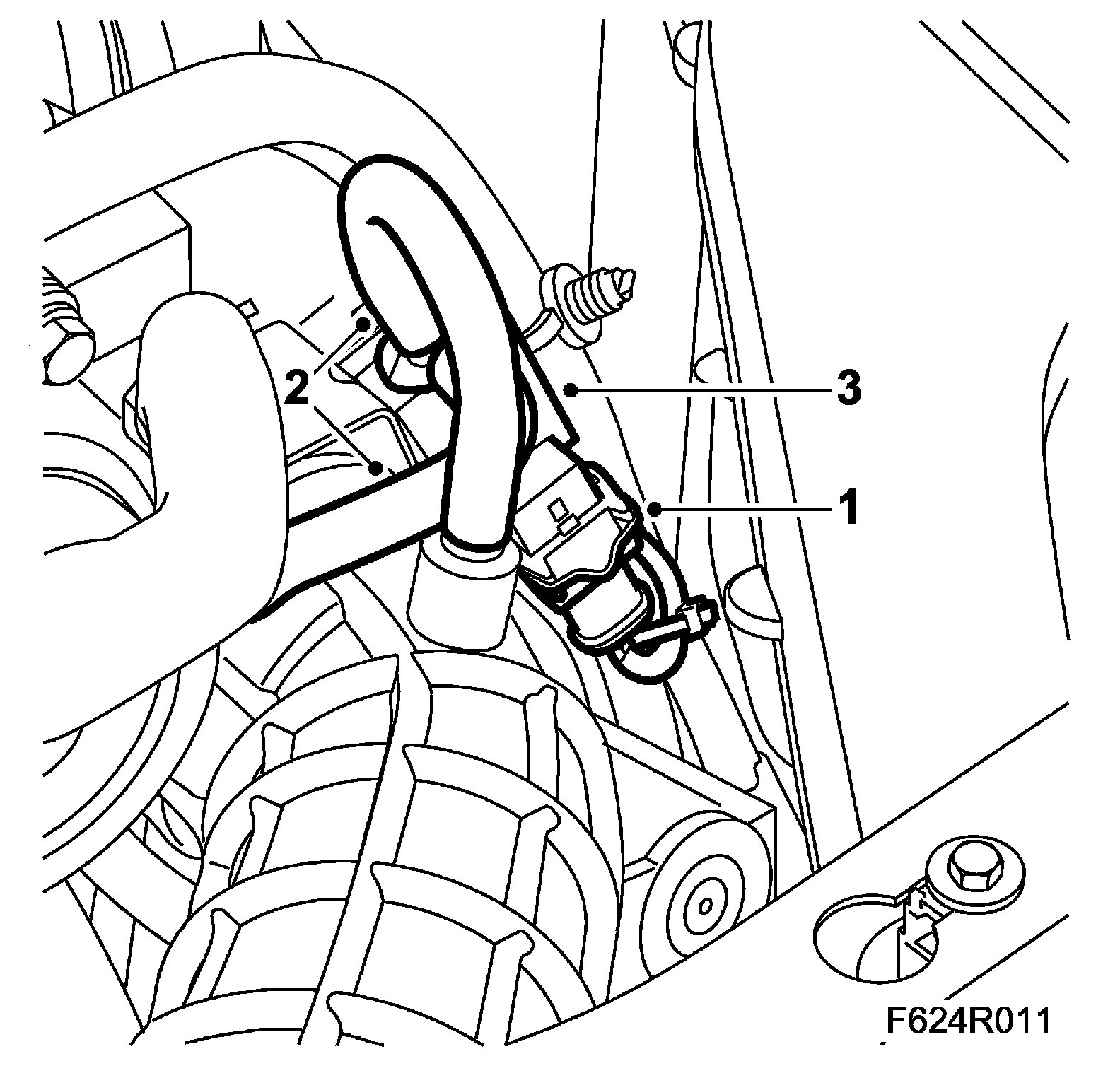

Boost Pressure Control Valve (179a)

To remove
1. Unplug the connector from the solenoid valve.





2. Detach the hoses from the valve.
3. Press down the catch carefully with a screwdriver and remove the control valve from its mounting.

To fit
1. Fit the valve to its mounting.





2. Connect the hoses to the valve.
3. Plug in the connector.
