Connected components

GROUNDING REFERENCE

102 Relay, fuel pump (4D)
  Via Crimp J108, main harness
102 Relay, fuel pump (5D/CV)
323 Fuel pump motor (B207, Z18XE, B284)
575RR Rear right window lift control module
702D/P Control module, front door, right
702RR Control module, rear door, right
  Via Crimp J135, inner door harness  in the front right door, which is connected to crimp J108
209D/P Lamp, front right door courtesy lighting
388 Switch, tailgate/boot lid
514D/P Switch, simultaneous central locking, front right door
  Via Crimp J340, diesel tank harness  , which is connected to crimp J108
323 Motor, fuel pump
323a Engine, fuel pump, parking heater
672 Diesel fuel filter unit
689 Unit, fuel pump
692 Water level sensor, fuel filter

Crimp J108

Fig 1: Crimp J108 - Circuit Diagram
G05052235Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connection to G43

Fig 2: Connection To G43 - Circuit Diagram
G05052236Courtesy of SAAB-SCANIA OF AMERICA, INC.

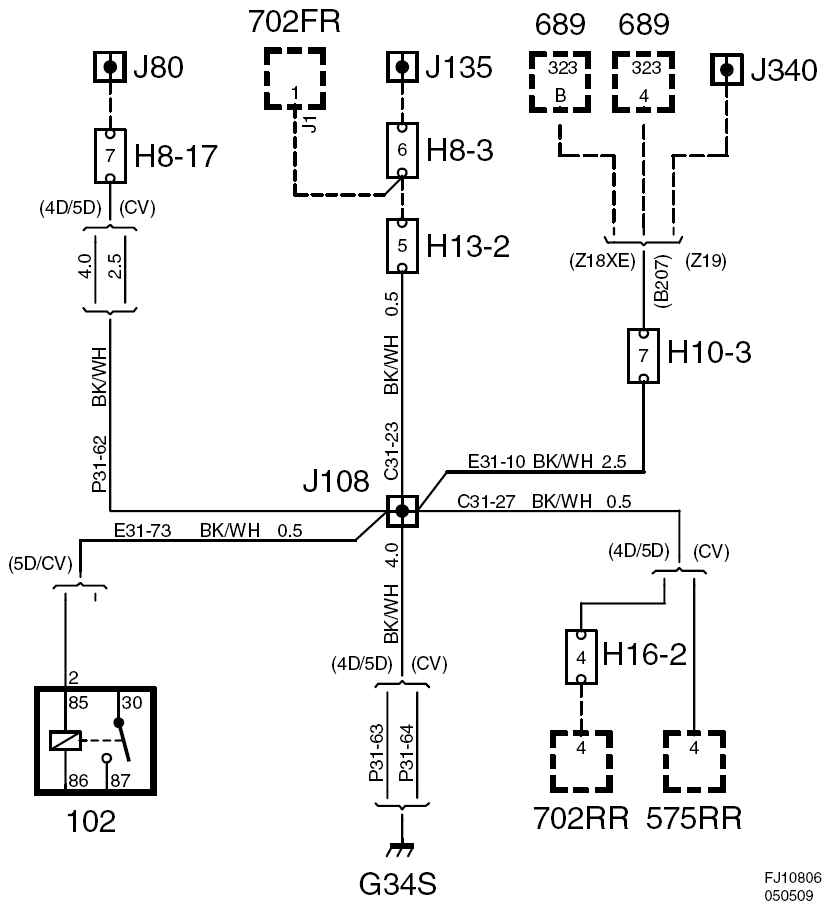

Fig 3: Point G34S - Circuit Diagram (1 Of 2)
G05052237Courtesy of SAAB-SCANIA OF AMERICA, INC.

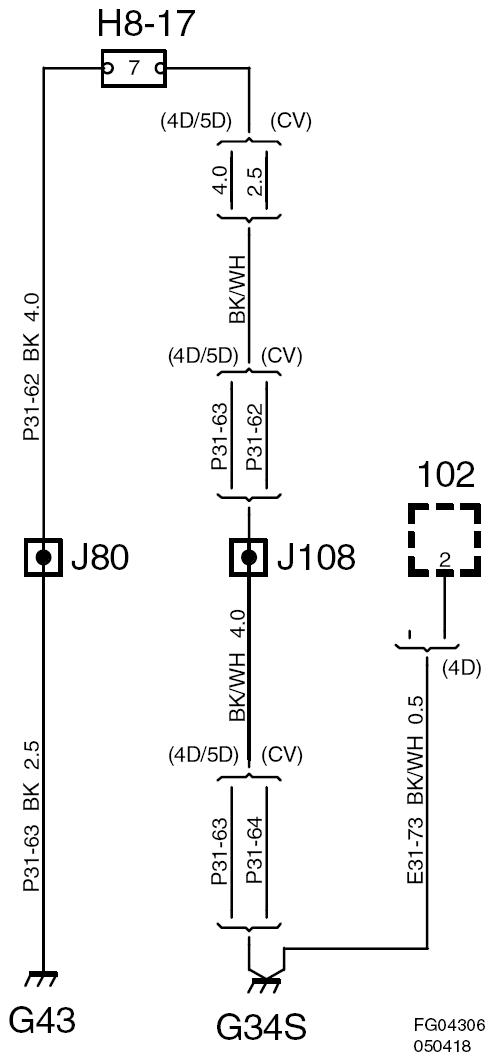

Fig 4: Point G34S - Circuit Diagram (2 Of 2)
G05052238Courtesy of SAAB-SCANIA OF AMERICA, INC.
