Connector H10-8

Location:  On engine next to upper intake manifold on gearbox side

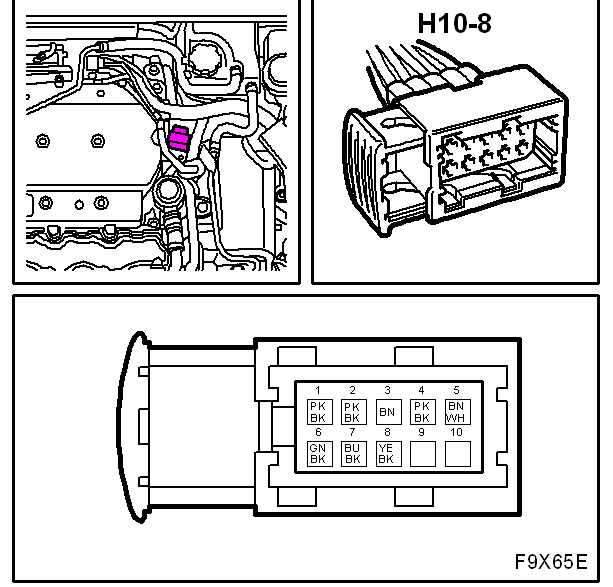

Fig 1: Identifying Connector H10-8 Location
G05058372Courtesy of SAAB-SCANIA OF AMERICA, INC.
