Description and Operation: Components: Notes

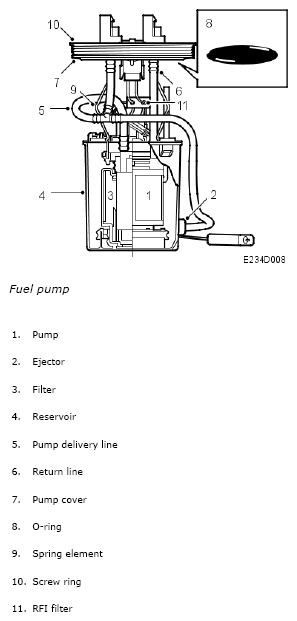

Fig 1: Identifying Fuel Pump Components
G05034860Courtesy of SAAB-SCANIA OF AMERICA, INC.
