To remove

  1. Remove the rubber cap and unplug the connector.

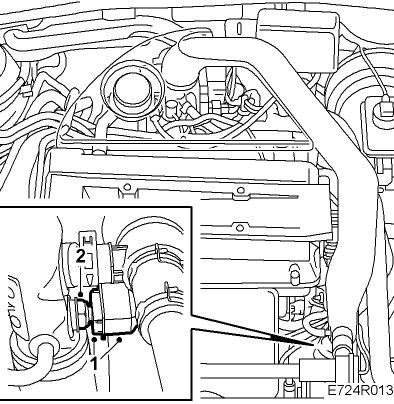

    Fig 1: Identifying Rubber Cap
    G05035078Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor.
