To fit

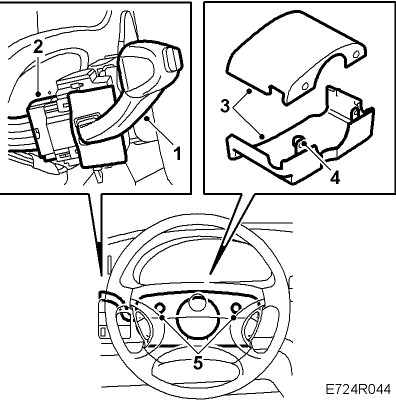

Fig 1: Illustration For Step 1-5
G05035108Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the switch.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
  3. Fit the covers. Pay attention to the catch on the covers.
  4. Tighten the lower screw.
  5. Turn the steering wheel and fit the two screws to the steering column cover.
