Body Control Systems

Body Control System Schematics

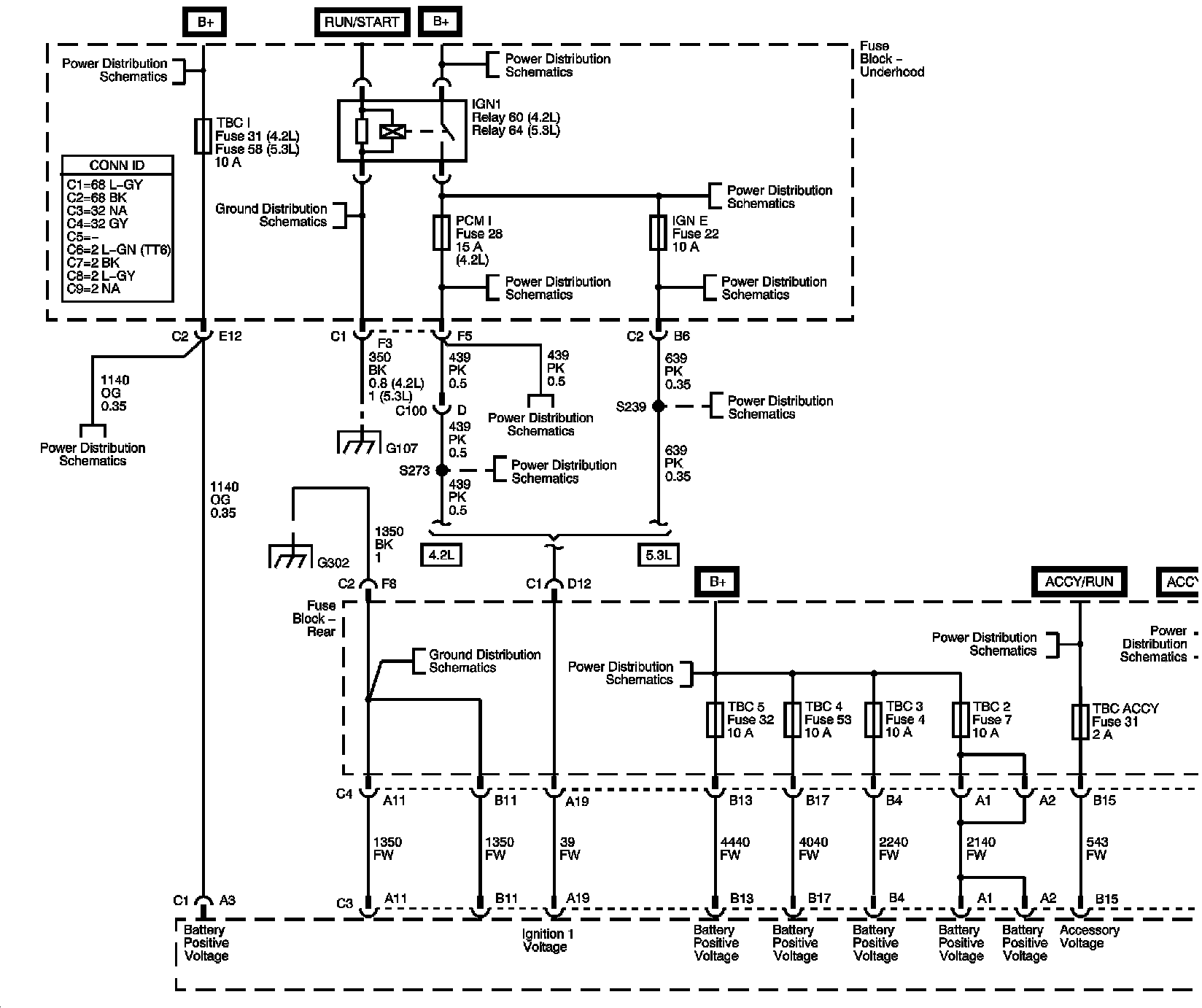

BCM Module Power and Ground

��A:

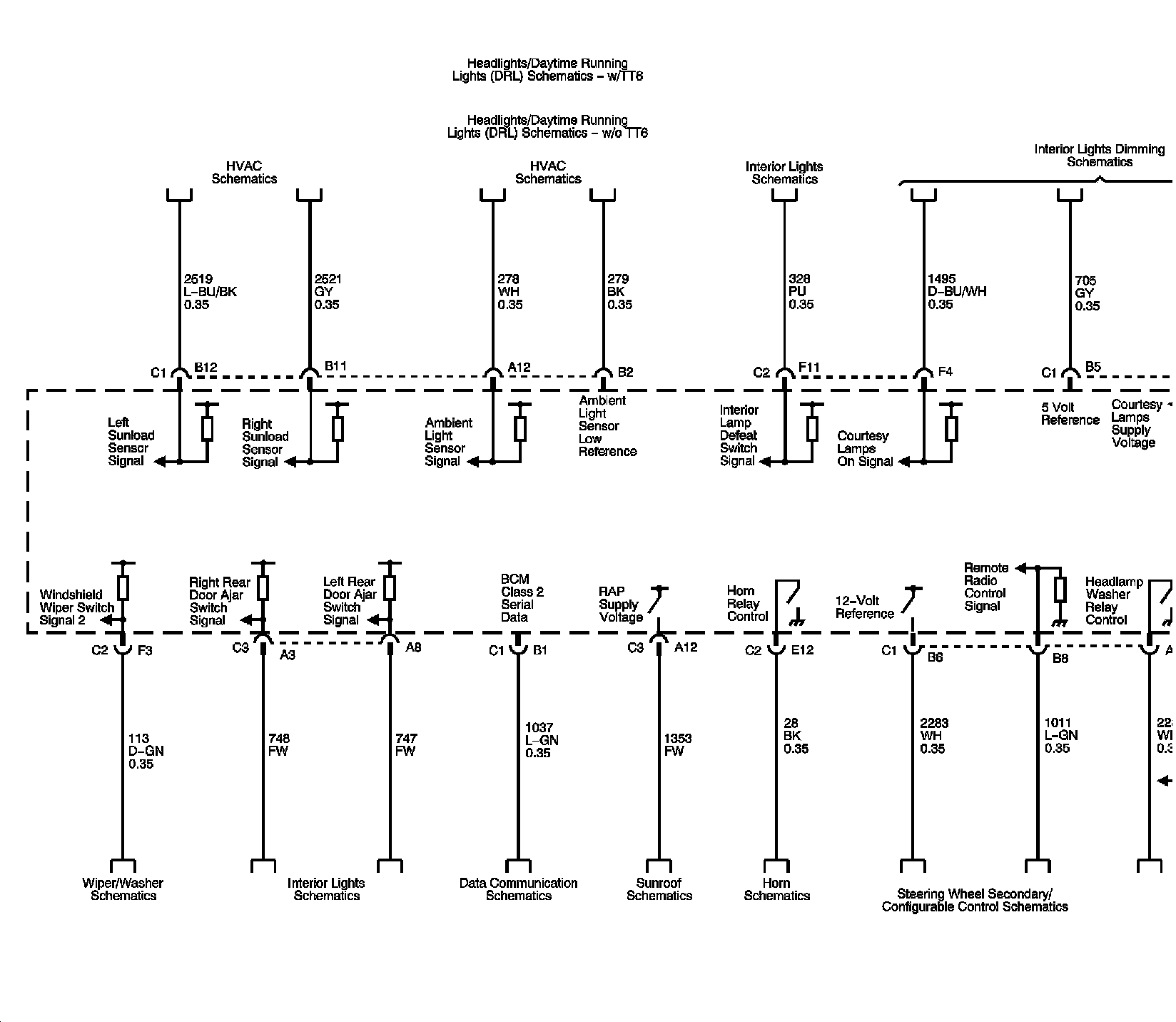

BCM Controlled/Monitored Subsystem References - 1 of 3

�(�A:

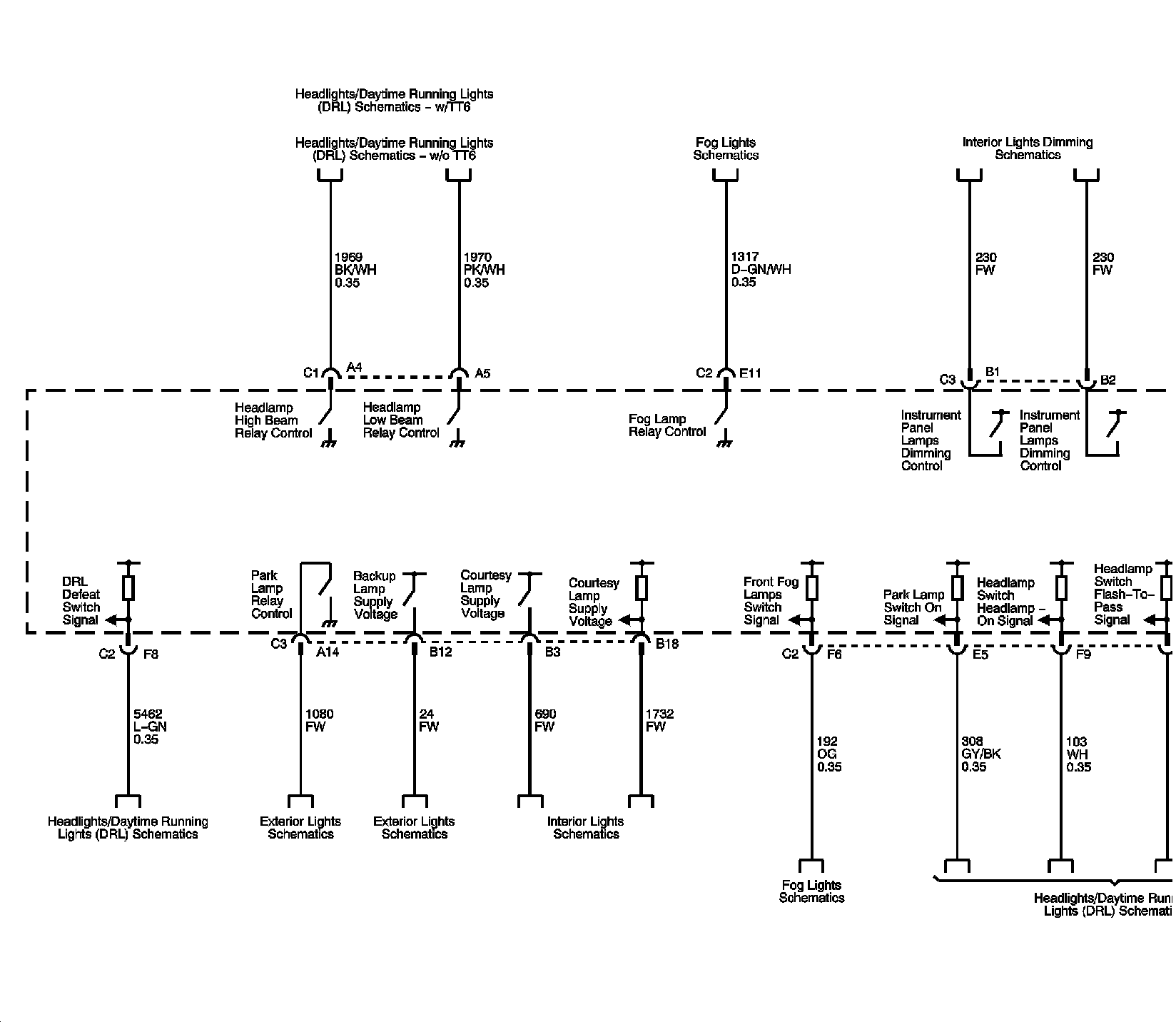

BCM Controlled/Monitored Subsystem References - 2 of 3

�U�A:

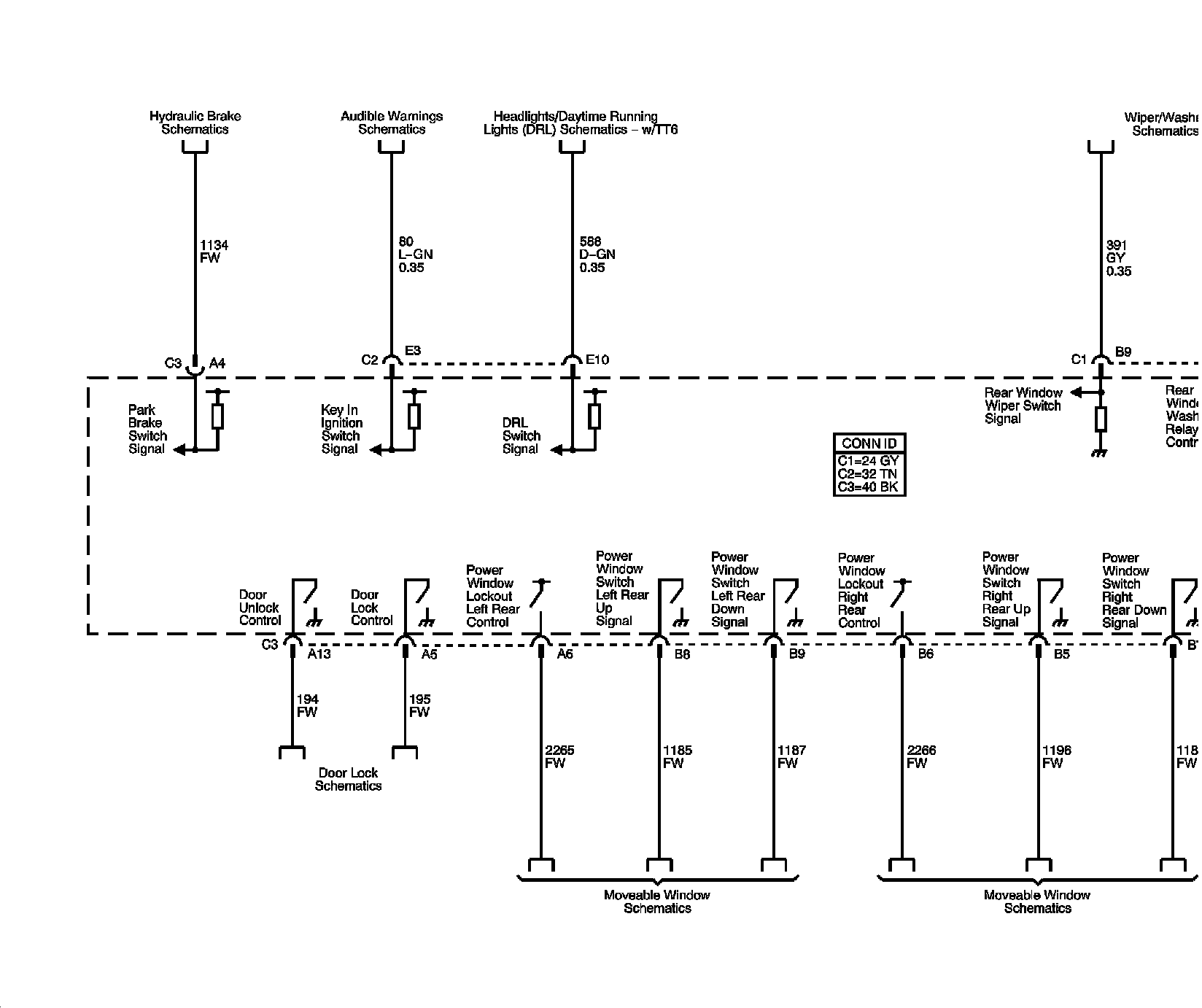

BCM Controlled/Monitored Subsystem References - 3 of 3

���A:

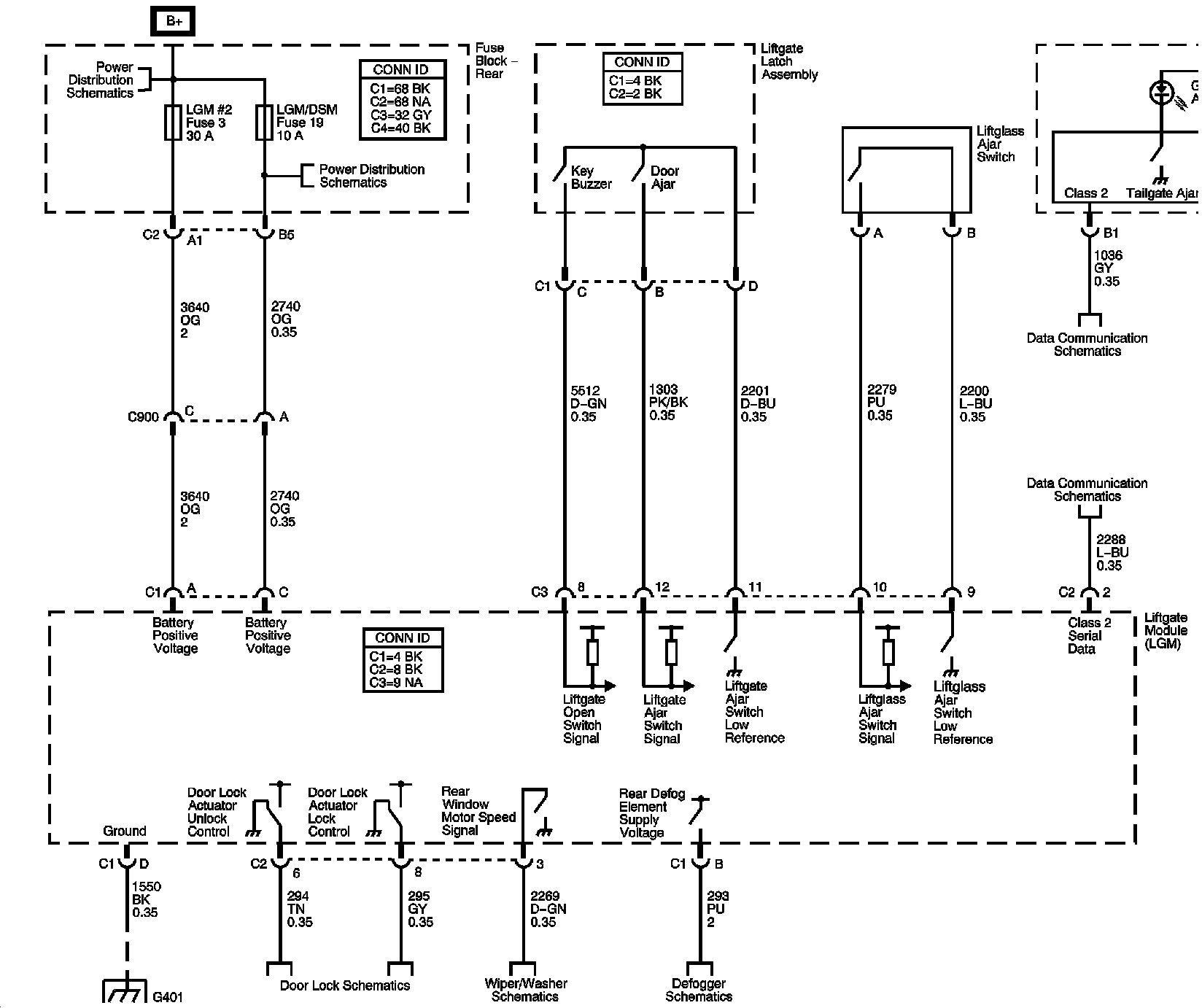

Liftgate Module

�ŀA:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
