Door Module
Component Connector End Views

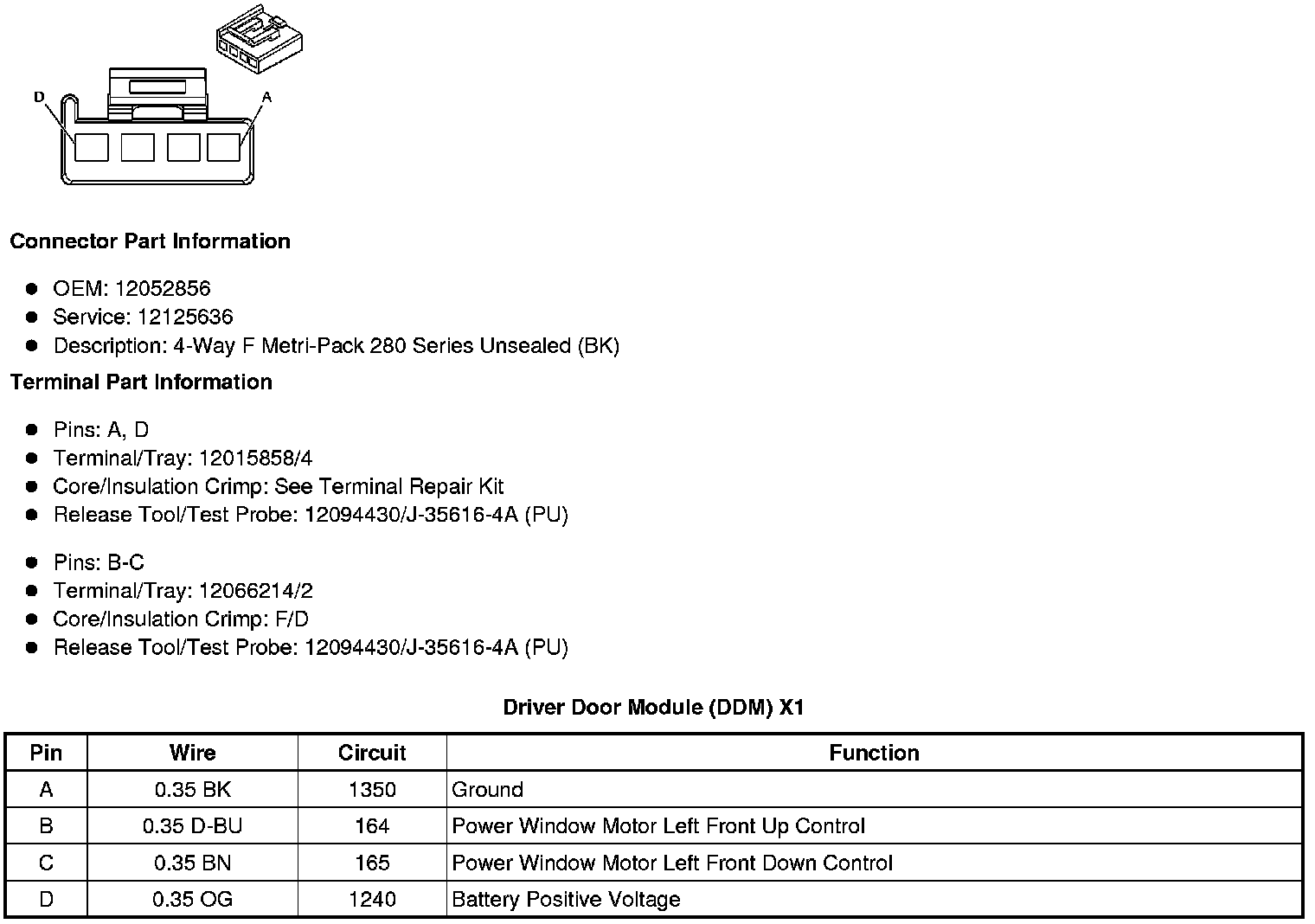

Driver Door Module (DDM) X1

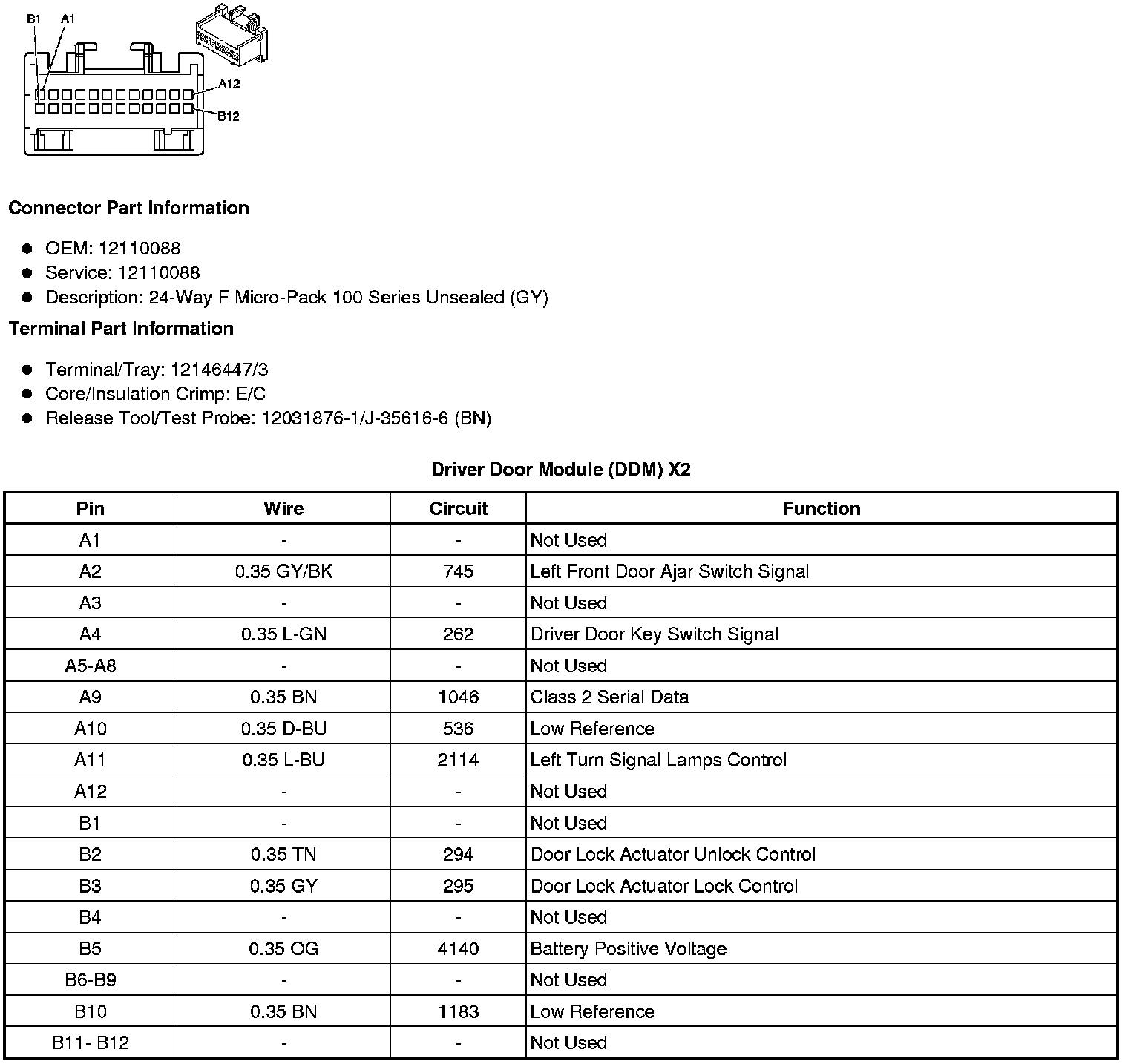

Driver Door Module (DDM) X2

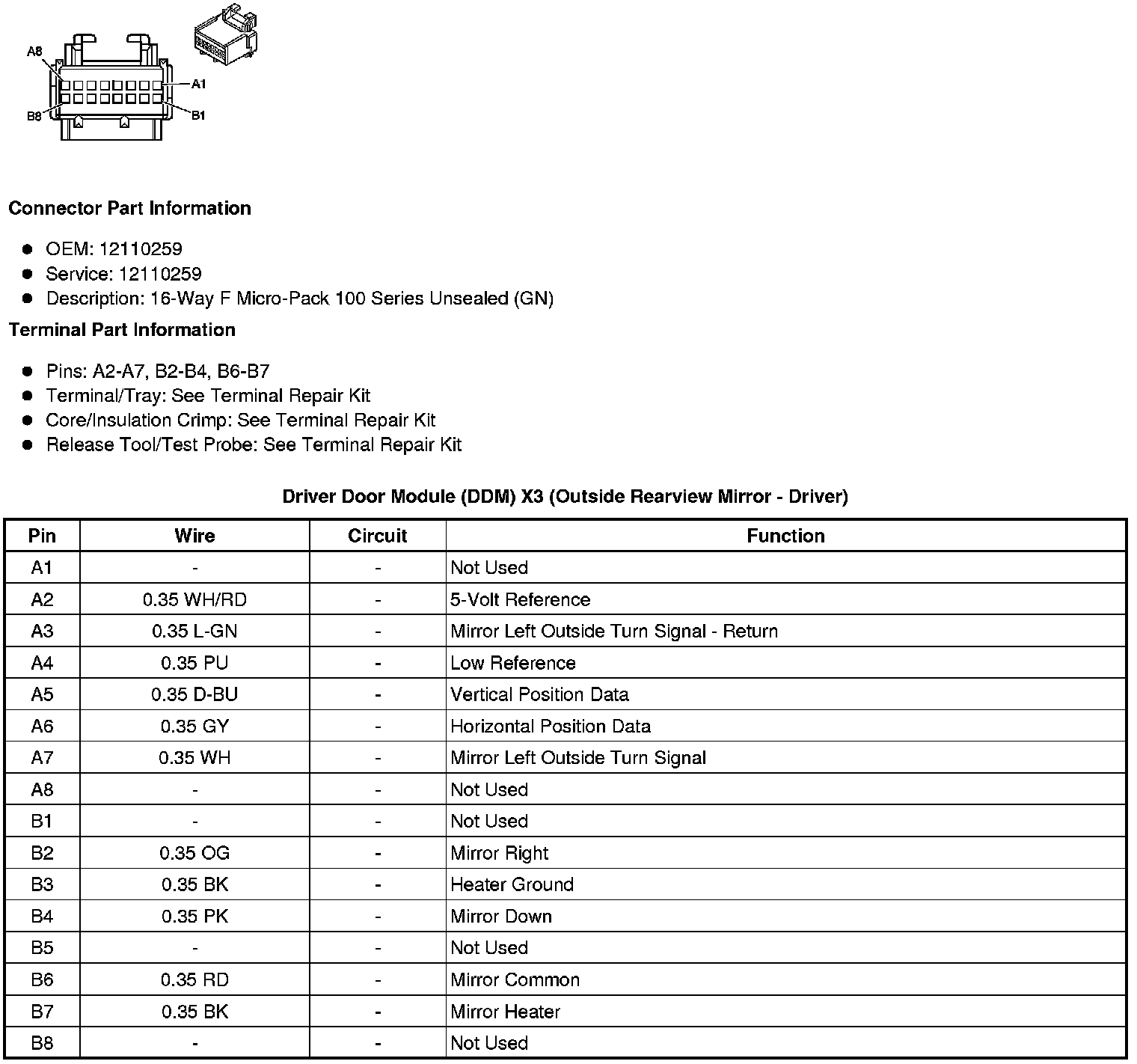

Driver Door Module (DDM) X3 (Outside Rearview Mirror - Driver)
Driver Door Module (DDM) X4 (Memory Seat Switch - Driver)

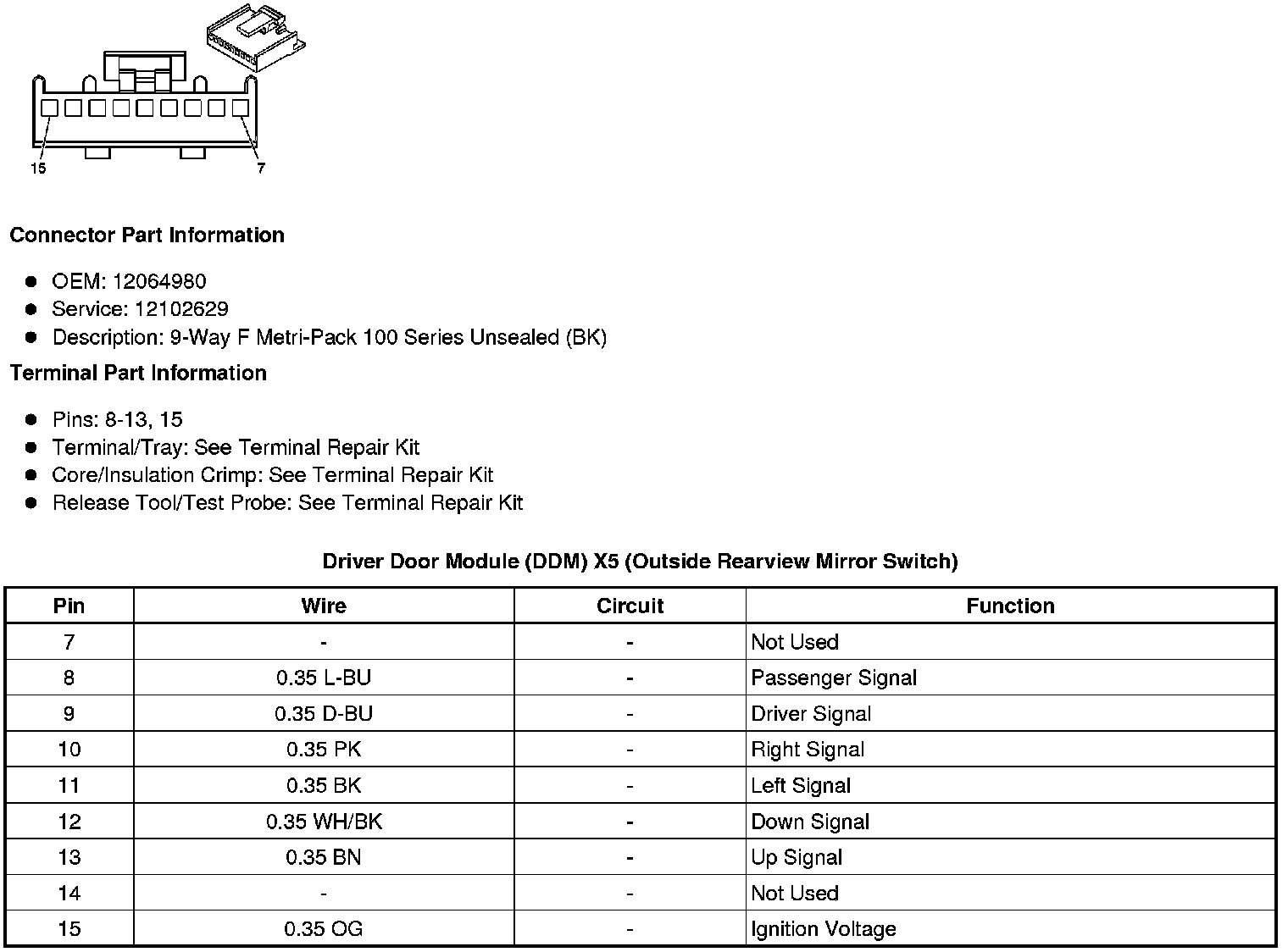

Driver Door Module (DDM) X5 (Outside Rearview Mirror Switch)

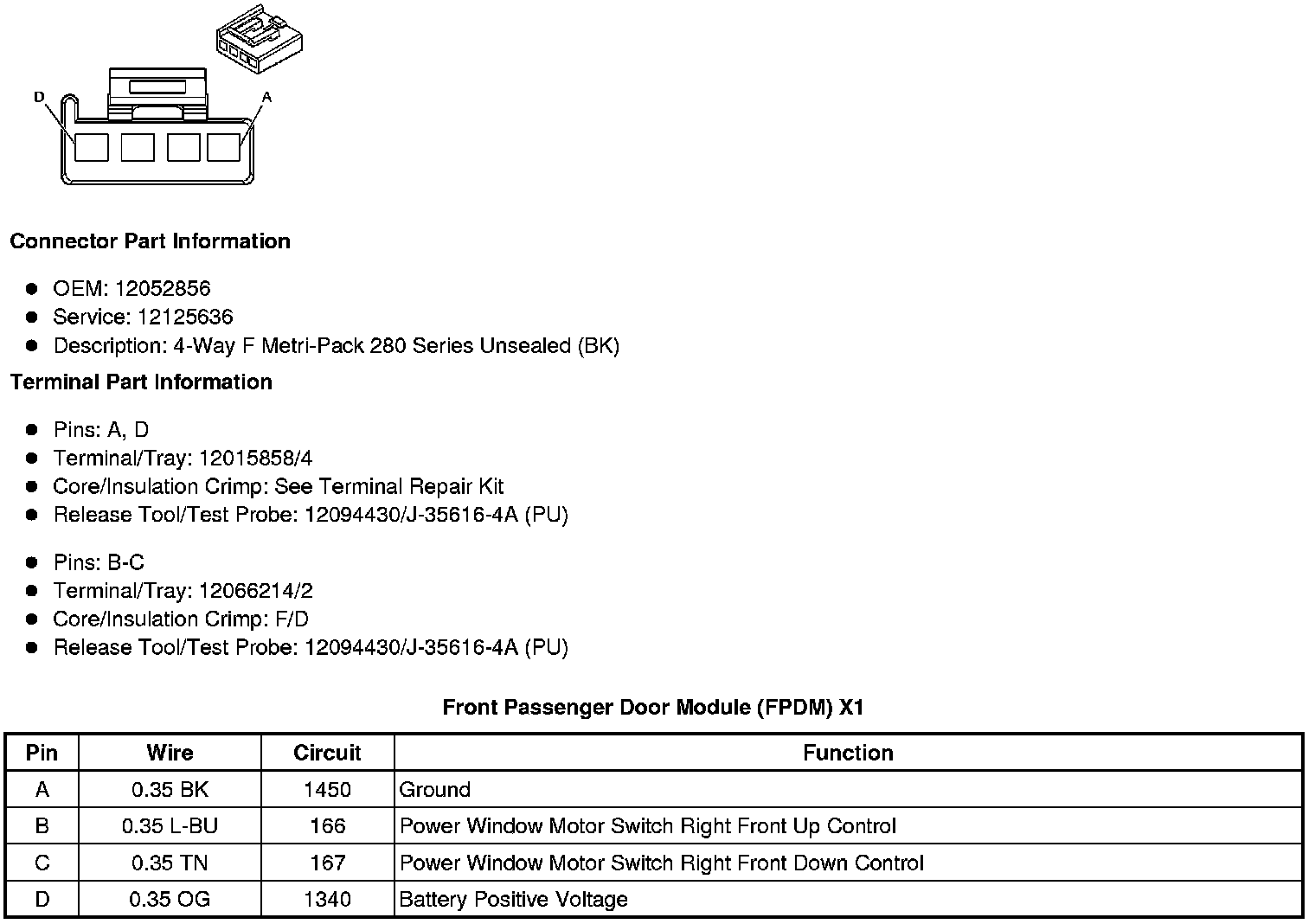

Front Passenger Door Module (FPDM) X1

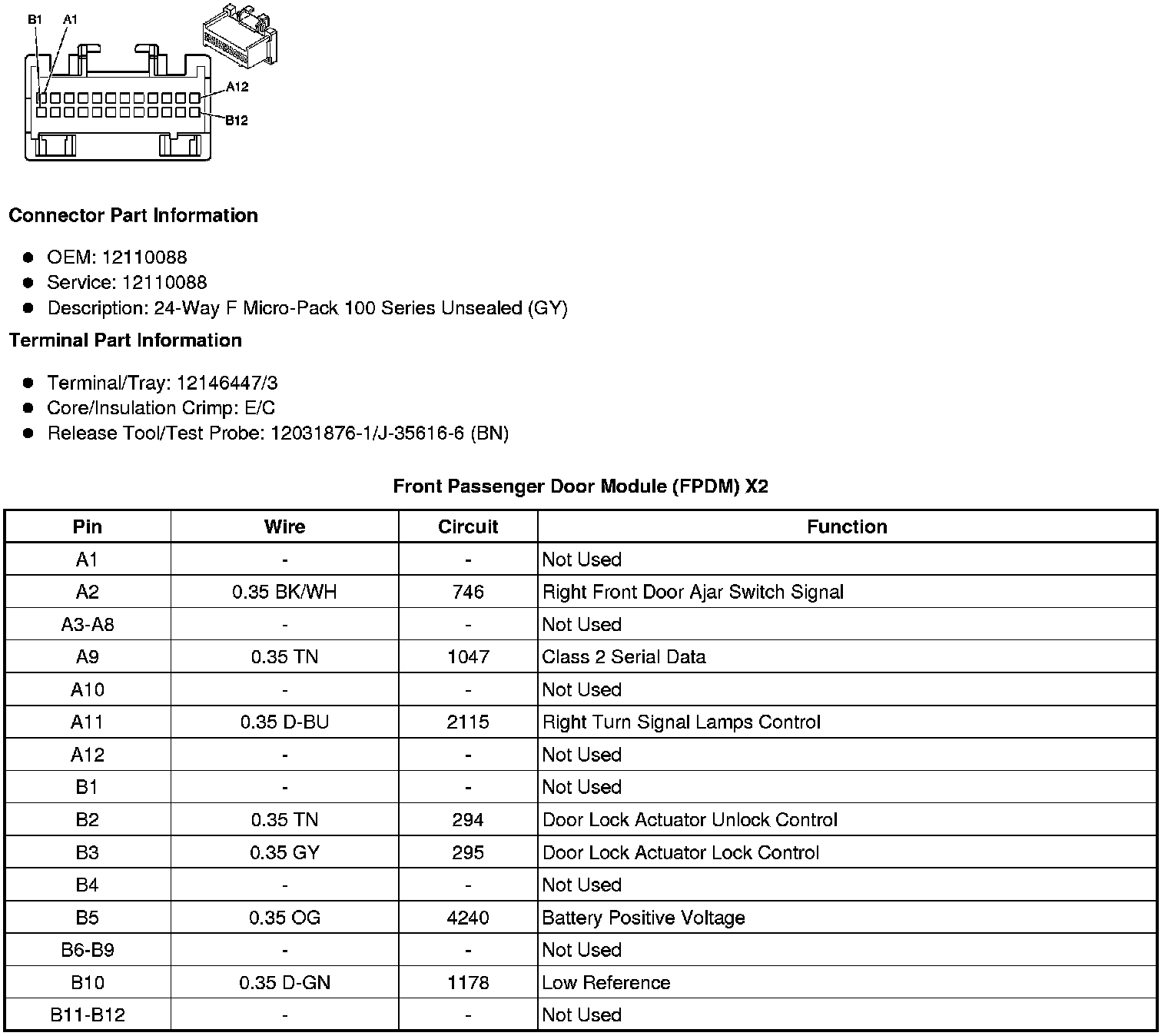

Front Passenger Door Module (FPDM) X2

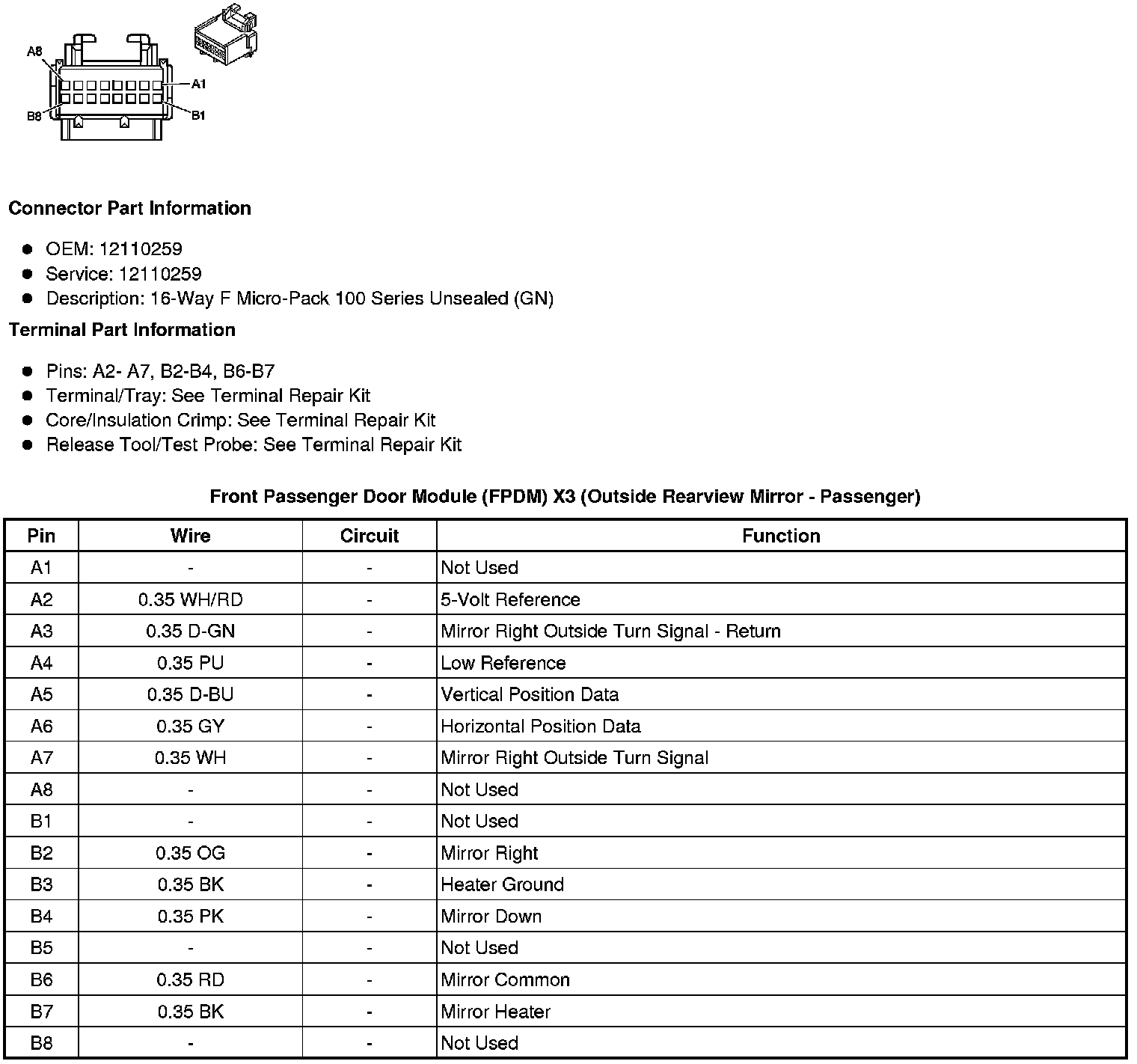

Front Passenger Door Module (FPDM) X3 (Outside Rearview Mirror - Passenger)
