Front Door Latch




Component Connector End Views

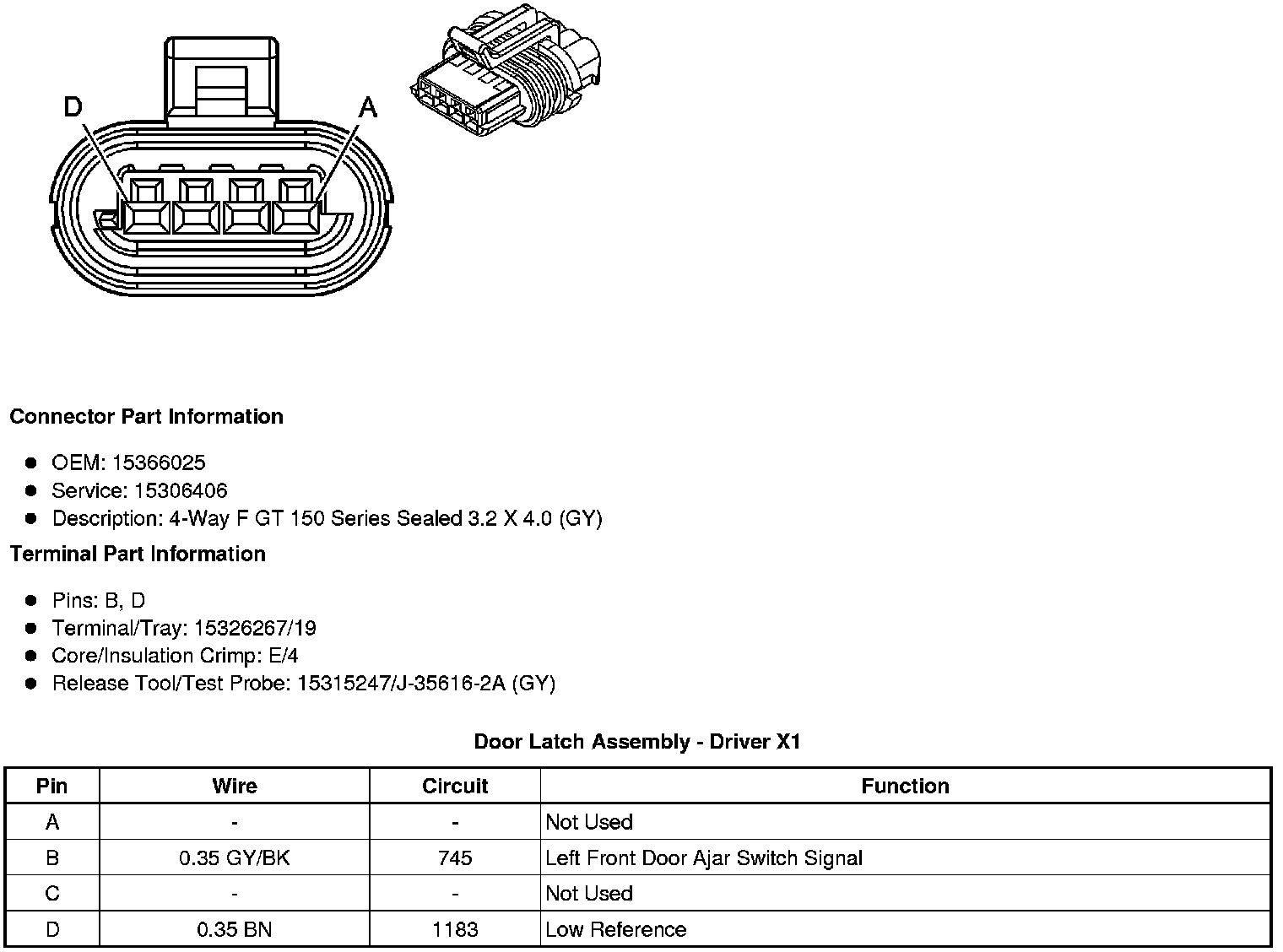

Door Latch Assembly - Driver X1





Door Latch Assembly - Driver X2





Door Latch Assembly - Driver X3

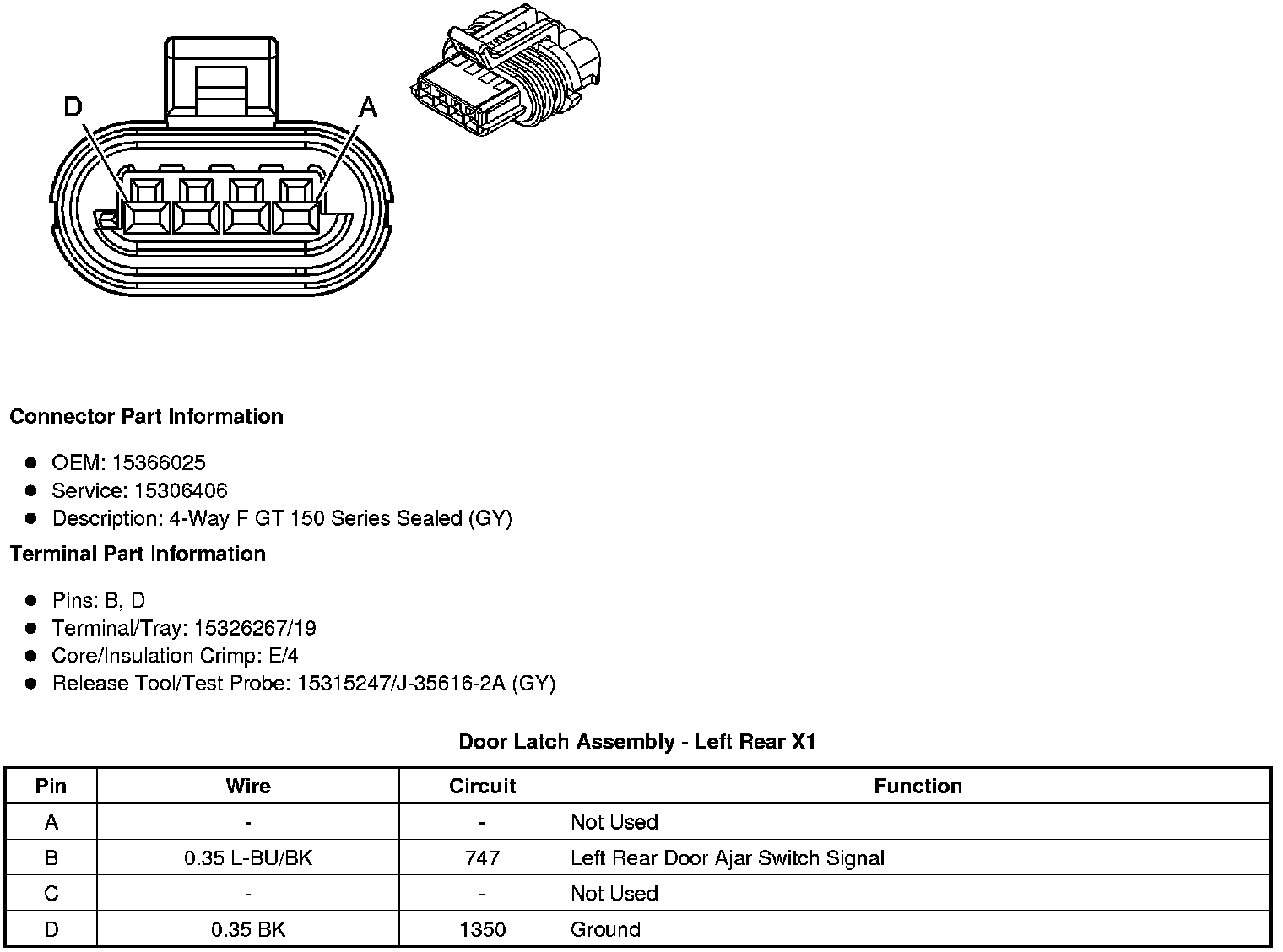

Door Latch Assembly - Left Rear X1





Door Latch Assembly - Left Rear X2





Door Latch Assembly - Passenger X1





Door Latch Assembly - Passenger X2





Door Latch Assembly - Right Rear X1





Door Latch Assembly - Right Rear X2
