Underhood Fuse Block




Electrical Center Identification Views

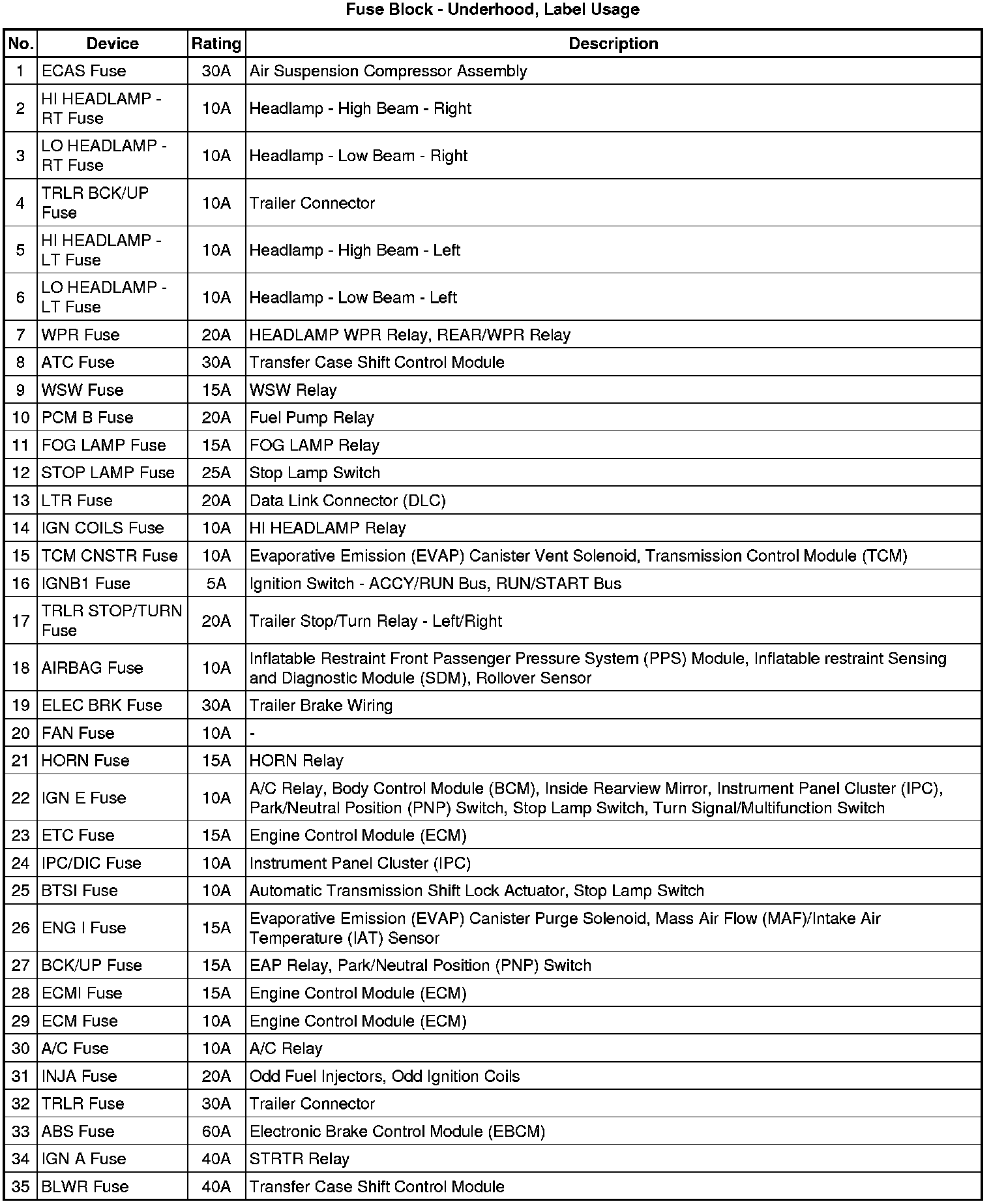

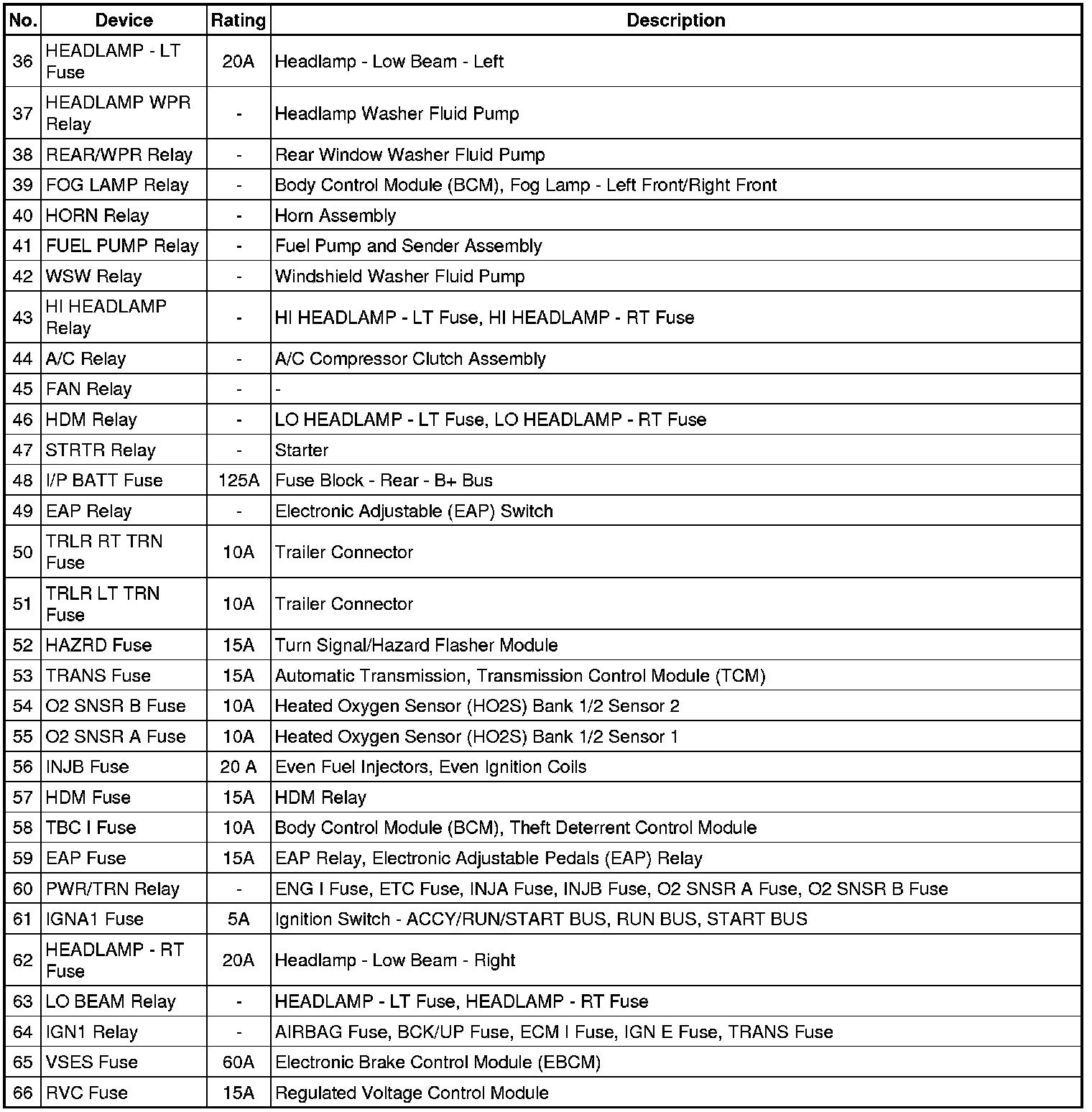

Fuse Block - Underhood, Label













Fuse Block - Underhood, Top View

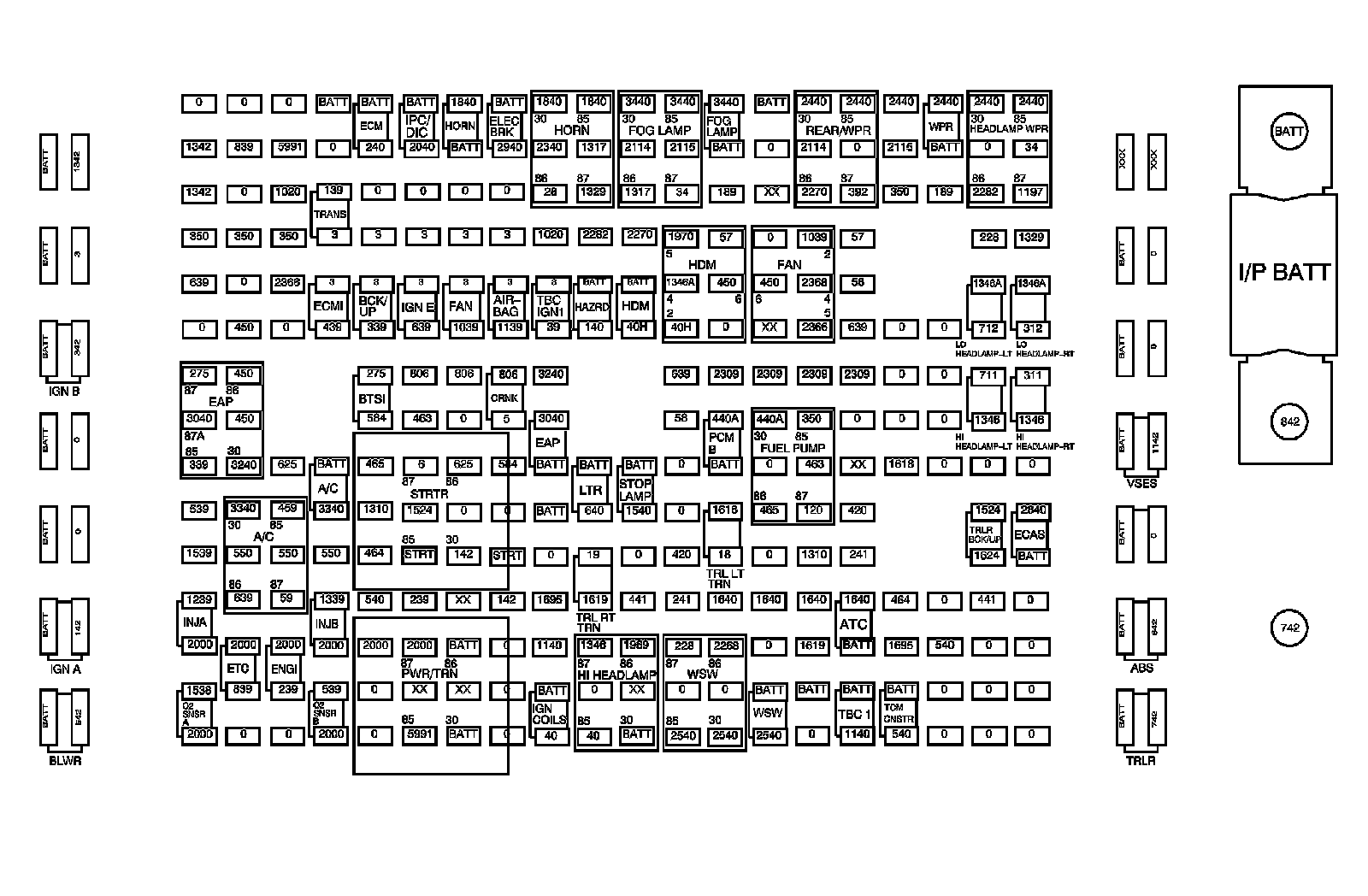

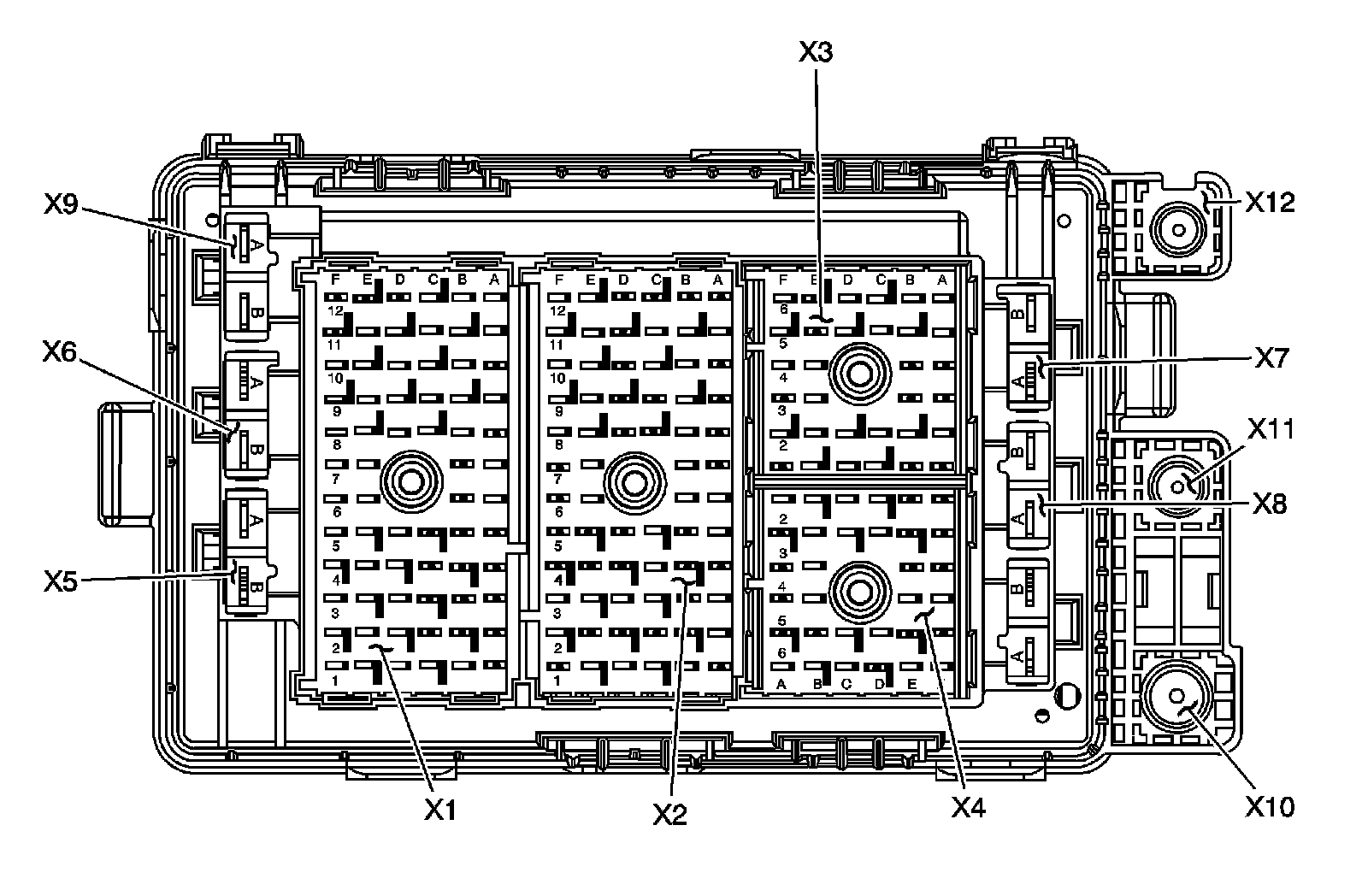

Fuse Block - Underhood, Bottom View

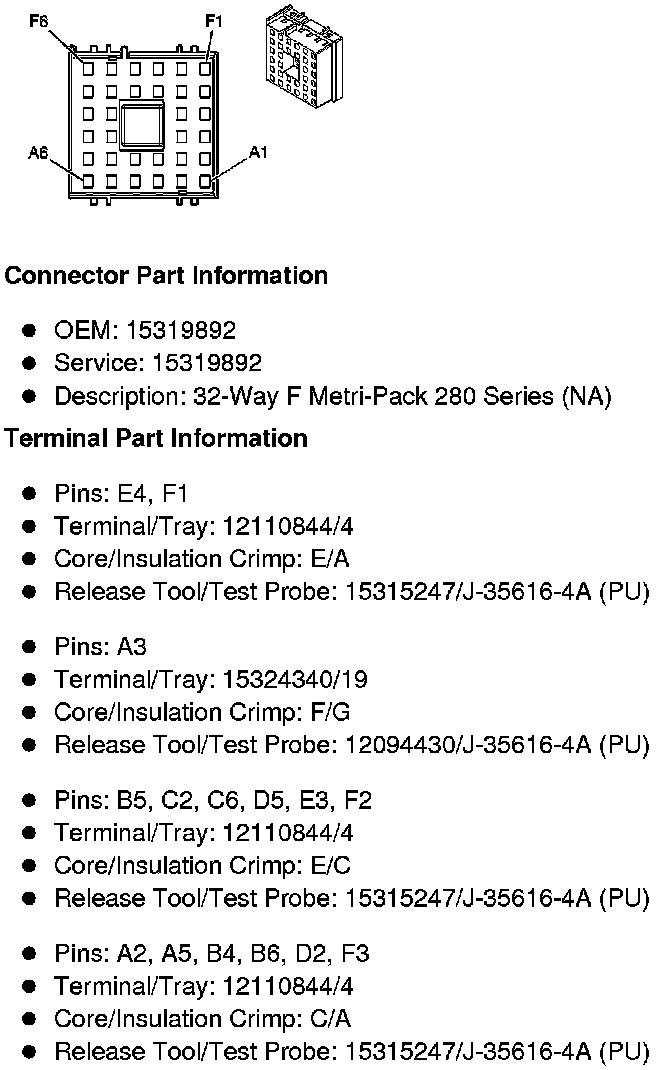

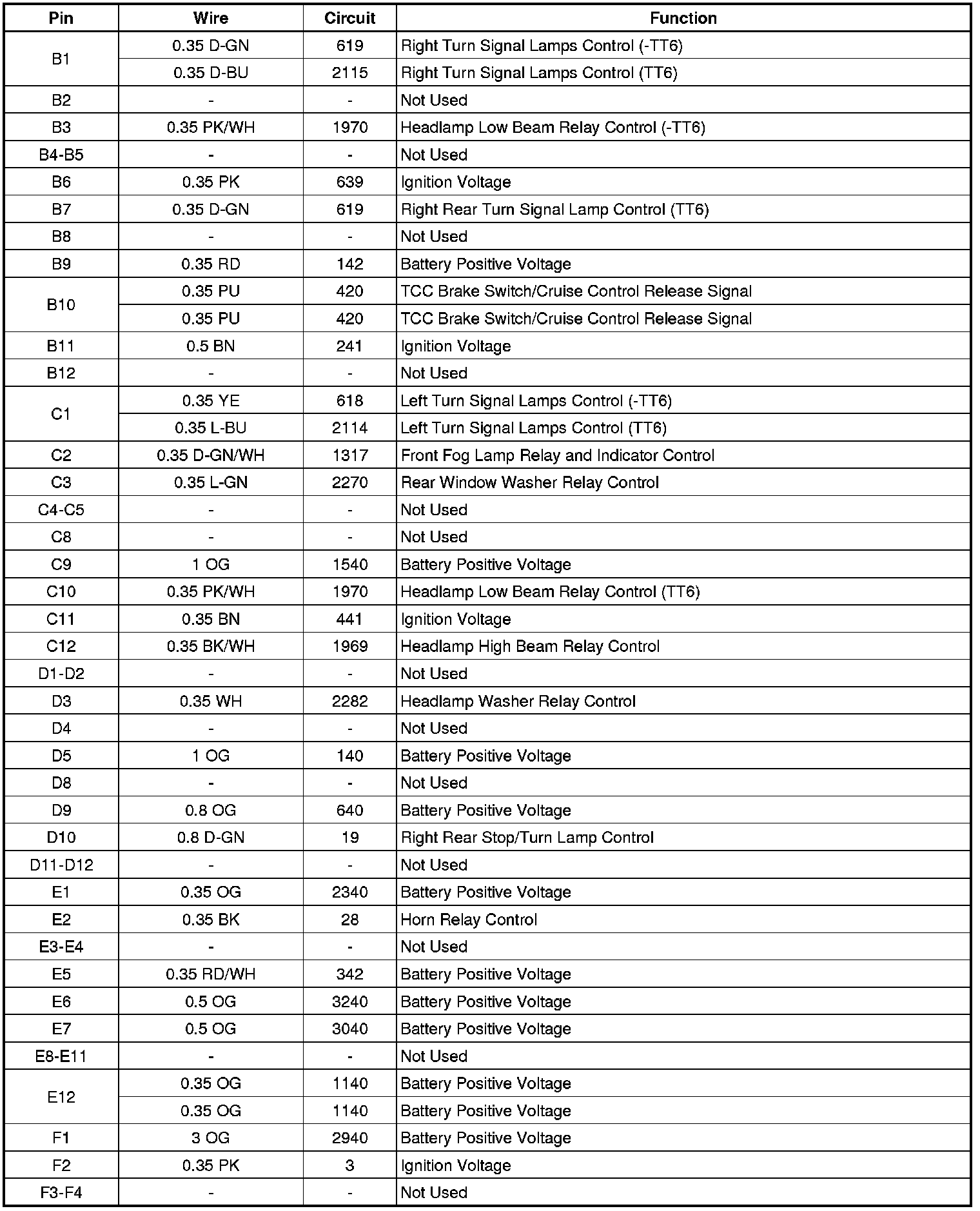

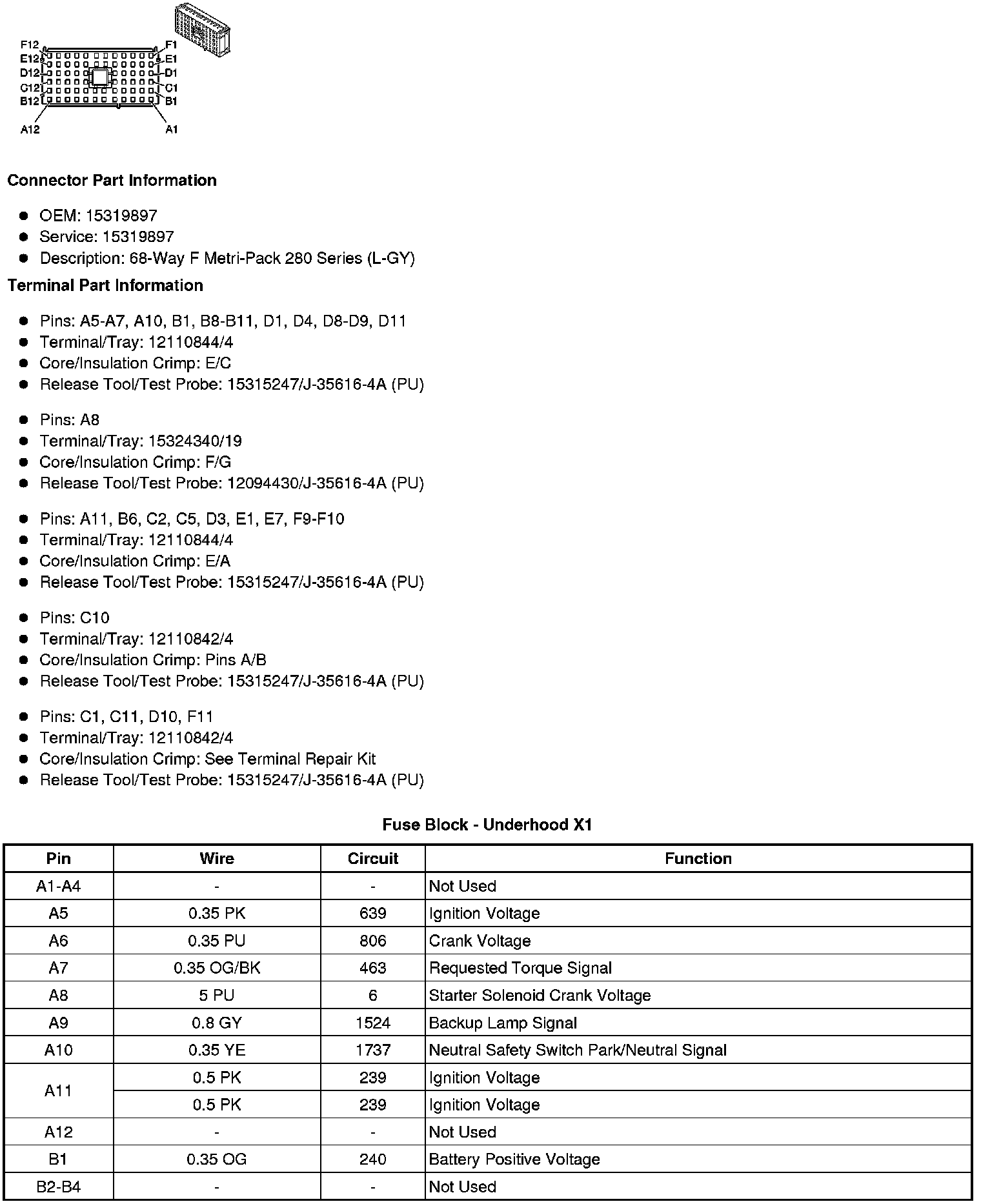

Fuse Block - Underhood X1

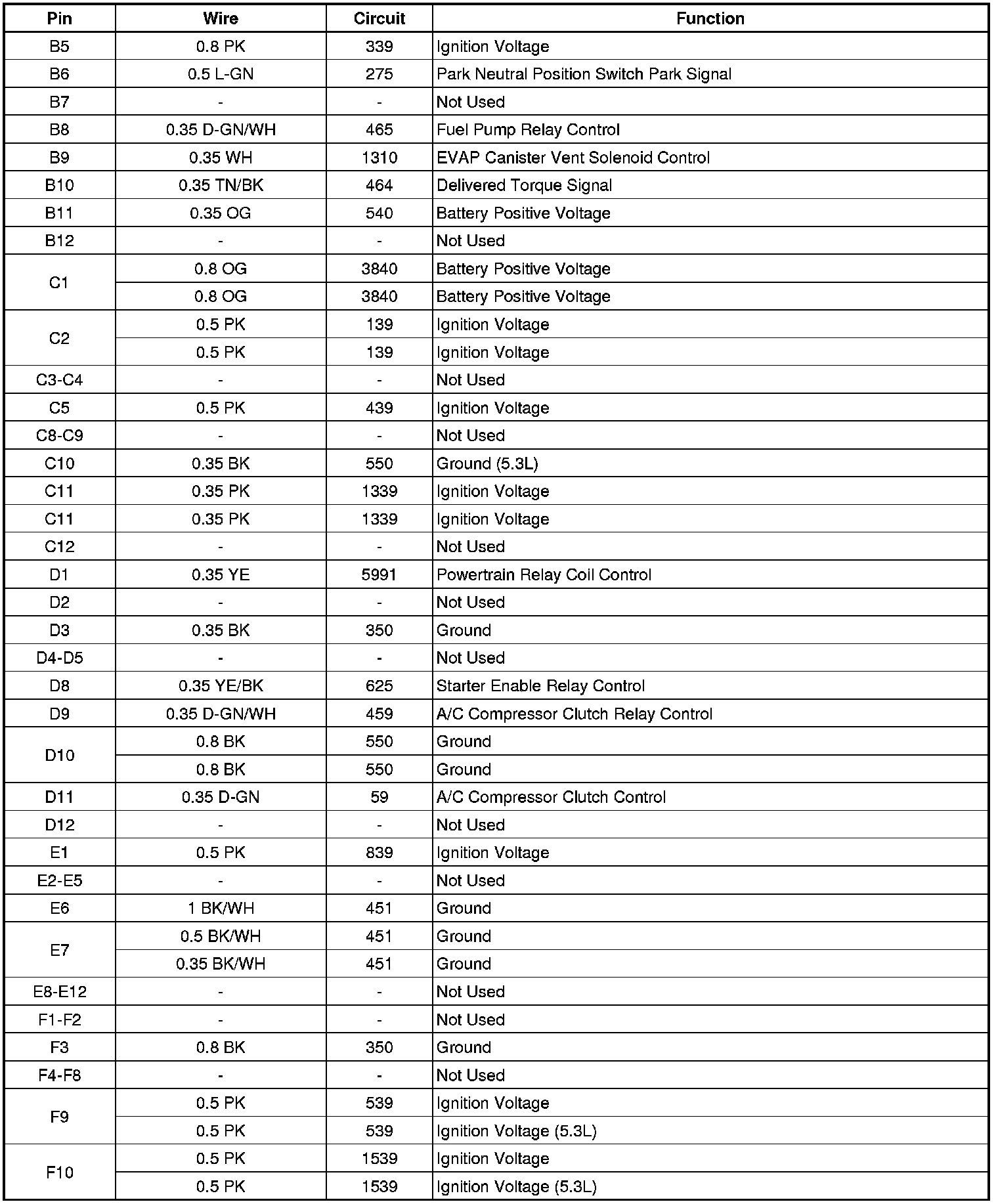

Fuse Block - Underhood X2

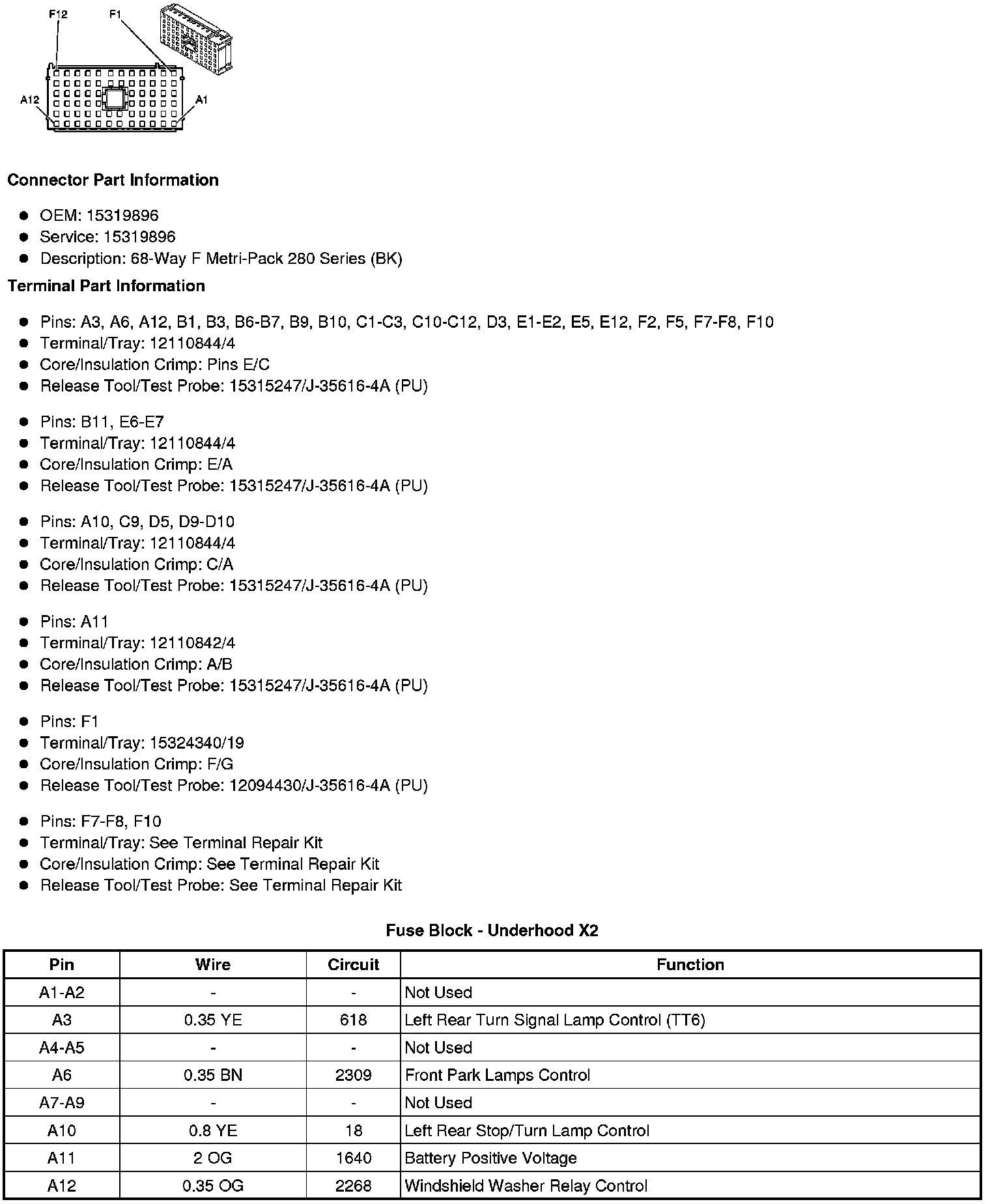

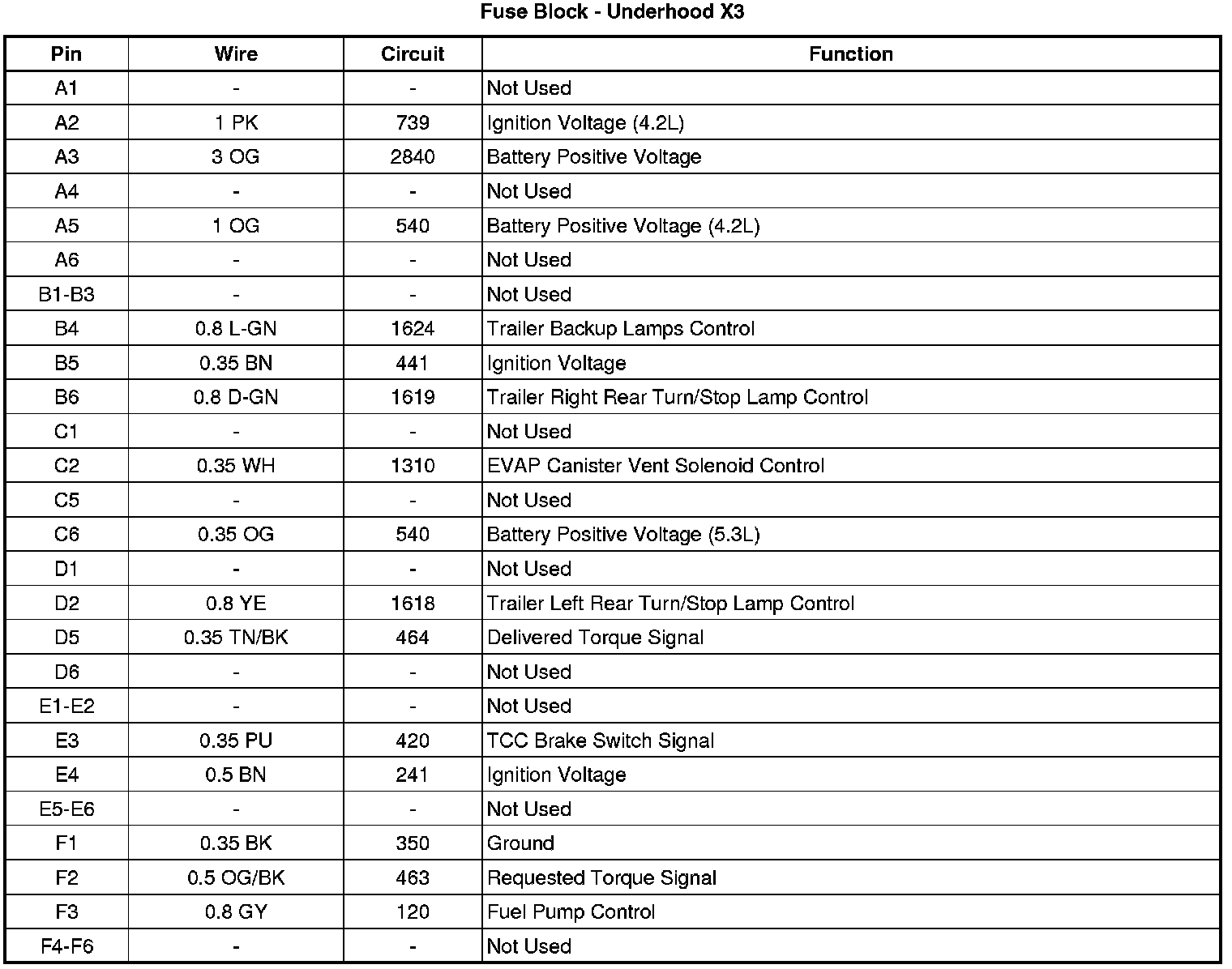

Fuse Block - Underhood X3

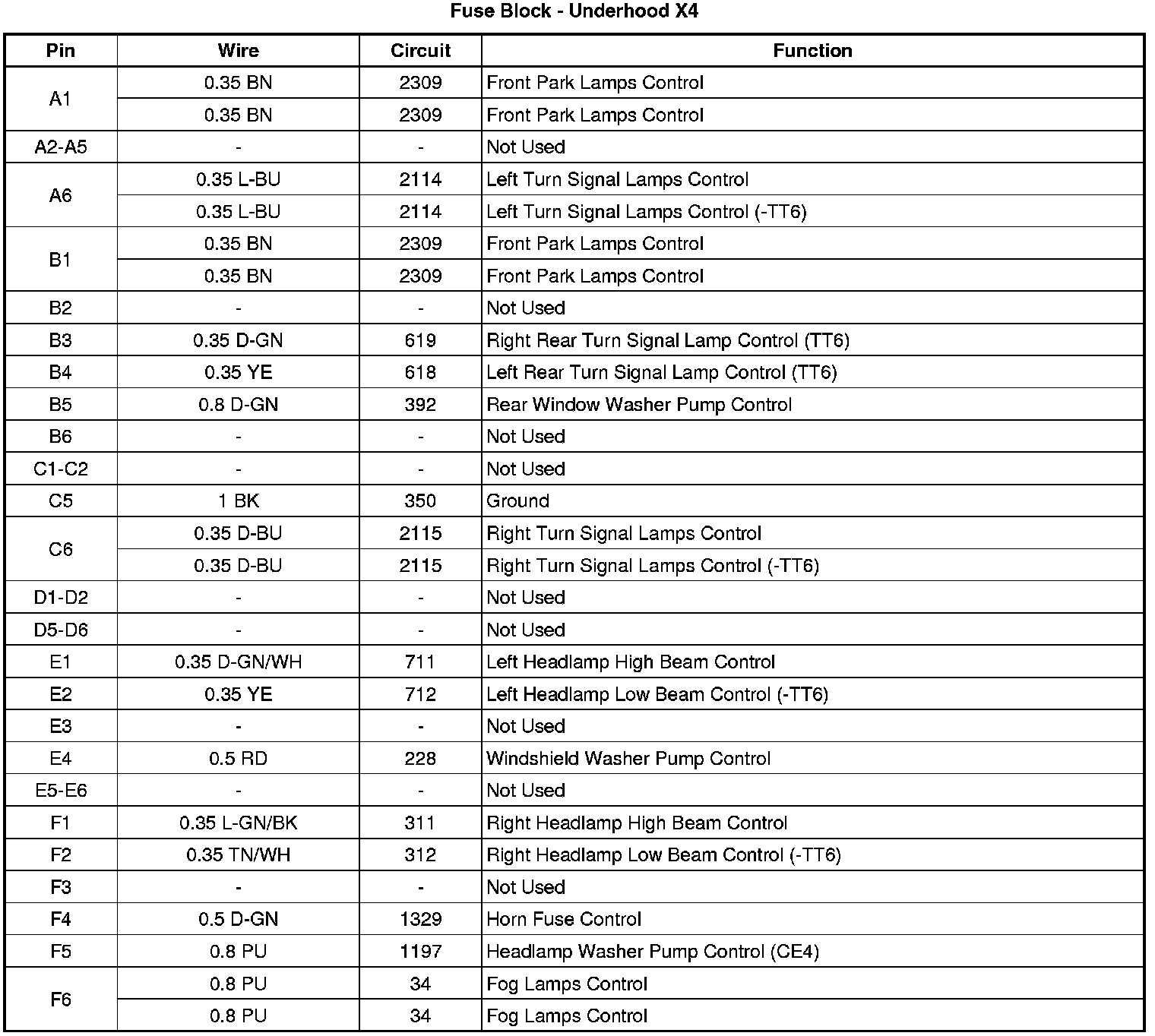

Fuse Block - Underhood X4









Fuse Block - Underhood X6 (TT6)





Fuse Block - Underhood X7





Fuse Block - Underhood X8





Fuse Block - Underhood X9





Fuse Block - Underhood X10 (Battery Positive Cable)
