Engine Controls Schematics 1




Engine Controls Schematics

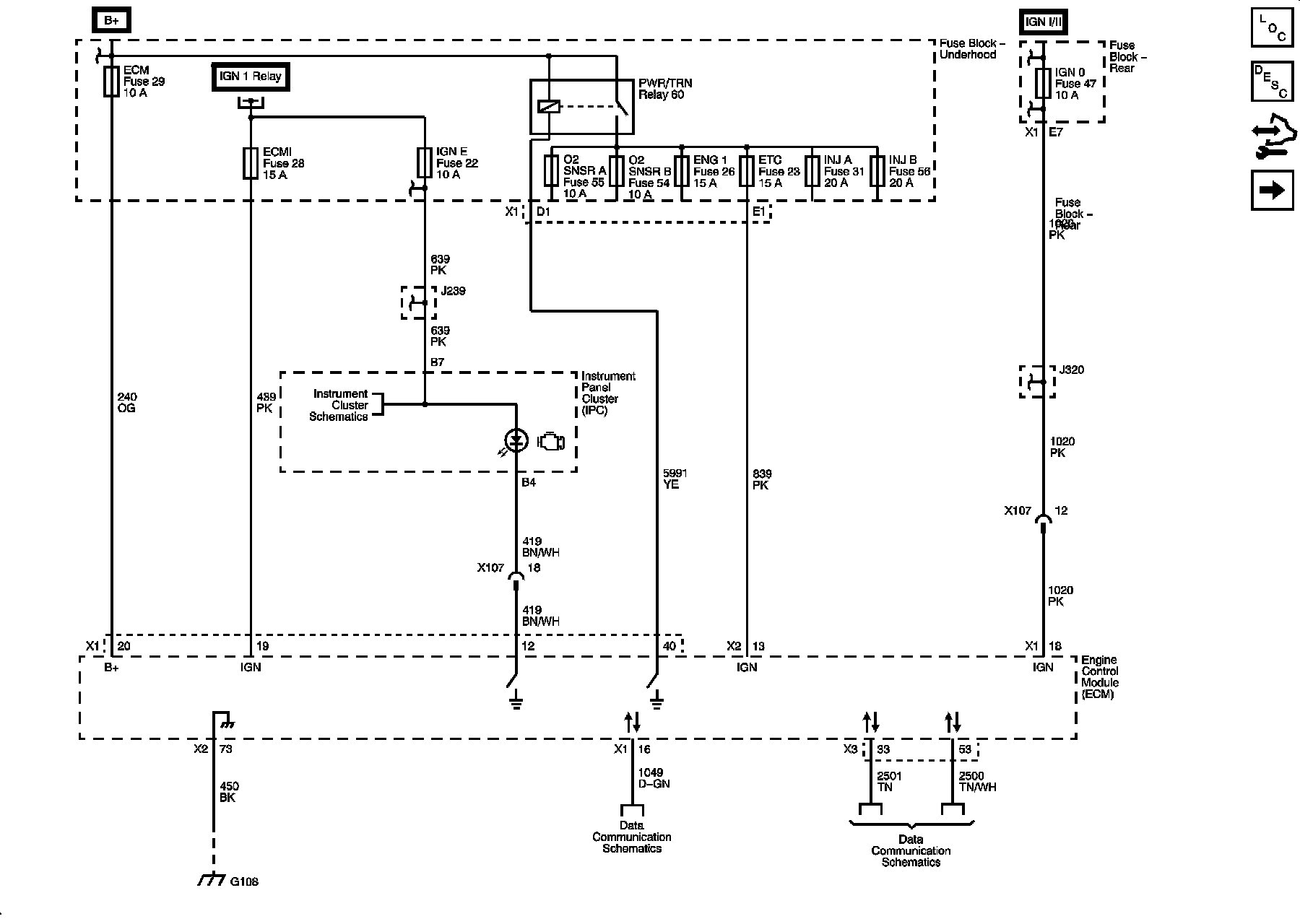

Module Power, Ground, Serial Data, and MIL
