Engine Controls Schematics 2




Engine Controls Schematics

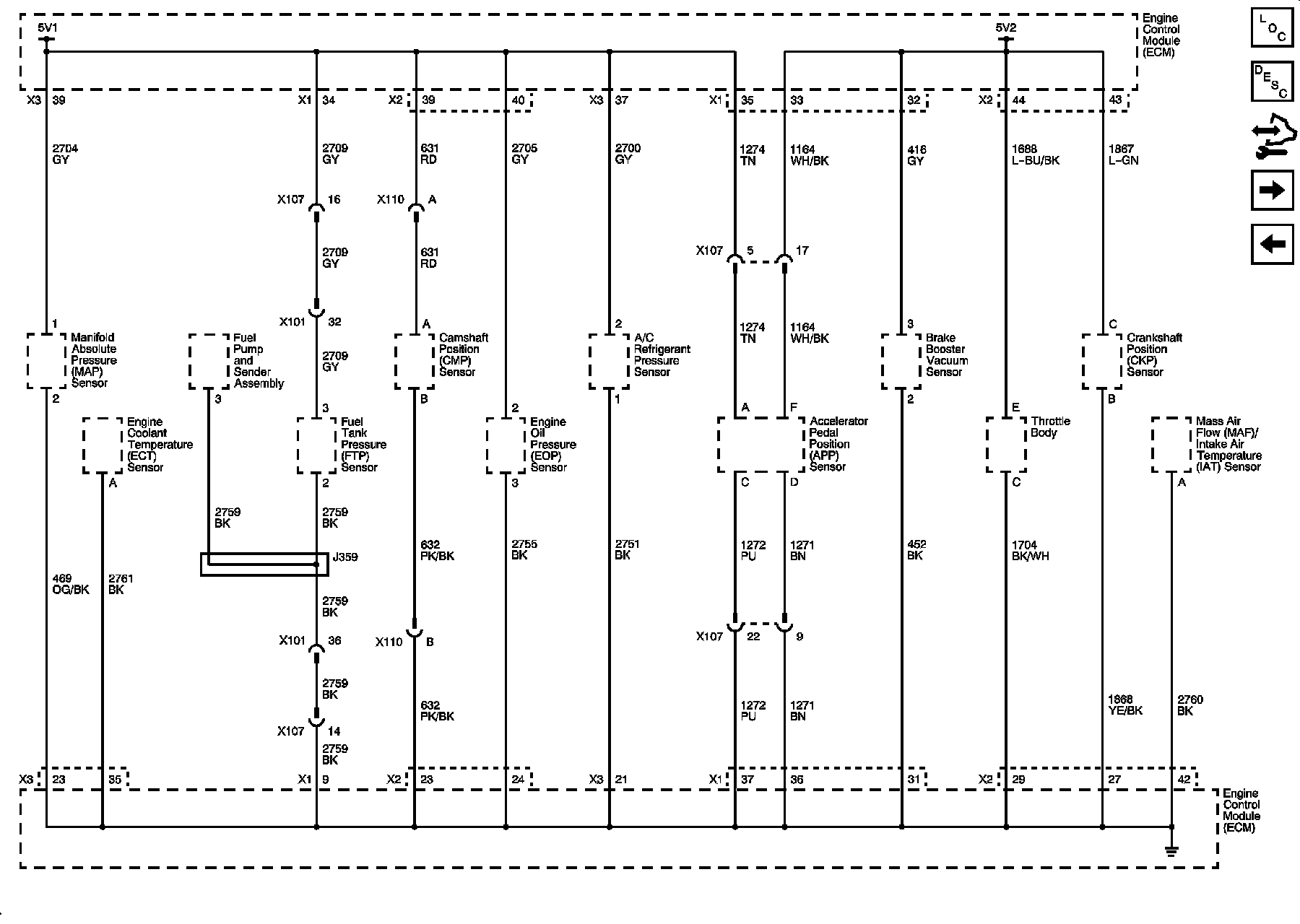

Engine Data Sensors - 5-Volt and Low Reference
