Adaptive Cruise Control

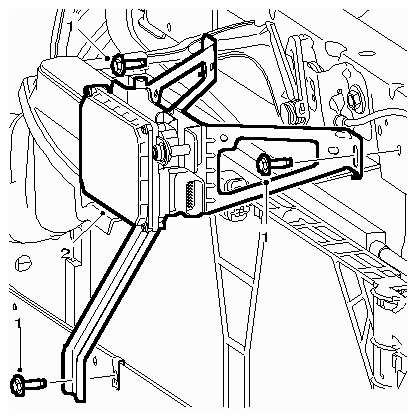

Fig 1: Identifying Adaptive Cruise Control Unit With Bracket And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the front bumper. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Fastener (qty: 3) Refer to FASTENER CAUTION . Tightening Torque 6.5 Nm (58 lb in)
2	Adaptive Cruise Control Unit with Bracket Procedure During installation, it is important that the unit is adjusted vertically. Check this with a spirit level. Position the spirit level on the front of the unit where the surface is flat. See CONTROL MODULE, REFERENCES for programming and setting the control module for adaptive cruise control. Perform automatic adjustment, learning process. Disconnect the scan tool and follow the instructions.
