Theft Deterrent Passenger Compartment Sensor Disable Switch Replacement

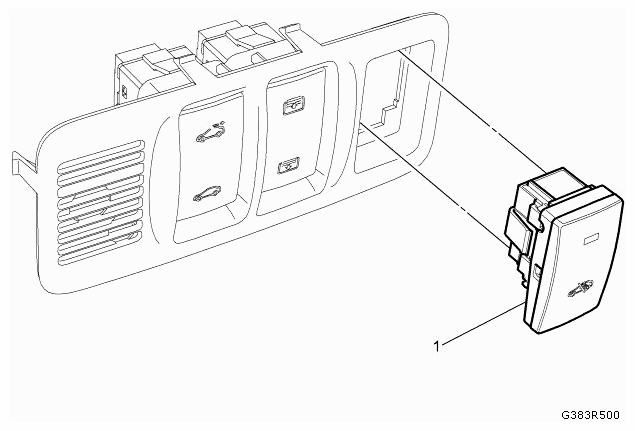

Fig 1: Identifying Theft Deterrent Passenger Compartment Sensor Disable Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the theft deterrent sensor opening cover. Refer to ROOF CONSOLE REPLACEMENT (ASSEMBLY) or ROOF CONSOLE REPLACEMENT (FRAME) .
1	Theft Deterrent Passenger Compartment Sensor Disable Switch Procedure  Unsnap the switch from the console.
