Steering Wheel Position Sensor Replacement

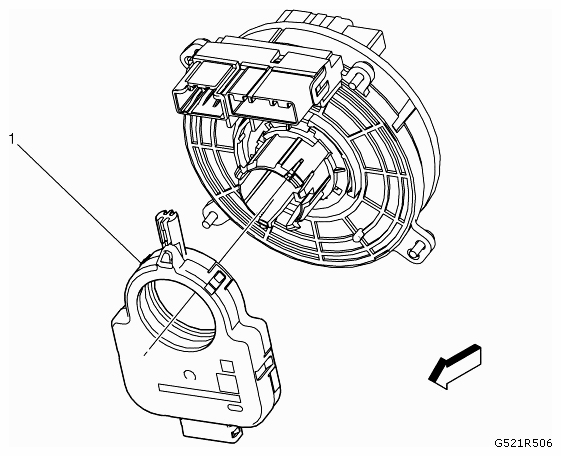

Fig 1: Identifying Steering Wheel Position Sensor
G09437429Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the steering wheel inflatable restraint module coil. Refer to STEERING WHEEL INFLATABLE RESTRAINT MODULE COIL REPLACEMENT .
1 Steering Wheel Position Sensor
Procedure
  1. Press in the clip on the inflatable restraint steering wheel module clock-spring coil to remove the sensor.
  2. After installation, center the steering angle sensor. Refer to STEERING ANGLE SENSOR CENTERING .
