Charging And Starting System: Wiring diagram: Starting: Notes

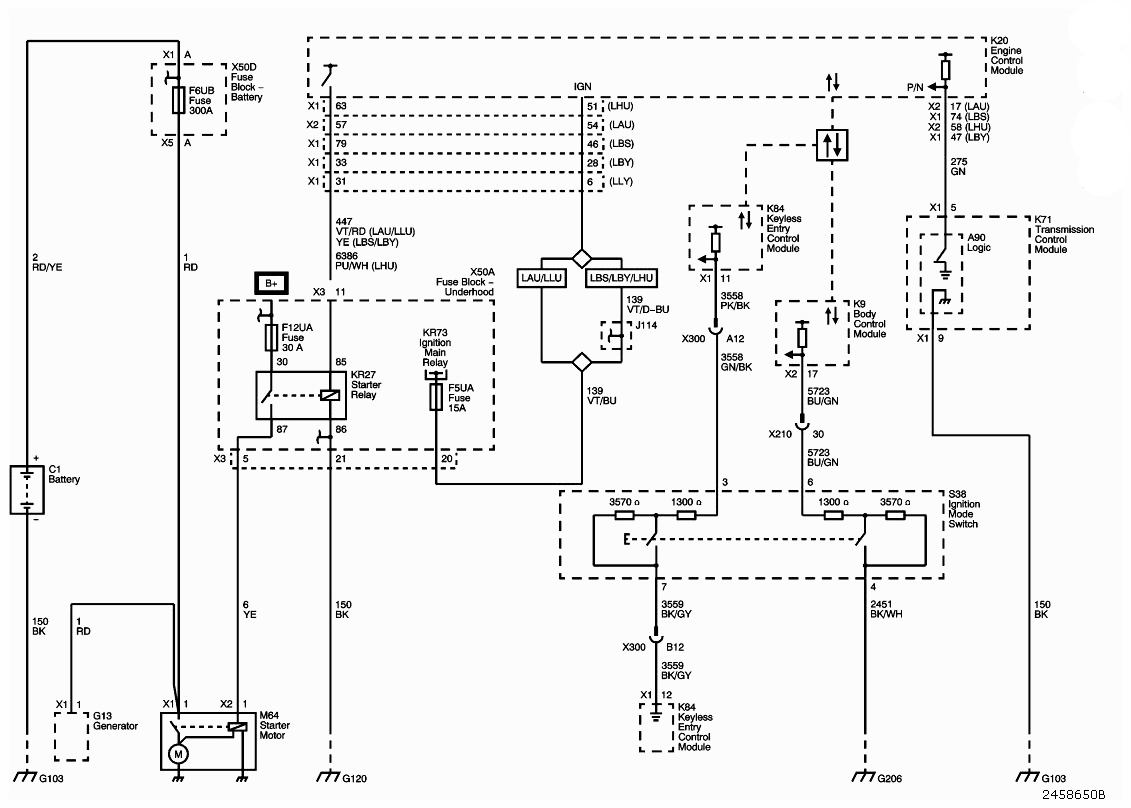

Fig 1: Starting - Wiring Diagram
G09435157Courtesy of SAAB-SCANIA OF AMERICA, INC.
