Brake Pedal Position Sensor Replacement

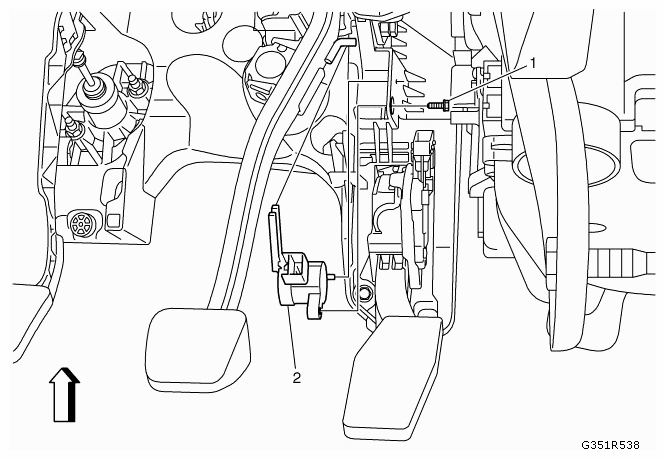

Fig 1: Identifying Brake Pedal Position Sensor And Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel insulator. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE .
1	Brake Pedal Position Sensor Bolt Refer to FASTENER CAUTION . Tighten 2 Nm (18 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Calibrate the brake pedal position sensor. Refer to BRAKE PEDAL POSITION SENSOR CALIBRATION .
