Front Fog Lamp Replacement

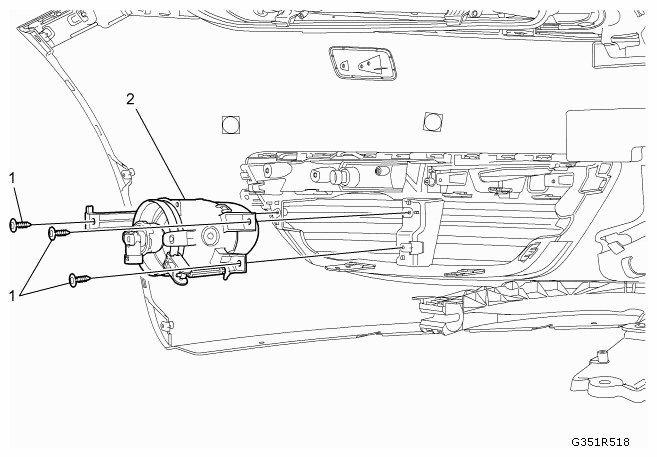

Fig 1: Identifying Front Fog Lamp And Screws
G09435202Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the front compartment splash shield. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT .
1 Front Fog Lamp Screw (Qty: 2)
Refer to FASTENER CAUTION .
Tighten
2.5 Nm (22 lb in)
2 Front Fog Lamp
Procedure
Remove the electrical connector.
