Headlamp Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel headlamp switch molding. Refer to HEADLAMP SWITCH MOLDING REPLACEMENT . |
|

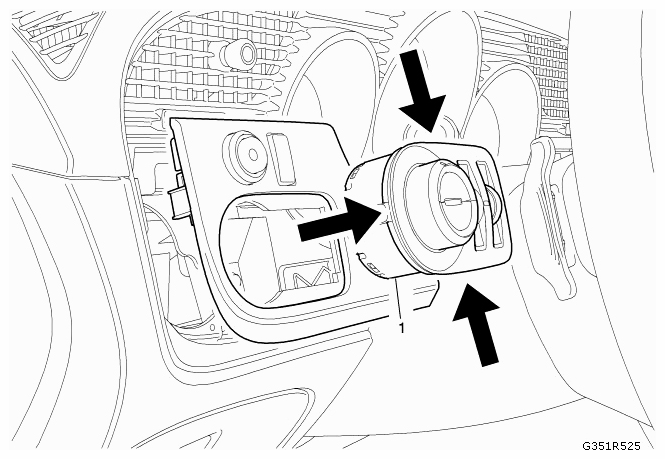

| 1 | Headlamp Switch Procedure Disconnect the electrical connector.
NOTE:
Use a flat-bladed plastic trim tool in order to release the retaining clips.
|
