High-Level Brake Light, Replacement 4D

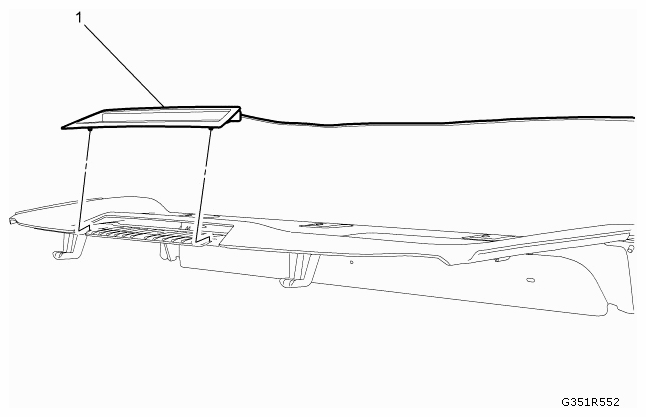

Fig 1: Identifying High Mount Stop Lamp Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim assembly. Refer to PARCEL SHELF, REPLACEMENT
1	High Mount Stop Lamp Assembly Procedure Carefully remove the retainer (Qty 2) from the rear window shelf panel trim cover. Carefully remove the electrical harness from the underside of the rear window panel trim. Remove the high mount stop lamp assembly and electrical harness as one.
