Reading Lamp Replacement

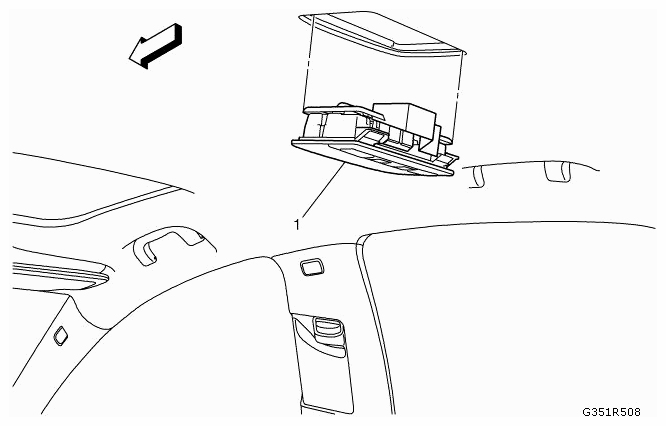

Fig 1: Identifying Reading Lamp
G09435168Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Reading Lamp
Procedure
Disconnect the electrical connector.
NOTE: Carefully use a flat-bladed tool, release the retainer from the reading lamp to the headliner.
