Lighting And Signaling Systems: Wiring diagram: Indicators: Notes

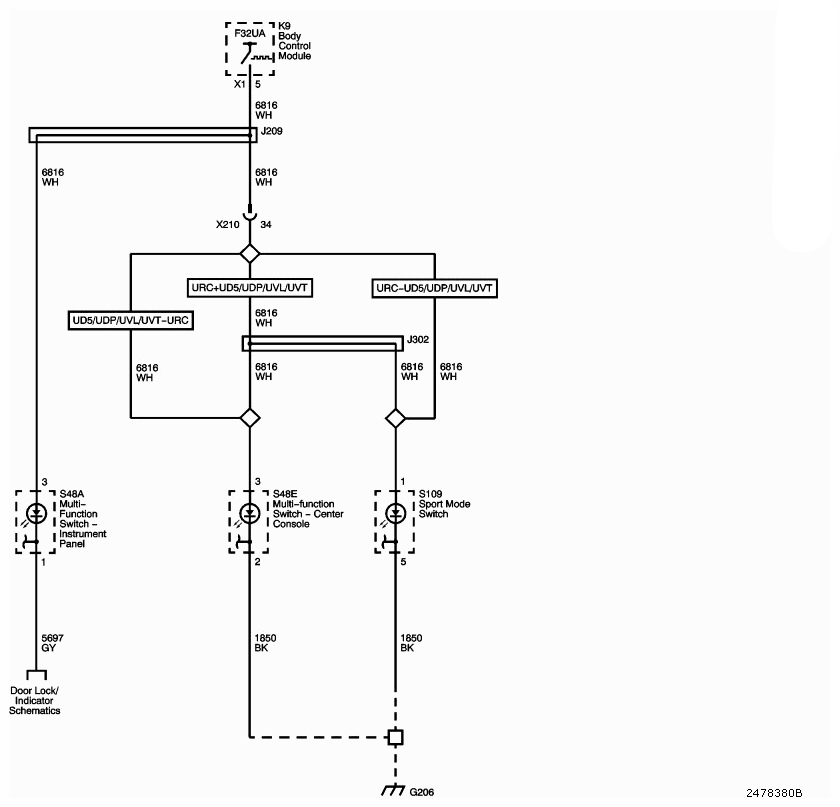

Fig 1: Indicators - Wiring Diagram
G09435236Courtesy of SAAB-SCANIA OF AMERICA, INC.
