Engine Flywheel Installation

Special Tools

• EN-45059  Angle Meter
• EN 46106  Flywheel Holding Tool

1. Place the engine flywheel in position on the crankshaft.
2. Install 2 NEW bolts in location at the top and bottom of the engine flywheel bolt pattern allowing the engine flywheel to hang in position.
3. Install the EN 46106  tool.

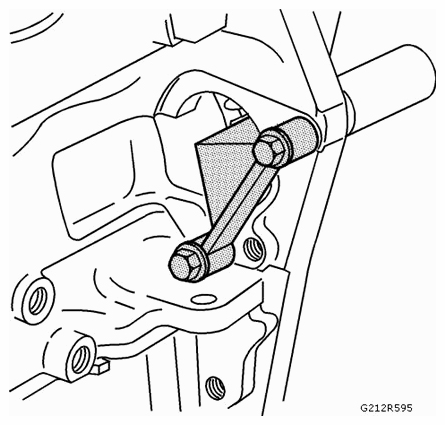

   Fig 1: Identifying Tool (EN 46106)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Refer to FASTENER CAUTION .

   Install the remaining NEW engine flywheel bolts.

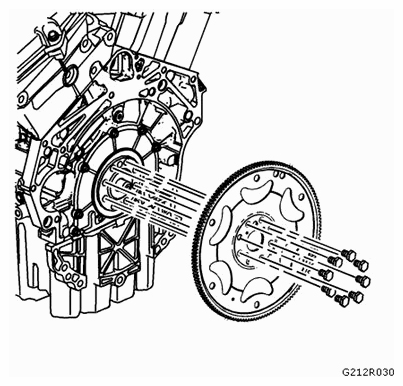

   Fig 2: Identifying Engine Flywheel Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   1. 4.1. Tighten the NEW engine flywheel bolts to 30 Nm (22 lb ft)  .
   2. 4.2. Tighten the NEW engine flywheel bolts an additional 45 degrees  using the EN 45059  meter.
5. Remove the EN 46106  tool.

Fig 3: Identifying Tool (EN 46106)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
