Engine Front Cover Assemble

Special Tools

  1. IMPORTANT: Do not lubricate the crankshaft front oil seal or the crankshaft balancer sealing surfaces. The crankshaft balancer is installed into a dry seal.

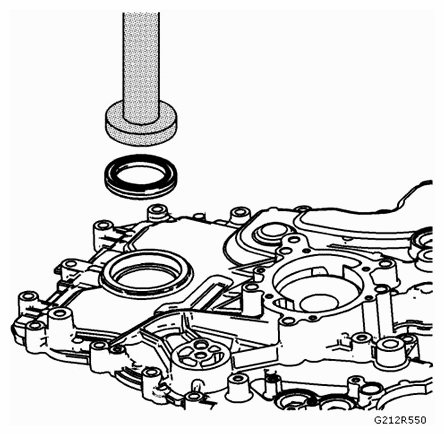

    Install the NEW crankshaft front oil seal into the engine front cover using the EN 29184  installer.

    Fig 1: Installing Crankshaft Front Oil Seal To Engine Front Cover Using Tool
    G09438895Courtesy of SAAB-SCANIA OF AMERICA, INC.

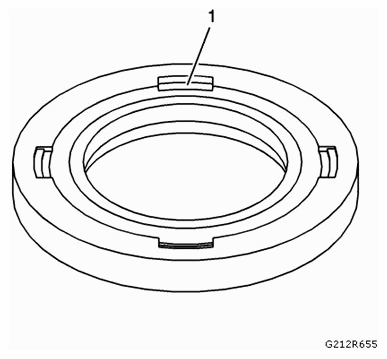

  2. Place the seal into position with the notches (1) in the seal down. The notches (1) will face inboard when properly installed.
    Fig 2: Identifying Oil Seal Installation Position
    G09438896Courtesy of SAAB-SCANIA OF AMERICA, INC.

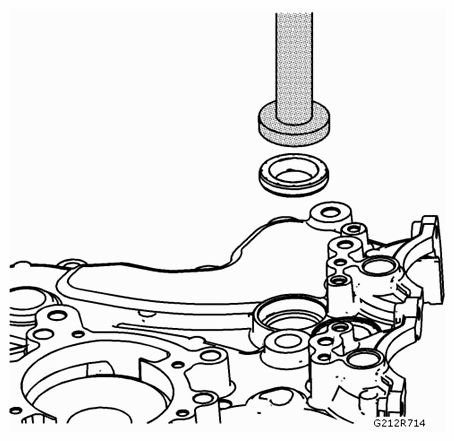

  3. Install the NEW camshaft position actuator valve oil seals into the engine front cover using the EN 46103  installer.
    Fig 3: Installing Camshaft Position Actuator Valve Oil Seals Using Tool
    G09438897Courtesy of SAAB-SCANIA OF AMERICA, INC.
