Primary Timing Chain Guide Installation - Upper

1. Ensure the upper primary camshaft drive chain guide (3) is being installed.

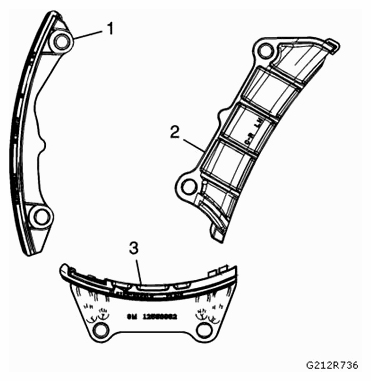

   Fig 1: Identifying Upper Primary Camshaft Drive Chain Guide Related Components

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Install the upper primary camshaft drive chain guides.

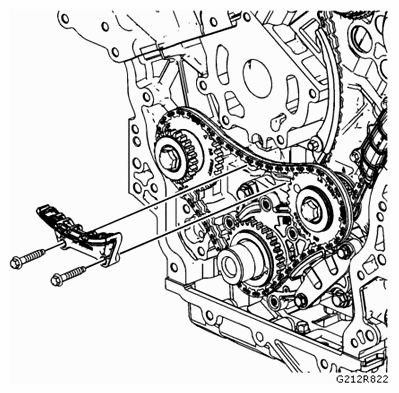

   Fig 2: Identifying Upper Primary Camshaft Drive Chain Guides And Mounting Bolt

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Refer to FASTENER CAUTION .

Install the upper primary camshaft drive-chain lower guide-bolts and tighten to 25 Nm (18 lb ft)  .
