Measurement Procedure

  1. Measure the valve spring tension using the EN 22738-B  tester. Refer to Engine, Mechanical Specifications (LAU) .

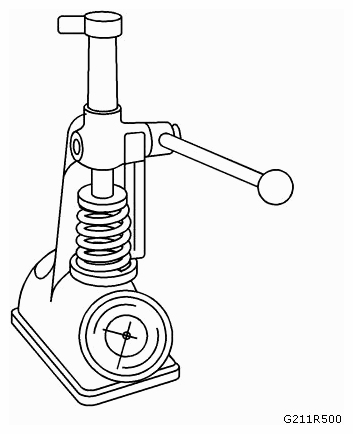

    Fig 1: Measuring Valve Spring Tension Using Tool
    G09438806Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. If a low valve spring loading is observed, the valve springs must be replaced. Do not use a shim to increase the spring loading. The use of shims can cause the valve spring to bottom out before the camshaft lobe is at peak lift.
