Fuel Tank Pressure Sensor Replacement

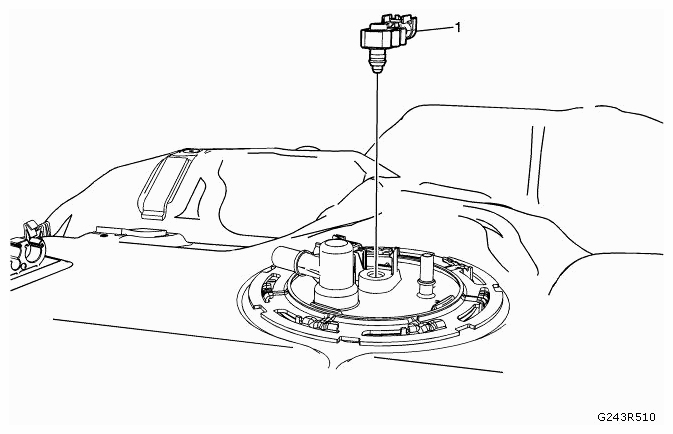

Fig 1: Identifying Fuel Tank Pressure Sensor
G09407885Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to FUEL TANK REPLACEMENT .
1 Fuel Tank Pressure
Procedure
  1. Disconnect the electrical connector.
  2. Release the retaining tab.
