Power Steering Pump Replacement (L4)

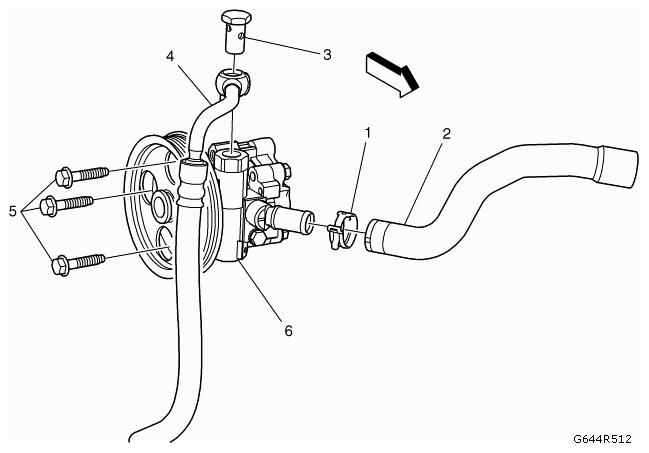

Fig 1: Identifying Power Steering Pump Related Components (L4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Remove the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the drive belt. Refer to DRIVE BELT REPLACEMENT . Place drain pans under the vehicle. Remove as much power steering fluid from the remote power steering fluid reservoir as possible. Petrol: Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
1	Clamp return line fluid reservoir power steering system
2	Return line fluid reservoir power steering system Procedure Install a NEW power steering gear inlet hose O-ring seal prior to installation of the hose.
3	Banjo screw for power steering gear delivery line Refer to FASTENER CAUTION . Procedure Install 2 NEW seals on the delivery line. Tighten 37.5 Nm (28 lb ft)
4	Delivery line for power-assisted steering gear
5	Power Steering Pump Bolt (Qty: 3) Tighten 21 Nm (16 lb ft)
6	Power Steering Pump Refer to USING PROPER POWER STEERING FLUID CAUTION . Procedure Clean any excess power steering fluid from the vehicle. Fill and bleed the power steering system. Refer to POWER STEERING SYSTEM BLEEDING .
