Preliminary Procedure
- Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
.
- Remove the left front wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
.
- Remove the engine shield. Refer to ENGINE SHIELD REPLACEMENT
.
- Remove the transaxle oil cooler lines and seals from the transaxle. Refer to TRANSMISSION FLUID COOLER HOSE REPLACEMENT .
|
| 1 |

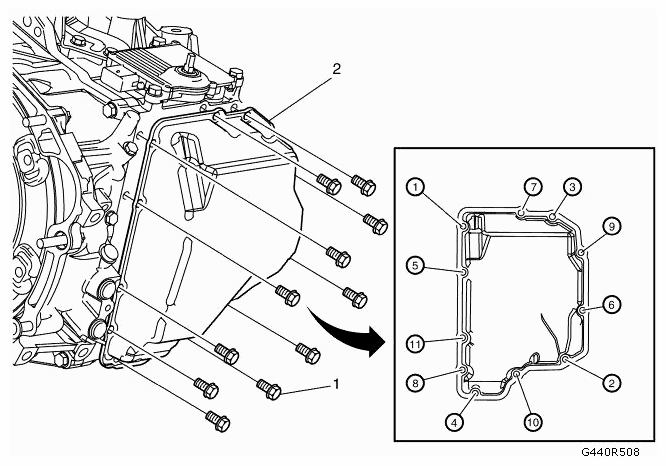

Control Valve Body Fastener (Qty: 11)
Refer to FASTENER CAUTION
.
Procedure
- Install the control valve body cover bolts hand tight. Use locking agent on ALL bolts. Refer to ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS .
- Tighten the control valve body cover bolts in the sequence shown.
Tighten
13 Nm (10 lb ft) |
| 2 |
Control Valve Body Cover
Procedure
- Install a 3 mm (0.125 in) bead of RTV sealer on to the control valve body cover.
- Clean any gasket material from the control valve body cover and inspect the gasket mounting surface.
- Check the transaxle fluid level. Refer to TRANSMISSION FLUID LEVEL AND CONDITION CHECK .
NOTE:
Do not pry with a tool on the transaxle control valve body cover, case or sealing surfaces.
|
