Transmission Control Lever Knob Replacement

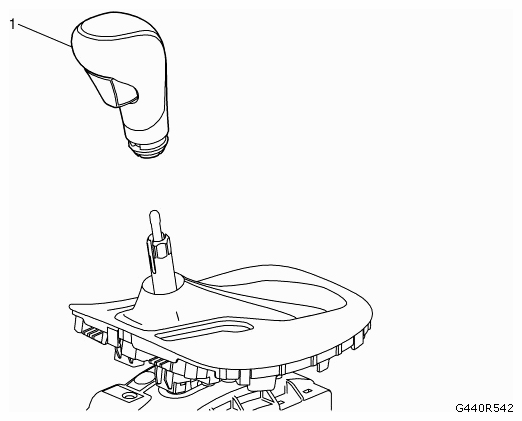

Fig 1: Identifying Transmission Control Lever Knob
G09435407Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the lever boot from the control lever. Refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT .
1 Transmission Control Lever Knob
Procedure
Undo the clamp from the lever by pressing from the side. The catch is located on the left side of the lever and is not visible.
