Transmission Front Mount Replacement

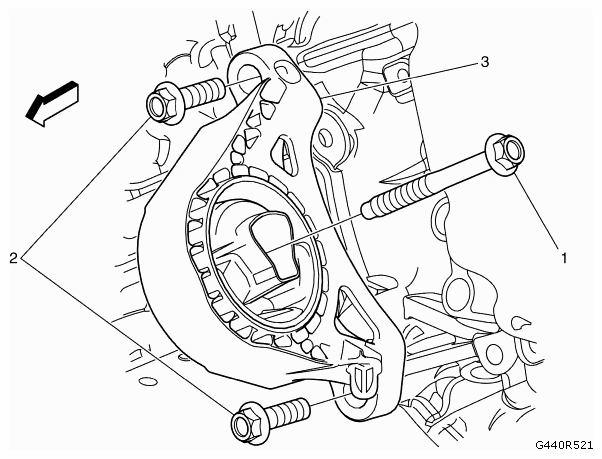

Fig 1: Identifying Transmission Front Mount And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the engine shield. Refer to ENGINE SHIELD REPLACEMENT . Using a suitable jack stand, support the transmission.
1	Transmission Front Mount Fastener Refer to FASTENER CAUTION . Tighten 100 Nm (74 lb ft)
2	Transmission Front Mount Fastener (Qty: 2) Tighten 100 Nm (74 lb ft)
3	Transmission Front Mount
